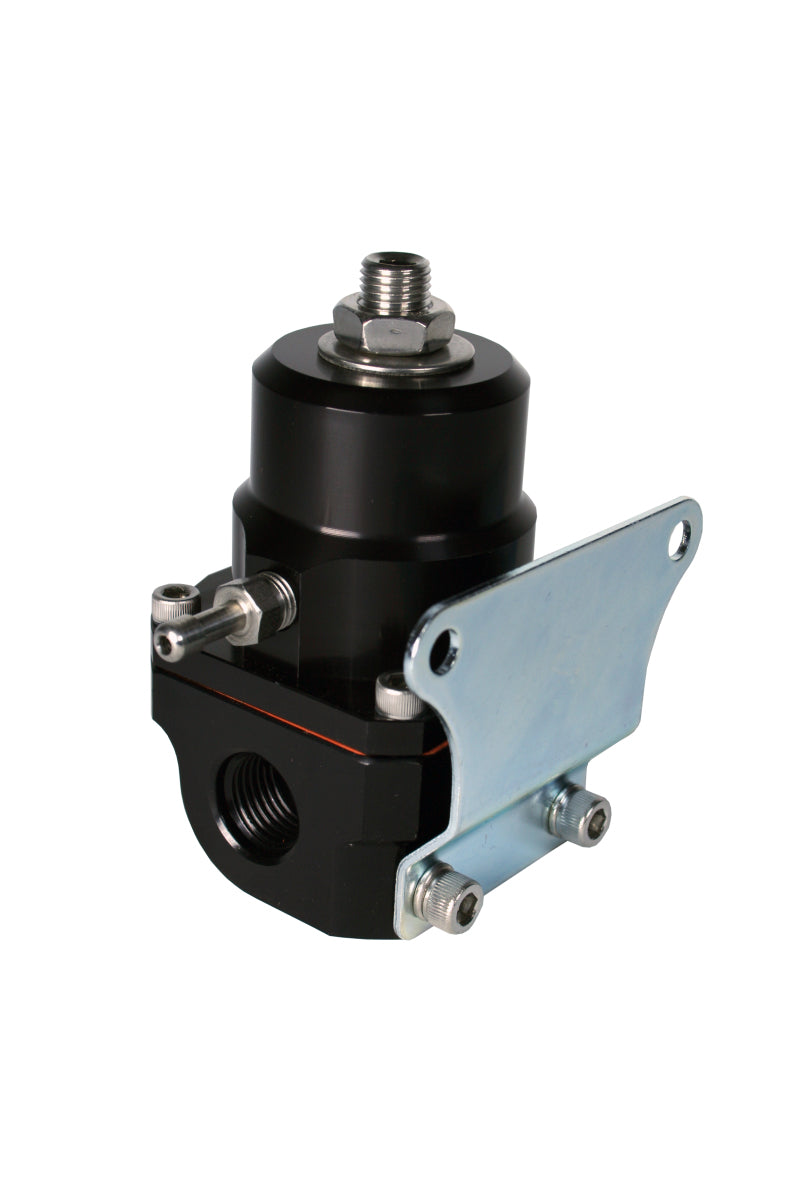

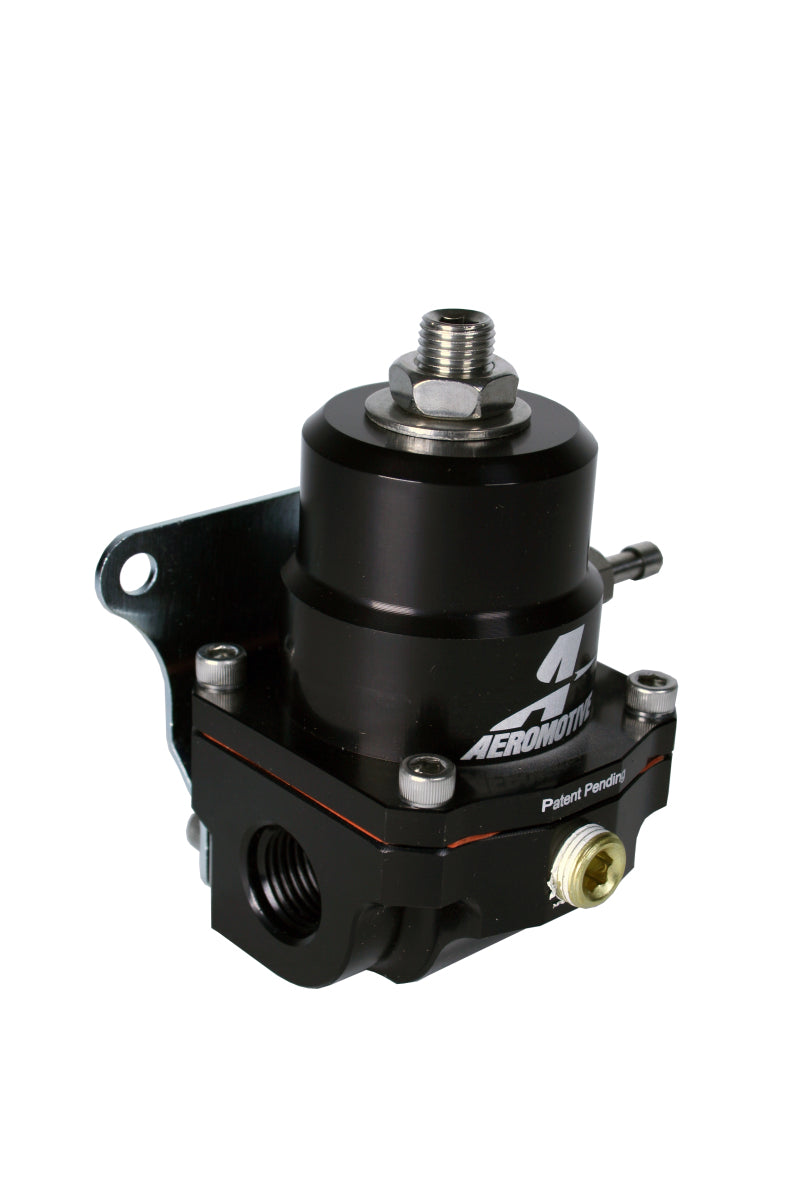

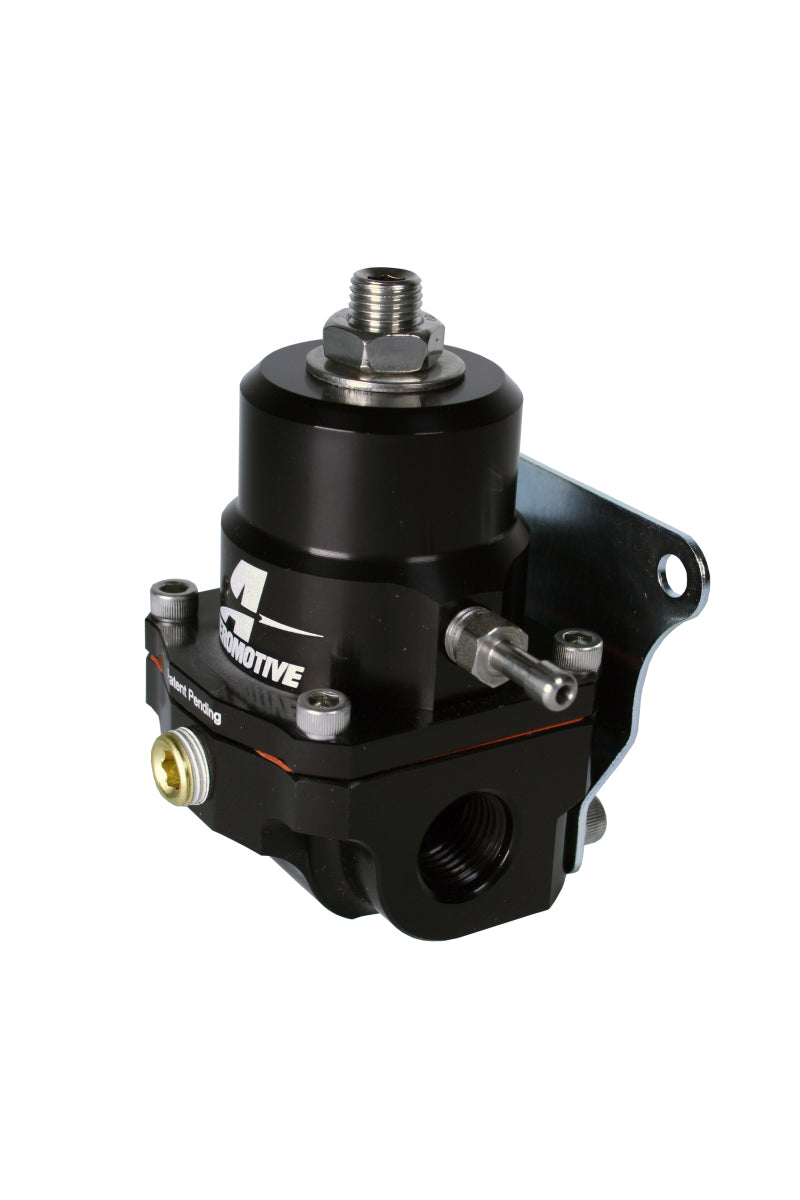

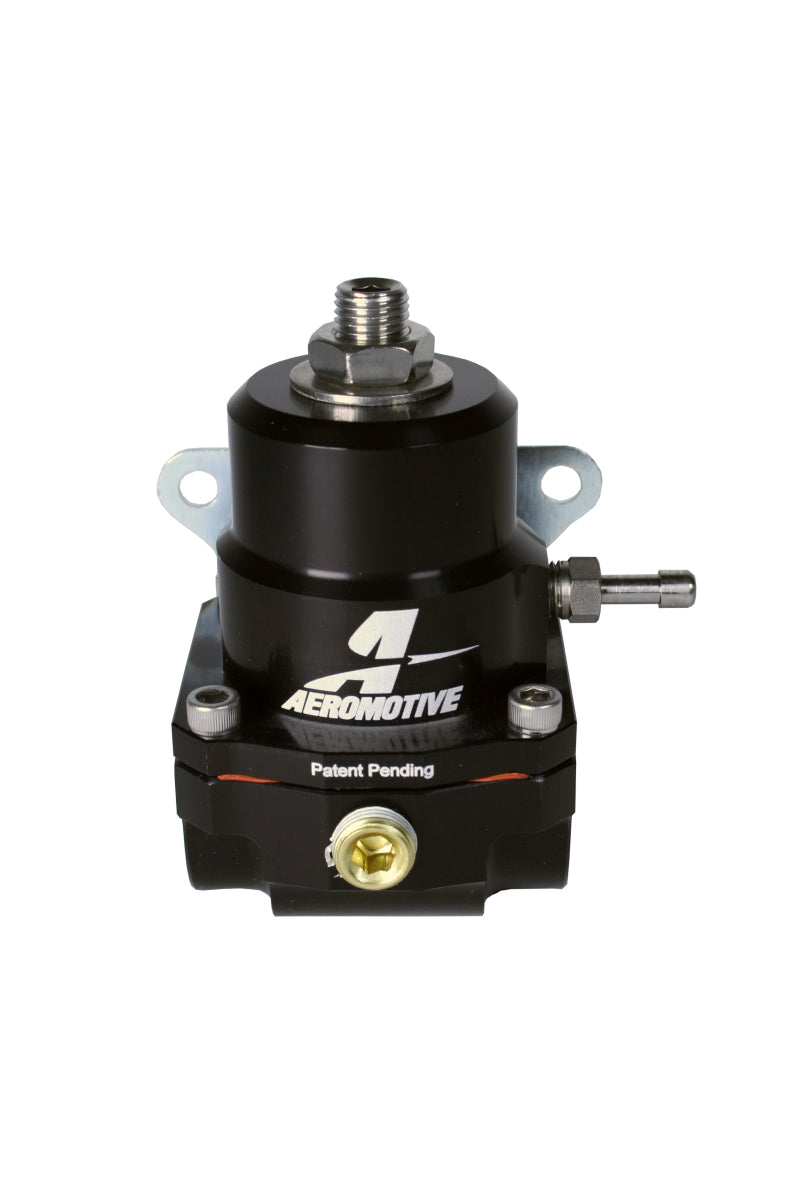

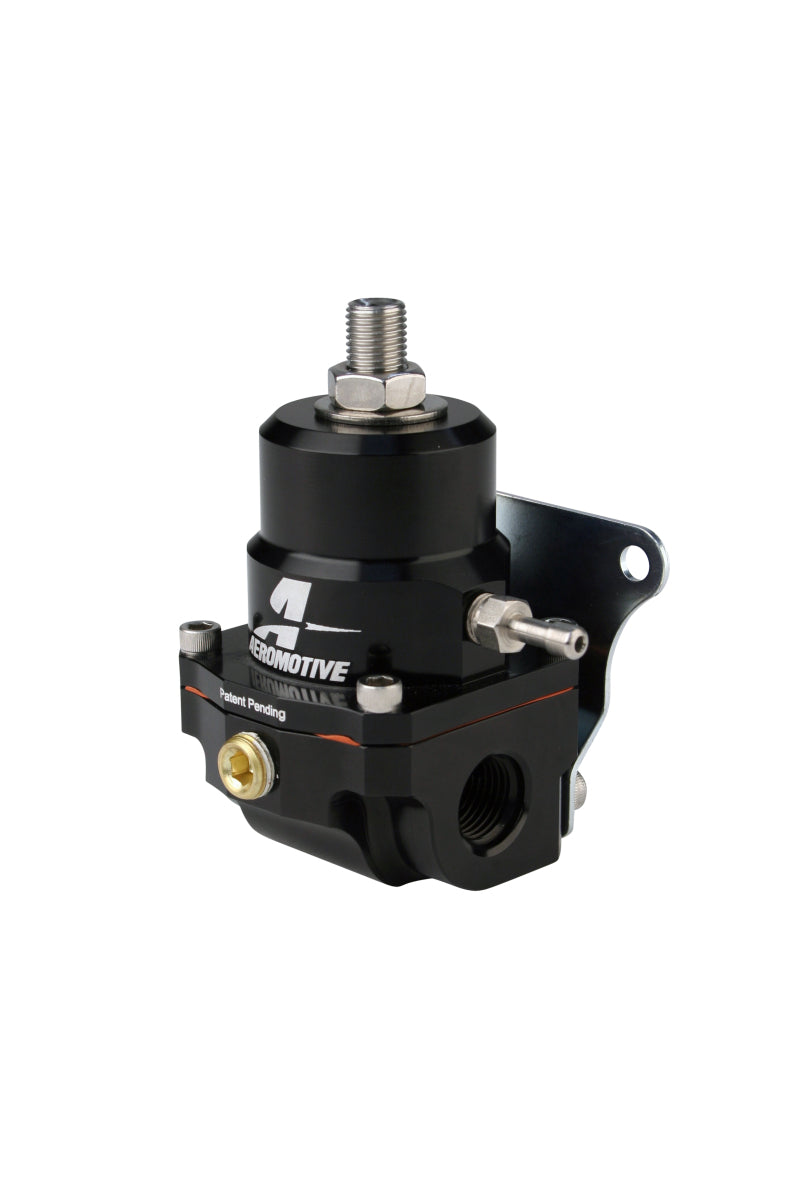

Aeromotive A1000 Adjustable EFI Fuel Pressure Regulator - (2) -6 AN Inlet / -6 AN Return

Achieve precise fuel pressure control with the legendary Aeromotive A1000 adjustable EFI fuel pressure regulator. Engineered for medium to high horsepower applications, this next-generation regulator delivers exceptional flow, superb pressure control, and proven durability in a compact, lightweight package.

Key Features:

• 40-75 PSI adjustable base pressure range
• 1:1 vacuum/boost reference capability
• (2) -6 AN ORB inlet/outlet ports
• (1) -6 AN ORB return port
• 1/8" NPT dedicated gauge port
• Deep black anodized finish (cap and base)
• Compact, lightweight next-generation design
• Compatible with gas, ethanol, methanol, and diesel

Performance Benefits:

• Precise Pressure Control: Maintains consistent fuel pressure across entire RPM range
• High Flow Capacity: Supports A1000 class and smaller pumps for medium to high horsepower
• 1:1 Boost Reference: Automatically adjusts fuel pressure with manifold pressure changes
• Fuel Compatibility: Works with gas, ethanol, methanol, and diesel fuels
• Proven Reliability: Legendary Aeromotive durability tested on street and track
• Compact Design: Reduced size and weight compared to previous generation

Specifications:

• Brand: Aeromotive
• Part Number: AER13138
• Product: A1000 Adjustable EFI Fuel Pressure Regulator
• Pressure Range: 40-75 PSI adjustable
• Boost Reference: 1:1 vacuum/boost capability
• Inlet Ports: (2) -6 AN ORB (o-ring boss)
• Return Port: (1) -6 AN ORB (o-ring boss)
• Gauge Port: 1/8" NPT
• Finish: Deep black anodized
• Fuel Compatibility: Gas, ethanol, methanol, diesel
• Barcode: 684980008616

Fitment Information:

• Application: Universal (medium to high horsepower EFI systems)
• Pump Compatibility: A1000 class and smaller pumps
• Fuel System: Electronic fuel injection (EFI)
• Port Size: -6 AN ORB fittings required
• Installation: Professional installation recommended

What's Included:

• Aeromotive A1000 adjustable EFI fuel pressure regulator
• Installation instructions
• Note: -6 AN fittings sold separately

Installation Notes:

• Professional installation strongly recommended
• Use -6 AN ORB fittings for all ports
• Install fuel pressure gauge in 1/8" NPT gauge port
• Connect vacuum/boost reference line to manifold
• Set base pressure with engine running and vacuum line disconnected
• Verify fuel pressure under all operating conditions
• Check for leaks before operating vehicle

40-75 PSI Adjustable Range:

The 40-75 PSI adjustable base pressure range accommodates a wide variety of fuel injector and engine combinations. Most naturally aspirated applications run 43-58 PSI base pressure, while forced induction applications may require higher base pressure depending on injector specifications. The wide adjustment range ensures compatibility with virtually any EFI system requiring precise fuel pressure control.

1:1 Boost Reference:

The 1:1 vacuum/boost reference capability is critical for forced induction applications. When connected to manifold pressure, the regulator automatically increases fuel pressure 1:1 with boost pressure, maintaining consistent fuel pressure differential across the injectors. This ensures proper fuel delivery and prevents lean conditions under boost. For naturally aspirated applications, the vacuum reference improves fuel economy and idle quality by reducing fuel pressure at idle and cruise.

High Flow Design:

Aeromotive's high-flow design ensures the regulator doesn't become a restriction in your fuel system. The A1000 regulator supports A1000 class and smaller fuel pumps, providing adequate flow for medium to high horsepower applications. The dual -6 AN inlet ports allow for flexible plumbing configurations, while the -6 AN return port efficiently routes excess fuel back to the tank.

ORB Port Design:

The AN spec ORB (o-ring boss) port design provides leak-free connections using -6 AN ORB fittings. ORB fittings use an o-ring seal rather than tapered threads, eliminating the need for thread sealant and providing more reliable sealing. The ORB design also allows for easier installation and removal compared to NPT fittings, making fuel system maintenance simpler.

Next Generation Design:

This next-generation A1000 regulator features a redesigned body profiled for reduced size and weight while maintaining the legendary Aeromotive flow and pressure control. The deep, bright-dip black anodized finish on the cap and base provides corrosion resistance and a premium appearance. The distinctive design also serves as a visual cue that you've purchased a genuine Aeromotive regulator, not an inferior knock-off or counterfeit component.

Fuel Compatibility:

The A1000 regulator is compatible with gasoline, ethanol (E85), methanol, and diesel fuels. The internal components are engineered to withstand the corrosive properties of alcohol-based fuels, making this regulator suitable for flex-fuel and race fuel applications. This versatility ensures the regulator can handle whatever fuel your application requires.

Why Aeromotive?

Aeromotive is the industry leader in high-performance fuel system components, known for exceptional quality, reliability, and performance. A1000 regulators have logged more miles, laps, and passes than any other performance EFI regulators in the world, proving their durability in the most demanding street and racing applications. Aeromotive's commitment to quality ensures you're getting a regulator that will perform flawlessly for years to come.

Tuning Tips:

• Set base pressure with engine running and vacuum line disconnected
• Most naturally aspirated applications: 43-58 PSI base pressure
• Forced induction applications: Consult injector specifications for required base pressure
• Monitor fuel pressure under all operating conditions with quality gauge
• Verify fuel pressure rises 1:1 with boost when using boost reference

Perfect For:

• Medium to high horsepower EFI builds requiring precise fuel pressure control
• Turbocharged and supercharged applications needing 1:1 boost reference
• Naturally aspirated builds wanting improved fuel economy and idle quality
• E85 and methanol fuel systems requiring alcohol-compatible components
• Anyone upgrading from factory fuel pressure regulator or inferior aftermarket units

Perfect For: Medium to high horsepower EFI applications seeking legendary Aeromotive A1000 adjustable fuel pressure regulator with 40-75 PSI range and 1:1 boost reference.

Pro Tip: Always install a quality fuel pressure gauge in the dedicated 1/8" NPT gauge port to monitor fuel pressure and verify proper regulator operation.

Professional Installation: -6 AN ORB fittings required (sold separately). Set base pressure with vacuum line disconnected.

Upgrade your fuel system with Aeromotive A1000 adjustable EFI regulator - 40-75 PSI, 1:1 boost reference, proven reliability, black anodized.
