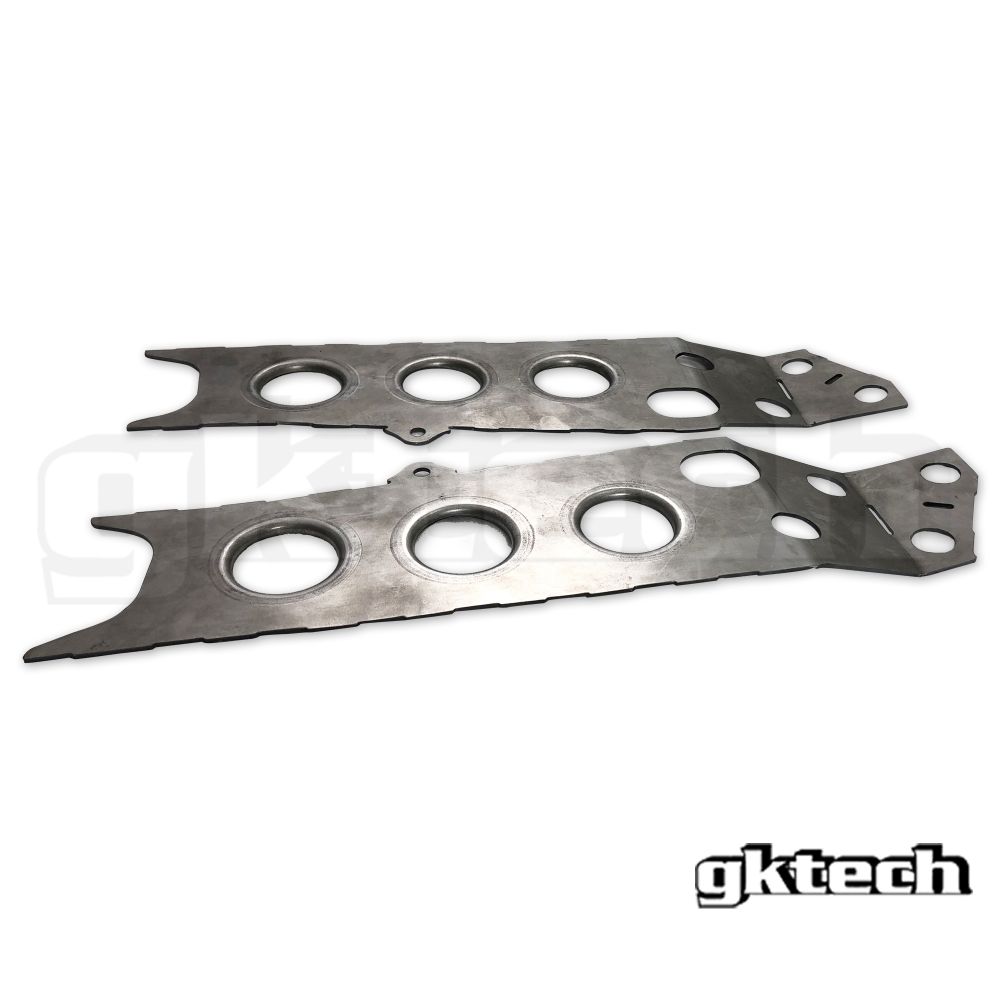

GK Tech K-Frame/Tension Rod Weld-In Reinforcement Plates - Nissan S14 240SX / S15 Silvia

Eliminate K-frame flex and improve handling with GK Tech weld-in K-frame/tension rod reinforcement plates. Designed to brace one of the most critical areas on your S-chassis, these precision-engineered plates eliminate flex, improve steering feedback, and provide ground clearance protection.

Key Features:

• Weld-in K-frame and tension rod reinforcement
• CAD designed for precise fitment
• CNC laser cut from 2mm C30 steel
• Dimple died for increased rigidity
• Eliminates K-frame flex under load
• Flat bottom design for ground clearance protection
• Direct fitment for S14/S15 chassis
• GK Tech quality and engineering

Performance Benefits:

• Eliminates Flex: Braces K-frame to prevent visually noticeable flexing
• Improved Handling: Reduced flex translates to better overall handling
• Better Steering Feedback: Firmer chassis provides more precise steering feel
• Ground Protection: Flat bottom helps glide over obstacles
• Increased Rigidity: Dimple die pattern adds structural strength
• Track-Proven: Essential upgrade for drift and track use

Specifications:

• Brand: GK Tech
• Part Number: S145-KFRM
• Product: K-Frame/Tension Rod Reinforcement Plates
• Material: 2mm C30 steel
• Construction: CNC laser cut
• Design: CAD designed
• Finish: Dimple died for rigidity
• Installation: Weld-in

Fitment Information:

• Nissan S14 240SX/Silvia (1995-1998)
• Nissan S15 Silvia (1999-2002)
• Note: Professional welding installation required

What's Included:

• GK Tech K-frame/tension rod reinforcement plates (set)
• Installation instructions
• Note: Professional welding required for installation

Installation Notes:

• Professional welding installation strongly recommended
• Support vehicle safely on jack stands
• Clean K-frame mounting area thoroughly
• Test fit plates before welding
• Tack weld in place and verify alignment
• Complete weld around perimeter
• Allow welds to cool before lowering vehicle
• Inspect welds for quality and coverage

Eliminates K-Frame Flex:

The K-frame on S14 and S15 chassis flexes under load, especially during hard cornering, braking, and acceleration. This flex is visually noticeable and negatively affects handling precision and steering feedback. The tension rods put immense load on the K-frame, causing it to flex and move. GK Tech's reinforcement plates eliminate this flex by bracing the critical K-frame and tension rod mounting area, creating a much more rigid front suspension mounting point.

Improved Handling and Steering Feedback:

By eliminating K-frame flex, the reinforcement plates provide noticeably improved handling and steering feedback. The firmer chassis allows suspension components to work as designed without the compliance introduced by K-frame flex. Drivers will notice more precise steering response, better turn-in, and improved overall handling characteristics. This improvement is especially noticeable during aggressive driving, drifting, and track use.

CAD Designed and CNC Laser Cut:

The plates are CAD designed for precise fitment to the S14/S15 K-frame geometry. CNC laser cutting ensures consistent, accurate dimensions across all plates. The precision manufacturing guarantees proper fitment and optimal load distribution. The 2mm C30 steel provides excellent strength while keeping weight reasonable.

Dimple Died for Increased Rigidity:

The dimple die pattern pressed into the plates significantly increases their structural rigidity without adding weight. The dimples create a three-dimensional structure that resists bending and flexing much better than flat plate. This manufacturing technique is commonly used in motorsport applications where maximum strength-to-weight ratio is critical.

Ground Clearance Protection:

The flat bottom design of the reinforcement plates provides an added benefit of ground clearance protection. When riding over ripple strips at the track or hitting gutters on the street, the flat bottom helps the car glide over obstacles rather than catching and potentially damaging suspension components. This protection can prevent costly damage to the K-frame, tension rods, and other front suspension components.

Essential S-Chassis Upgrade:

K-frame reinforcement is considered one of the most necessary upgrades for S-chassis, especially for drift and track use. The factory K-frame was not designed for the loads experienced during aggressive driving with upgraded suspension and tires. The GK Tech reinforcement plates address this weakness, providing the rigidity needed for serious performance driving.

Why GK Tech?

GK Tech specializes in manufacturing high-quality performance parts for Nissan platforms, with particular expertise in S-chassis components. Their products are designed by enthusiasts who understand the specific needs of drift and track drivers. GK Tech parts are known for precision fitment, quality construction, and proven performance in demanding applications.

Installation Tips:

• Use experienced welder familiar with chassis work
• Clean all surfaces thoroughly before welding
• Tack weld and verify fitment before final welding
• Use proper welding technique for structural welds
• Allow welds to cool naturally - don't quench
• Inspect all welds for quality and complete penetration

Perfect For:

• S14 240SX and S15 Silvia owners seeking improved handling
• Drift builds requiring maximum chassis rigidity
• Track cars needing precise steering feedback
• Anyone experiencing K-frame flex issues
• Serious S-chassis builds demanding proven GK Tech quality

Perfect For: Nissan S14 240SX and S15 Silvia owners seeking GK Tech K-frame/tension rod reinforcement plates for improved handling and rigidity.

Pro Tip: This is one of the most important chassis reinforcements for S-chassis - the handling improvement is immediately noticeable.

Professional Installation: Weld-in design. CNC laser cut 2mm C30 steel. Dimple died for rigidity. CAD designed for precise fitment.

Eliminate K-frame flex with GK Tech reinforcement plates - improved handling, better steering feedback, ground protection, track-proven.
