GrimmSpeed Silver Top Mount Intercooler for Subaru WRX and STI

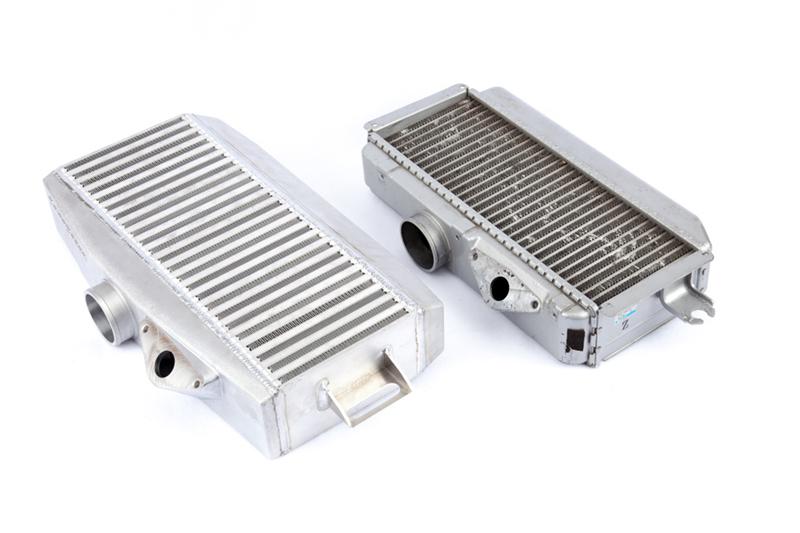

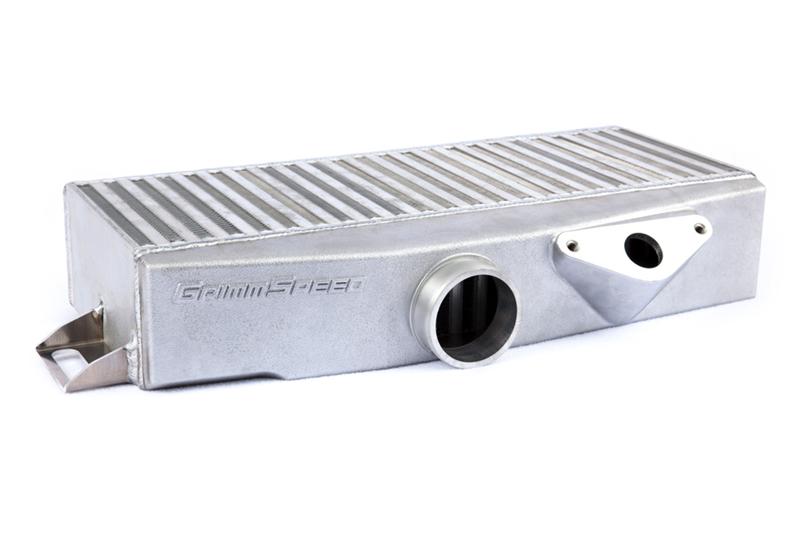

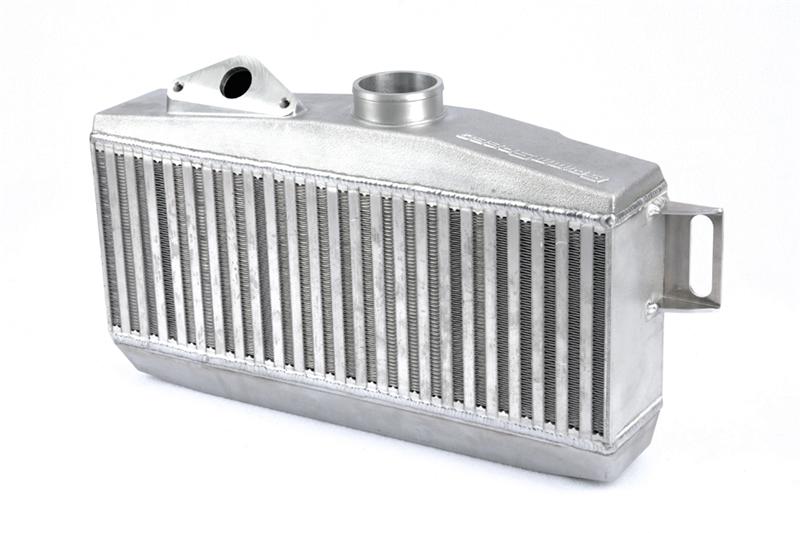

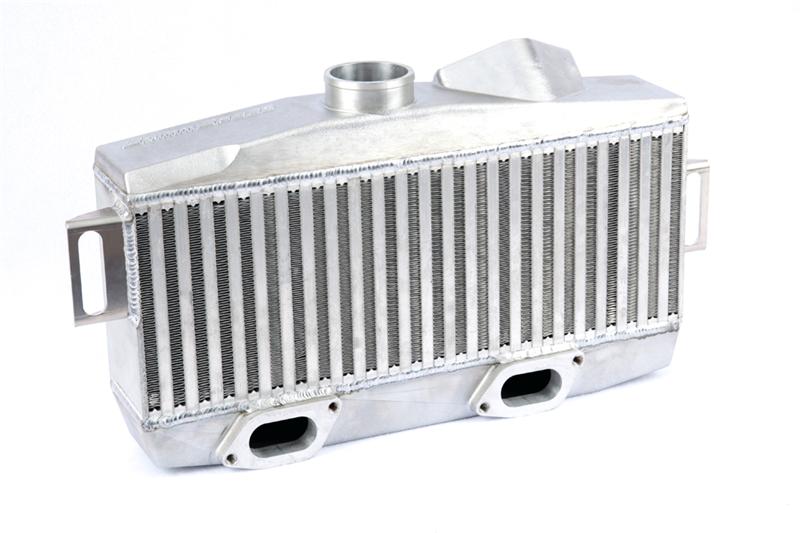

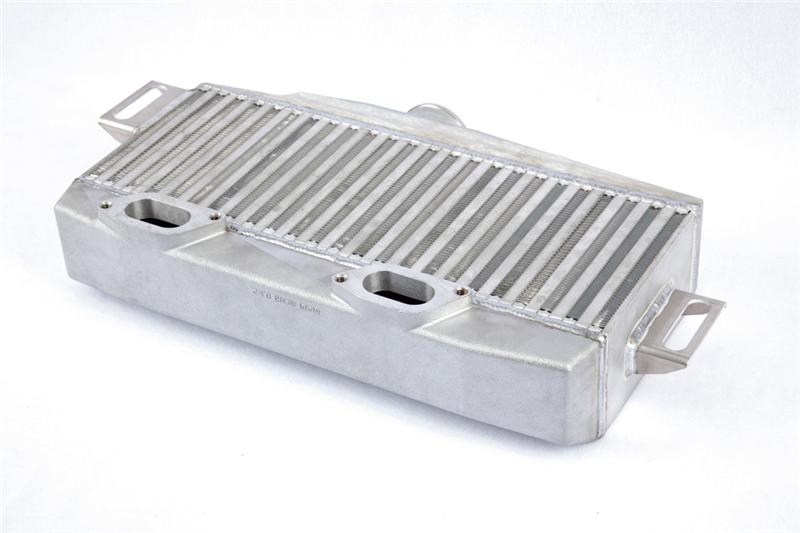

The GrimmSpeed GRM090001 top mount intercooler combines a silver bar-and-plate core with cast aluminum end tanks for EJ-powered Subaru applications. Machined sealing surfaces and stainless-steel threaded inserts support a durable installation, while the larger heat exchanger provides an alternative to the factory top mount. Ships fast across Canada and the US.
Features
- Silver intercooler finish.

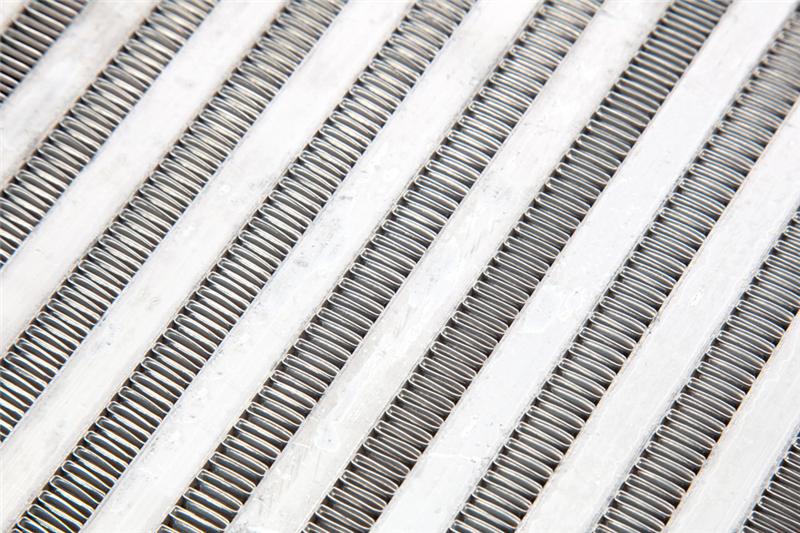

- Bar-and-plate core construction.

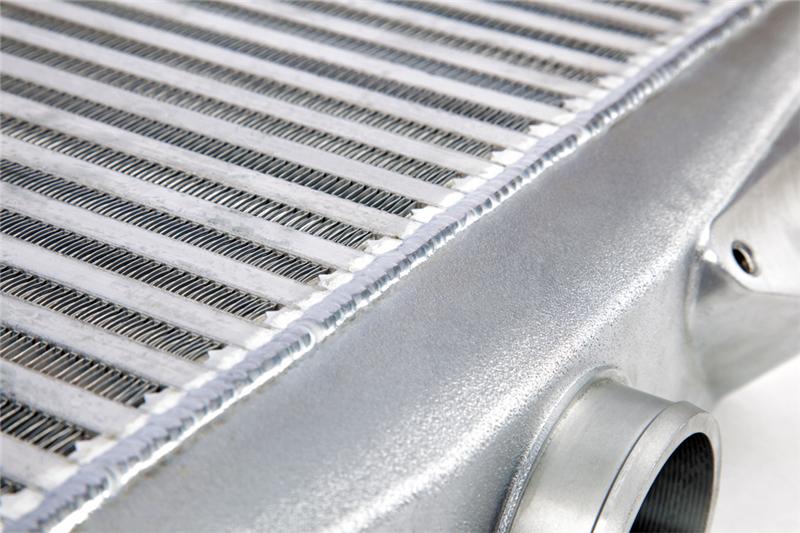

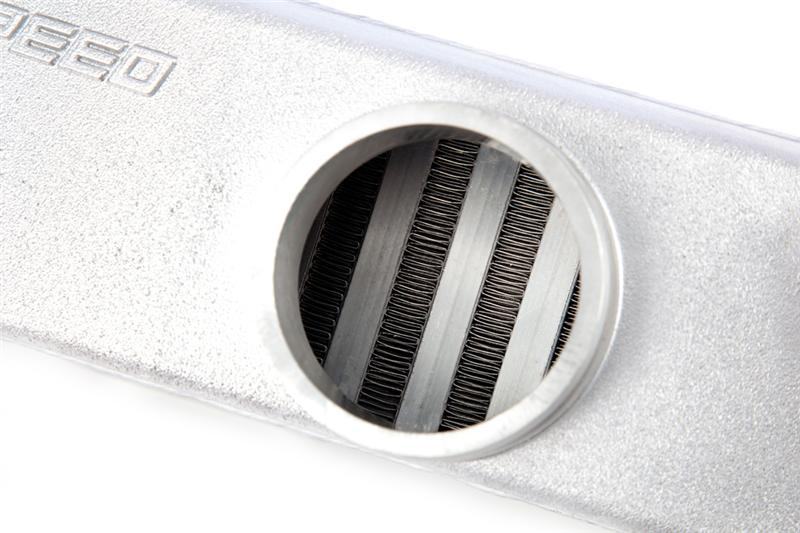

- Cast aluminum end tanks with smooth internal contours.

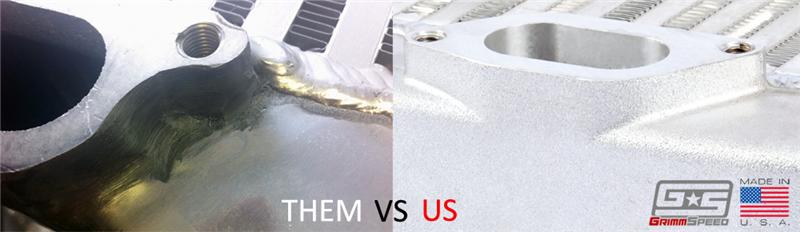

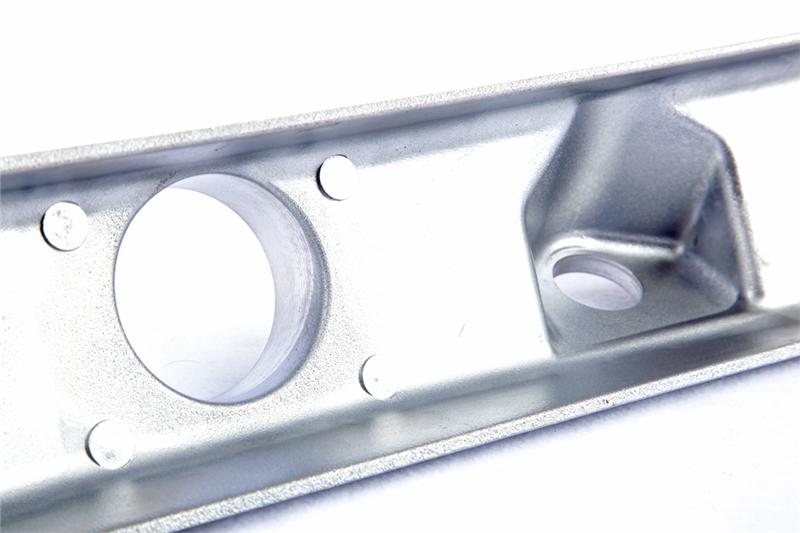

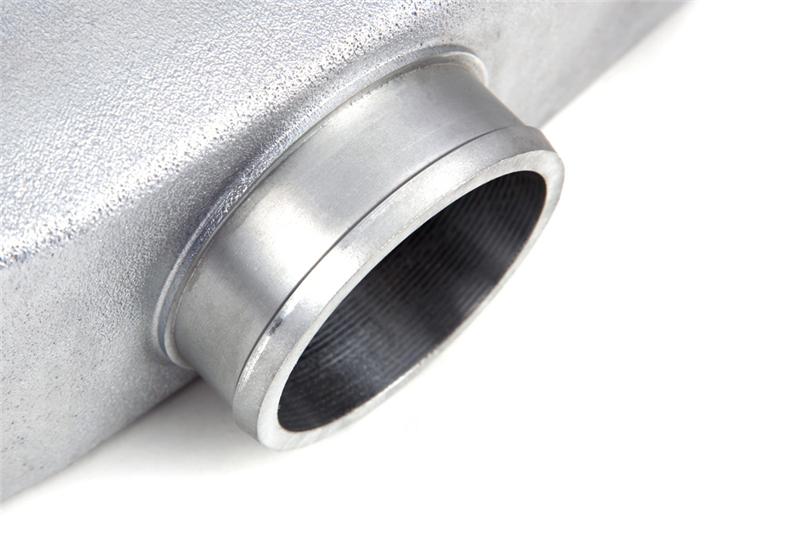

- Machined throttle-body connection and flange sealing surfaces.
- Stainless-steel threaded inserts.
- Includes GrimmSpeed inlet and bypass-valve gaskets.
Specifications
- Brand: GrimmSpeed
- Part number: GRM090001 / 090001
- Product type: Top mount intercooler
- Finish: Silver
- Core construction: Bar-and-plate
- End tanks: Cast aluminum
Applications
- 2002–2007 Subaru WRX: requires a separate STI-compatible Y-pipe.
- 2004–2021 Subaru WRX STI: confirm the condition and compatibility of the existing Y-pipe and hoses.
- 2004–2008 Subaru Forester XT: requires a separate STI-compatible Y-pipe; 2004–2005 models also require an STI bypass valve and recirculation hose.
These applications do not extend to 2008+ WRX models or the FA20DIT/FA24 WRX. Confirm compatibility separately for engine swaps, aftermarket turbochargers and modified bypass-valve or intake connections.
Package and Installation Notes
This listing is for the silver intercooler with inlet and bypass-valve gaskets. Do not assume the separately sold Y-pipe, replacement bypass valve, recirculation hose, hood-scoop splitter or a complete hose-and-clamp package is included.
Follow GrimmSpeed's installation instructions and verify mount alignment, hood clearance, ducting coverage, hose engagement and bypass-valve sealing. Inspect the finished charge-air system for leaks. Discuss calibration requirements with your tuner for the complete modification package; no specific power gain, temperature reduction or knock-prevention result is guaranteed.
