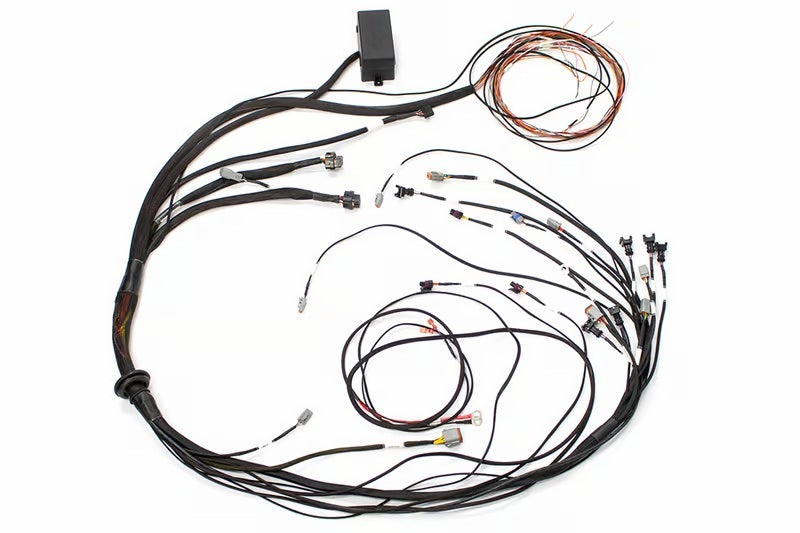

Haltech Elite 1000 / Elite 1500 Terminated Main Harness – Mazda 13B | EV1 Injector Connector | Main Harness Only

The Haltech Elite 1000 / Elite 1500 Terminated Main Harness for the Mazda 13B with EV1 injector connectors is a pre-terminated, plug-and-play main wiring harness engineered for use with the Haltech Elite 1000 or Elite 1500 ECU on Mazda 13B rotary engine applications using EV1-style fuel injector connectors. This is the main harness only — sub-harnesses (ignition, injector extension, sensor sub-harnesses) are not included and must be sourced separately as required for your specific 13B build configuration. Haltech is one of the most respected standalone ECU and wiring harness brands in the performance aftermarket — an Australian brand with a strong following among rotary engine builders and performance enthusiasts globally.

Key Features:

• Pre-terminated main harness — factory-terminated wiring harness for the Haltech Elite 1000 / Elite 1500 ECU — eliminates the need to fabricate a custom main harness from scratch for the 13B application
• Mazda 13B specific — engineered for the Mazda 13B rotary engine — correct connector types, wire lengths, and circuit assignments for the 13B's sensor and actuator layout
• EV1 injector connectors — terminated with EV1-style fuel injector connectors — correct for 13B builds using EV1-compatible fuel injectors — verify your specific injector connector type before ordering
• Compatible with Elite 1000 and Elite 1500 — correct for both the Haltech Elite 1000 and Elite 1500 ECU platforms — verify your specific ECU model before ordering
• Main harness only — this harness provides the main ECU-to-engine wiring — sub-harnesses for ignition, injector extensions, and other functions are not included and must be sourced separately
• Haltech quality — manufactured by Haltech, one of the most respected standalone ECU and harness brands in the performance aftermarket

Main Harness Only — What This Means:

This listing is for the terminated main harness only — sub-harnesses are not included. A complete Haltech Elite 1000/1500 wiring installation for the Mazda 13B typically requires the main harness plus additional sub-harnesses depending on the specific build configuration — ignition sub-harnesses, injector sub-harnesses, sensor sub-harnesses, and other application-specific wiring. The main harness provides the core ECU-to-engine wiring backbone, but the complete harness set required for your specific 13B build will depend on your ignition system, injector configuration, sensor setup, and other build-specific factors. Consult Haltech's product documentation and your ECU installer to determine the complete harness set required for your specific 13B Elite 1000/1500 installation before ordering.

EV1 Injector Connectors — Verify Before Ordering:

This harness is terminated with EV1-style fuel injector connectors — the older, larger rectangular injector connector used on many performance injectors and OEM applications. EV1 connectors are compatible with a wide range of performance injectors from brands including Bosch, Siemens Deka, RC Engineering, and others. If your 13B build uses injectors with EV6 (USCAR) connectors — the smaller, more modern connector used on many current-generation performance injectors — this harness is not the correct choice. Verify your specific injector connector type before ordering.

Elite 1000 vs. Elite 1500 — Harness Compatibility:

This terminated main harness is compatible with both the Haltech Elite 1000 and Elite 1500 ECU platforms. The Elite 1000 and Elite 1500 share the same main harness connector configuration — the difference between the two ECUs is in their internal feature set and I/O count, not their harness interface. Verify your specific Haltech Elite ECU model (1000 or 1500) before ordering to confirm harness compatibility.

Specifications:

• Brand: Haltech
• Part Number: HALHT-130307
• Barcode: HT-130307
• Harness Type: Terminated main harness — main harness only
• ECU Compatibility: Haltech Elite 1000 / Elite 1500
• Application: Mazda 13B rotary engine
• Injector Connector: EV1
• Sub-harnesses: Not included
• Weight: 2 lbs (shipping weight)

Fitment Information:

• Mazda 13B rotary engine — all variants (13B-T, 13B-REW, 13B-MSP, peripheral port, bridge port, etc.)
• Compatible with Haltech Elite 1000 and Elite 1500 ECU
• EV1 injector connector — verify your specific injector connector type before ordering
• Note: Main harness only — sub-harnesses not included. Consult Haltech's product documentation and your ECU installer to determine the complete harness set required for your specific 13B build before ordering. Professional installation by an experienced ECU installer strongly recommended.

What's Included:

• Haltech Elite 1000/1500 terminated main harness — Mazda 13B EV1 (HALHT-130307)
• Sub-harnesses not included — must be sourced separately as required for your specific build

Installation Notes:

• Professional installation by an experienced ECU installer and automotive electrician strongly recommended — ECU harness installation requires correct connector installation, correct wire routing, correct grounding, and thorough electrical verification before the engine is started
• Determine the complete harness set required for your specific 13B Elite 1000/1500 installation before ordering — consult Haltech's product documentation and your ECU installer
• Verify correct ECU base map for your specific 13B configuration before starting the engine — do not attempt to start the engine on an uncalibrated map
• A professional tune by an experienced Haltech-familiar tuner is required after installation — the Elite 1000/1500 must be calibrated for your specific 13B build before the engine is run under load
• Refer to Haltech's wiring documentation, connector pinout, and installation guide for complete installation instructions

Why Haltech?

Haltech is one of the most respected standalone ECU and wiring harness brands in the performance aftermarket — an Australian brand with over 35 years of ECU development experience and a strong following among rotary engine builders, drag racers, circuit racers, and performance enthusiasts globally. Haltech's Elite 1000 and Elite 1500 ECUs are trusted by professional tuners and serious performance builders who demand reliable, feature-rich engine management with comprehensive support and documentation. Haltech's pre-terminated harnesses eliminate the complexity and risk of custom harness fabrication — providing a correctly-terminated, correctly-specified wiring solution for the specific ECU and engine application. For Mazda 13B builders who want a quality Haltech Elite 1000/1500 main harness from a brand with proven rotary engine management credentials, HALHT-130307 is the correct choice.

Perfect For:

• Mazda 13B rotary engine builds using the Haltech Elite 1000 or Elite 1500 ECU with EV1-style fuel injectors — where the pre-terminated main harness eliminates the need for custom main harness fabrication
• FD RX-7, FC RX-7, RX-8, and custom 13B-powered builds where the Haltech Elite 1000/1500 is the chosen ECU and a quality pre-terminated main harness is required
• Builders who want Haltech's factory-quality terminated harness for their 13B Elite installation — ensuring correct connector types, correct wire gauges, and correct circuit assignments for the 13B application

Note: Main harness only — sub-harnesses not included. EV1 injector connectors — verify your injector connector type before ordering. Compatible with Elite 1000 and Elite 1500. Professional installation and professional tune required. Consult Haltech documentation and your ECU installer for complete harness requirements before ordering.
