Haltech Elite 2500 / Elite 2500T Premium Universal Wire-In Harness | 2.5m (8ft) | Includes Haltech Moulded Fuse Box

The Haltech Elite 2500 / Elite 2500T Premium Universal Wire-In Harness is a complete, universal main wiring harness engineered for use with the Haltech Elite 2500 and Elite 2500T ECU platforms — providing the core power, ground, and ECU interface wiring required for a complete Elite 2500/2500T installation in any vehicle application. At 2.5m (8ft) in length, the harness provides sufficient reach for the majority of engine bay installations. The Premium Universal Wire-In Harness includes Haltech's moulded 6-circuit fuse box with lid, 4 relays, 7 fuses, and pins for the 2 spare power circuits — a complete power management solution that eliminates the need to source a separate fuse box for the Elite 2500/2500T installation. Haltech is one of the most respected standalone ECU brands in the performance aftermarket — an Australian brand with over 35 years of ECU development experience trusted by professional tuners and serious performance builders globally.

Key Features:

• Universal wire-in harness — universal main harness for the Haltech Elite 2500 and Elite 2500T ECU — correct for any vehicle application where the Elite 2500/2500T is being installed
• 2.5m (8ft) length — sufficient harness length for the majority of engine bay installations — verify that 2.5m is sufficient for your specific vehicle's ECU mounting location and engine bay dimensions before ordering
• Haltech moulded 6-circuit fuse box — includes Haltech's moulded 6 power circuit fuse box with lid — a clean, purpose-built fuse box for the Elite 2500/2500T power circuits — eliminates the need to source a separate fuse box
• 4 relays included — 4 relays for the main power circuits — correct relay count for the Elite 2500/2500T's primary power management requirements
• 7 fuses included — 7 fuses for the fuse box circuits — correct fuse count for the 6 primary power circuits plus one additional
• Pins for 2 spare power circuits — pins included for the fuse box's 2 spare power circuits — allowing additional circuits to be added for auxiliary power requirements (fuel pump, cooling fan, etc.)
• Firewall grommet included — firewall grommet for clean, sealed harness routing through the firewall — correct for installations where the ECU is mounted in the cabin and the harness routes through the firewall to the engine bay
• Compatible with Elite 2500 and Elite 2500T — correct for both the standard Elite 2500 and the Elite 2500T (traction control) ECU variants
• Haltech quality — manufactured by Haltech to the same quality standards as their ECU products

What's Included — Complete Kit Contents:

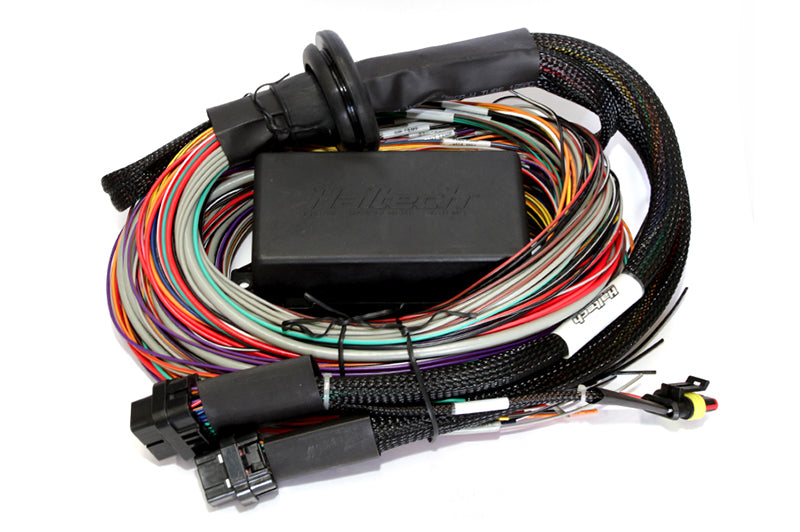

• Haltech Elite 2500/2500T premium universal wire-in harness — 2.5m (8ft)
• Haltech moulded 6 power circuit fuse box with lid
• 4 relays
• 7 fuses
• Pins for 2 spare power circuits
• Firewall grommet

Universal Wire-In Harness — What It Is and What It Requires:

This is a universal main wire-in harness — it is not a plug-and-play harness for any specific vehicle. The Premium Universal Wire-In Harness provides the core power, ground, and ECU interface wiring for the Elite 2500/2500T installation — but a complete Elite 2500/2500T wiring installation requires additional wiring for all engine sensors, actuators, ignition, injection, and other engine management functions. The universal harness is the starting point for a custom Elite 2500/2500T installation — the installer will connect the harness to the vehicle's engine sensors, actuators, and electrical system using the correct wire gauges, connector types, and circuit assignments for the specific engine and vehicle application. This harness is correct for custom engine builds, engine swaps, and any application where a vehicle-specific plug-and-play harness is not available. Professional installation by an experienced ECU installer and automotive electrician is required.

Elite 2500 vs. Elite 2500T — Harness Compatibility:

This harness is compatible with both the Haltech Elite 2500 and Elite 2500T ECU variants. The Elite 2500 and Elite 2500T share the same main harness connector configuration — the difference between the two ECUs is the Elite 2500T's additional traction control inputs and outputs, not the main harness interface. Verify your specific Haltech Elite ECU variant before ordering.

Specifications:

• Brand: Haltech
• Part Number: HALHT-141304
• Barcode: HT-141304
• Harness Type: Premium universal wire-in harness
• ECU Compatibility: Haltech Elite 2500 / Elite 2500T
• Length: 2.5m (approximately 8ft)
• Fuse Box: Haltech moulded 6 power circuit fuse box with lid
• Relays: 4 included
• Fuses: 7 included
• Spare Circuit Pins: Included for 2 spare power circuits
• Firewall Grommet: Included
• Application: Universal — any vehicle with Haltech Elite 2500 or Elite 2500T ECU
• Weight: 6 lbs (shipping weight)

Installation Notes:

• Professional installation by an experienced ECU installer and automotive electrician strongly recommended — universal wire-in harness installation requires correct sensor wiring, correct actuator wiring, correct grounding, correct fuse sizing, and thorough electrical verification before the engine is started
• Verify that 2.5m is sufficient harness length for your specific vehicle's ECU mounting location and engine bay dimensions before ordering — if a longer harness is required, verify alternative Haltech harness length options
• The universal harness provides the main ECU interface wiring — all engine sensor, actuator, ignition, and injection wiring must be completed by the installer for the specific engine and vehicle application
• A professional tune by an experienced Haltech-familiar tuner is required after installation — the Elite 2500/2500T must be calibrated for your specific engine build before the engine is run under load
• Refer to Haltech's wiring documentation, connector pinout, and installation guide for complete installation instructions — Haltech provides comprehensive wiring documentation for the Elite 2500/2500T platform
• Verify correct ECU base map for your specific engine configuration before starting the engine

Why Haltech?

Haltech is one of the most respected standalone ECU brands in the performance aftermarket — an Australian brand with over 35 years of ECU development experience and a strong following among drag racers, circuit racers, rotary engine builders, and performance enthusiasts globally. Haltech's Elite 2500 and Elite 2500T ECUs are trusted by professional tuners and serious performance builders who demand reliable, feature-rich engine management with comprehensive support, documentation, and a global tuner network. Haltech's Premium Universal Wire-In Harness provides the quality wiring foundation that an Elite 2500/2500T installation deserves — manufactured to the same standards as Haltech's ECU products. For builders who want a quality universal wire-in harness for their Elite 2500/2500T installation, HALHT-141304 is the correct choice.

Perfect For:

• Custom engine builds, engine swaps, and any application where the Haltech Elite 2500 or Elite 2500T is the chosen ECU and a universal wire-in harness is required for the installation
• Builders who want Haltech's premium universal harness with the included moulded fuse box, relays, fuses, and firewall grommet as a complete power management starting point for the Elite 2500/2500T installation
• Professional ECU installers and automotive electricians building custom Elite 2500/2500T harness installations for a wide range of engine and vehicle applications

Note: Universal wire-in harness — not a plug-and-play vehicle-specific harness. All engine sensor, actuator, ignition, and injection wiring must be completed by the installer. Verify 2.5m harness length is sufficient for your specific installation before ordering. Professional installation and professional tune required. Refer to Haltech's wiring documentation for complete installation instructions.
