Mishimoto Performance Intercooler & Pipe Kit – 2024+ Ford Mustang 2.3L EcoBoost | Silver Core / Black Pipes | Tune-Free Power Gains

The Mishimoto Performance Intercooler and Pipe Kit for the 2024+ Ford Mustang 2.3L EcoBoost in Silver Core / Black Pipes is a complete, direct-fit intercooler system — bar-and-plate intercooler core, hot-side and cold-side aluminium charge pipes, cast turbo outlet elbow, silicone couplers, and all required hardware — engineered to maximize airflow, reduce intake air temperatures, and deliver measurable power gains on the S650 Mustang EcoBoost without requiring a tune. The Silver Core / Black Pipes combination delivers a two-tone underhood aesthetic — the natural silver aluminium intercooler core paired with black charge pipes for a purposeful, contrast appearance. Up to 12 hp and 11 ft-lbs of torque are achievable with no tuning required. Backed by Mishimoto's Lifetime Warranty.

Key Features:

• 60% increase in core volume — bar-and-plate intercooler core with 60% more core volume than the factory unit — dramatically improved charge air cooling capacity for reduced IATs under boost
• Tune-free power gains — up to 12 hp and 11 ft-lbs of torque gains achievable with no ECU tune required
• Silver core / black pipes — natural silver aluminium intercooler core paired with black charge pipes — a two-tone contrast combination that stands out from the fully blacked-out or fully polished alternatives

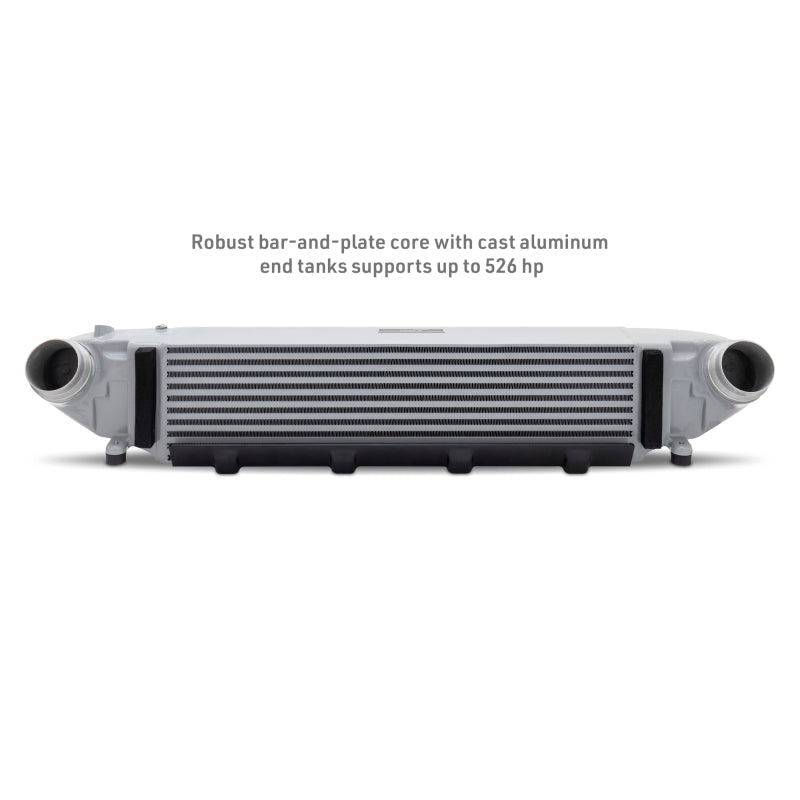

• Cast aluminium end tanks — cast aluminium end tanks for superior strength and precise internal flow geometry
• Oversized 63mm inlets/outlets — 63mm inlet and outlet ports for improved charge air flow
• Diverter plate — internal diverter plate ensures even air distribution across the full core width
• Foam sealing strips & air deflector — custom-formed air deflector and foam sealing strips maximize airflow through the core and reduce NVH

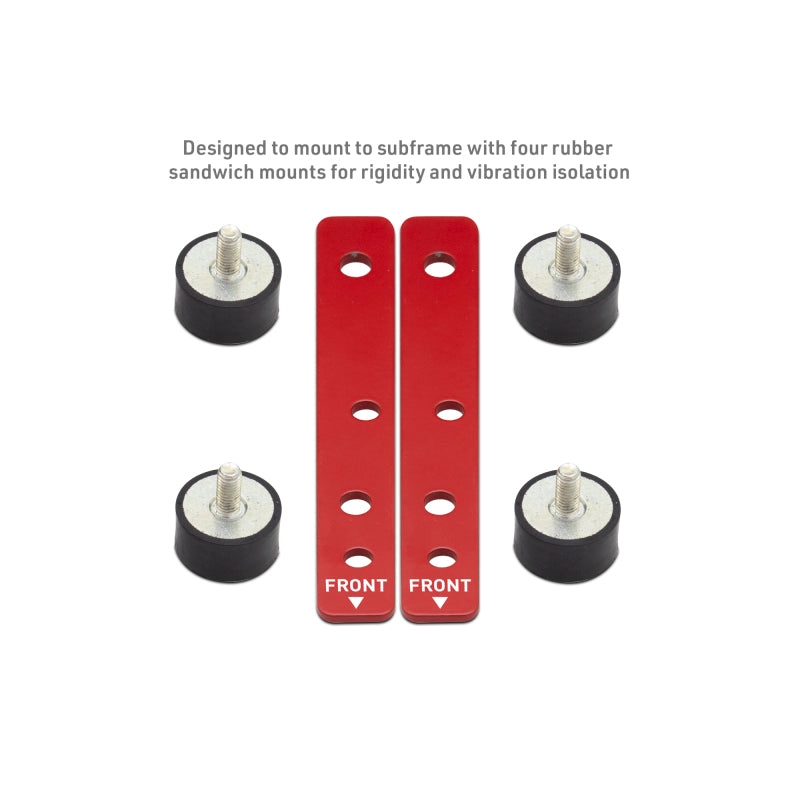

• EPDM rubber sandwich mounts — four EPDM rubber sandwich mounts isolate vibration and add rigidity

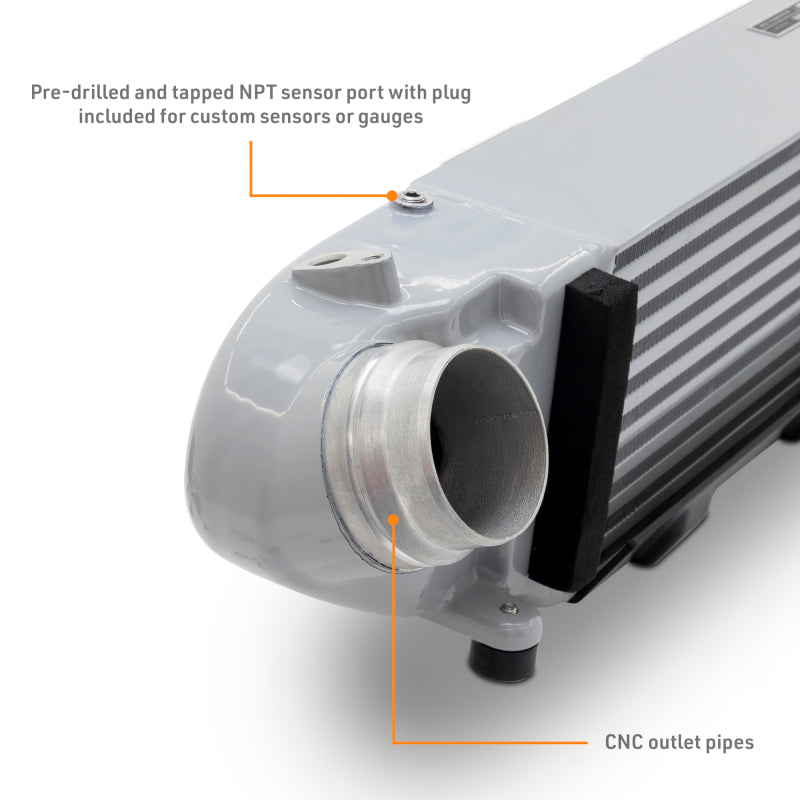

• Pre-drilled NPT port — pre-drilled NPT port for auxiliary sensor installation or data logging

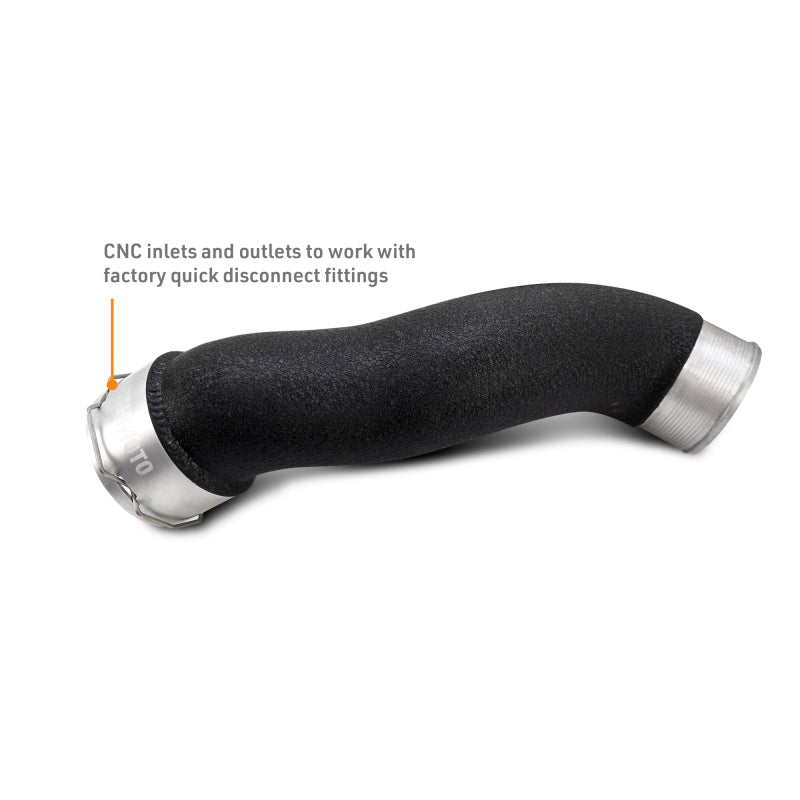

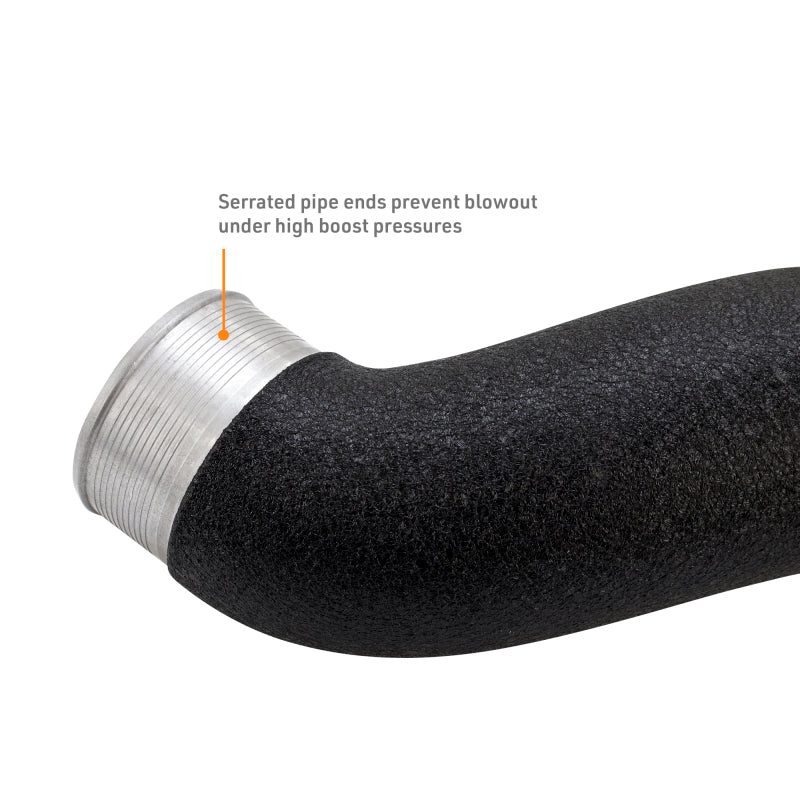

• Complete pipe kit included — black hot-side and cold-side aluminium charge pipes with cast connections, cast turbo outlet elbow with integrated BOV seat, CNC-machined quick-disconnect fittings, DuraCore silicone couplers, and high-torque worm-gear clamps
• Factory harness clipping points retained — cast turbo outlet elbow retains factory harness clipping points for a clean installation
• Mishimoto performance radiator compatible — extra clearance allows compatibility with the Mishimoto performance radiator
• Mishimoto Lifetime Warranty — backed by Mishimoto's industry-leading Lifetime Warranty

Colour Options — All Four Variants Compared:

• Silver Core / Black Pipes (this product — MISMMINT-MUS4-24KSLBK): Natural silver aluminium core with black charge pipes — a two-tone contrast combination. The silver core is visible through the front bumper opening while the black pipes provide a purposeful, understated pipe aesthetic. The correct choice for builds where a contrast between the natural aluminium core and dark pipes is the desired look.
• Black Core / Black Pipes (MISMMINT-MUS4-24KBKBK): Fully blacked-out — black core and black pipes for a clean, stealth underhood appearance. The correct choice for builds where a fully blacked-out engine bay is the priority.
• Black Core / Polished Pipes (MISMMINT-MUS4-24KBKP): Black intercooler core with polished aluminium charge pipes — a two-tone combination pairing the blacked-out core with bright, show-quality polished pipes.
• Summary: All four variants deliver identical performance — 60% more core volume, up to 12 hp / 11 ft-lbs tune-free, Lifetime Warranty. The choice between variants is purely aesthetic — select the colour combination that best complements your S650 EcoBoost's engine bay direction.

Why Upgrade the S650 Mustang EcoBoost Intercooler?

• Factory Intercooler Limitation: The 2024+ Mustang EcoBoost's factory intercooler is engineered for the stock 2.3L EcoBoost's power output and emissions compliance — adequate at stock boost levels but increasingly marginal as intake air temperatures rise under sustained boost. Heat-soaked charge air reduces charge density, causes the ECU to pull timing and boost to protect the engine, and limits consistent power delivery.
• 60% More Core Volume: Mishimoto's bar-and-plate core provides 60% more core volume than the factory intercooler — more cooling capacity, more thermal mass, and more consistent IATs under sustained boost. The result is denser charge air, more consistent power delivery, and maintained timing and boost that the ECU would otherwise pull under heat-soaked conditions.
• Tune-Free Gains: Up to 12 hp and 11 ft-lbs of torque gains without an ECU tune — the improved charge air temperatures allow the factory ECU to maintain timing and boost it would otherwise reduce. The correct first intercooler upgrade for EcoBoost owners who want meaningful performance without the cost and complexity of a tune.
• Complete System: Both the intercooler core and complete charge pipe kit included — a complete, direct-fit system requiring no additional components or fabrication.

Specifications:

• Brand: Mishimoto
• Part Number: MISMMINT-MUS4-24KSLBK
• Barcode: MMINT-MUS4-24KSLBK
• Core Type: Bar-and-plate
• Core Volume Increase: 60% over factory
• Inlet/Outlet: 63mm
• Core Finish: Silver (natural aluminium)
• Pipe Finish: Black
• Power Gains: Up to 12 hp / 11 ft-lbs (tune-free)
• Application: 2024+ Ford Mustang — 2.3L EcoBoost (S650)
• Weight: 39 lbs (shipping weight)
• Warranty: Mishimoto Lifetime Warranty

Fitment Information:

• 2024+ Ford Mustang — 2.3L EcoBoost — S650 chassis
• Direct-fit — stock location intercooler replacement — no cutting, drilling, or modification required
• Note: Engineered for the 2.3L EcoBoost Mustang only — not compatible with the 5.0L Coyote V8 Mustang. Verify your specific S650 Mustang engine variant before ordering.

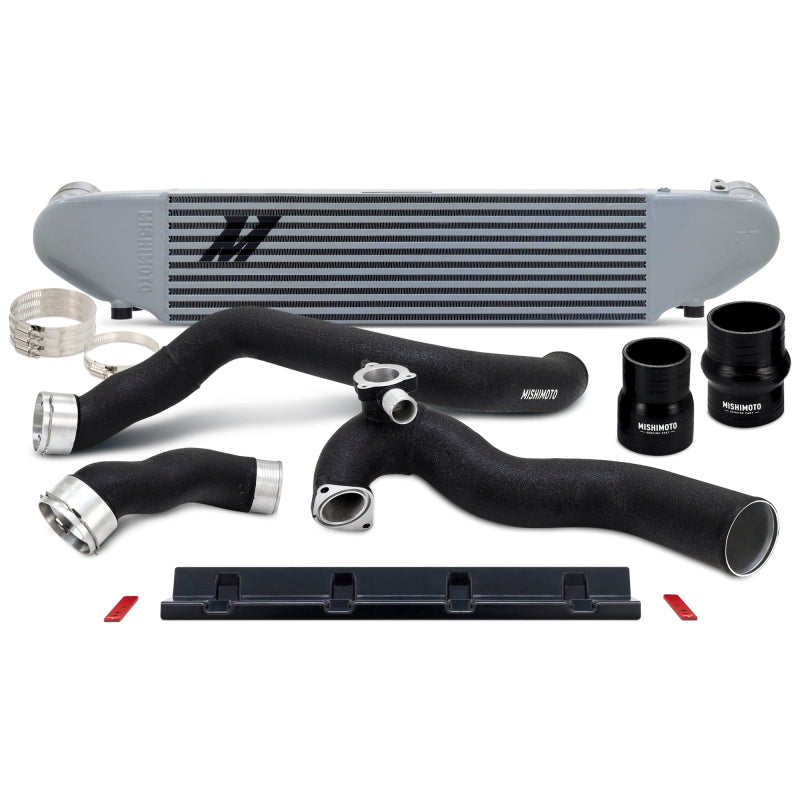

What's Included:

• Mishimoto bar-and-plate intercooler core — silver finish
• Hot-side aluminium charge pipe — black finish
• Cold-side aluminium charge pipe — black finish
• Cast turbo outlet elbow with integrated BOV seat
• DuraCore silicone couplers
• CNC-machined quick-disconnect fittings
• High-torque worm-gear clamps
• ID-matched transition coupler
• Foam sealing strips and custom air deflector
• EPDM rubber sandwich mounts (x4)
• All required mounting hardware

Installation Notes:

• Direct-fit installation — replaces the factory intercooler and charge pipes in the stock location — no cutting, drilling, or modification required
• All hardware included — no additional components required for a complete installation
• Verify all charge pipe connections and clamps for boost leaks after installation — a boost leak test before the first boosted drive is recommended
• Plug the NPT port if not using an auxiliary sensor to prevent boost leaks
• Check for boost leaks after the first heat cycle

Why Mishimoto?

Mishimoto is one of the most respected performance cooling brands in the aftermarket — known for their intercoolers, radiators, oil coolers, and cooling accessories for a wide range of performance vehicles. Mishimoto's engineering-first approach produces cooling components tested on the vehicle before release — ensuring correct fitment, correct performance gains, and correct compatibility with factory systems. Mishimoto's Lifetime Warranty backs every product they produce. For 2024+ Mustang EcoBoost owners who want a quality, complete intercooler system from a brand with proven engineering credentials and a lifetime warranty, Mishimoto is the correct choice.

Perfect For:

• 2024+ Ford Mustang 2.3L EcoBoost (S650) owners who want a complete intercooler and pipe kit with a silver core / black pipe two-tone contrast aesthetic
• EcoBoost builds where the natural silver aluminium core visible through the front bumper and black charge pipes complement the engine bay's colour direction
• Owners who want tune-free power gains and improved charge air cooling in the silver/black colour combination
• S650 EcoBoost builds where the Mishimoto intercooler kit is the foundation of a broader performance upgrade

Note: 2.3L EcoBoost S650 fitment only — not compatible with 5.0L Coyote V8. Complete kit — intercooler core and pipe kit included. All variants deliver identical performance — colour choice is aesthetic only. Verify all connections for boost leaks after installation. Plug NPT port if unused. Backed by Mishimoto Lifetime Warranty.
