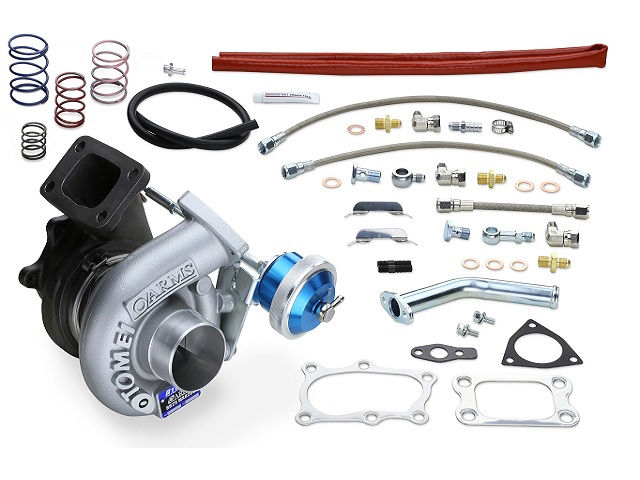

Turbocharger Kit Arms MX8265 RB25DET CNC Billet Compressor Wheel Significant improvement over traditional compressor wheels.Machined froma erospace grade materials, these highly durable lightweight compressor wheels featuer thinner blades with a larger surface area for significantly improved airflow and turbo spool. Multi Rate Billet Actuator Large capacity, reinforced forged billet contruction. Includes a total of springs for fine boost adjustment. Swivel type nipple allows for greater freedom when routing hoses. combine up to 3 springs to find the perfect set up. 6 springs included. HP : 450 Make : Nissan Engine: RB25DET Bearing Type: Journal Bearing Compressor Wheel

• • • (A) IND (mm) : 54.8
    • (B) EXD (mm) : 76.2
    • Trim : 5
    • Blades : 6
    • Material : A2618
    • Production : CNC Billet

Turbine Wheel

• • • (C) EXD (mm) : 58.8
    • (D) IND (mm) : 67
    • Trim : 77
    • Blades : 12
    • Material : K418
    • Production : Cast

Compressor Housing

• • • IND (mm) : 55.8
    • EXD (mm) : 42.62
    • A/R : 0.57

Turbine Housing

• • • IND : T3
    • EXD : RB26DET
    • A/R : 0.57

Initial Boost Setting

• • 1.0kgf/cm2
