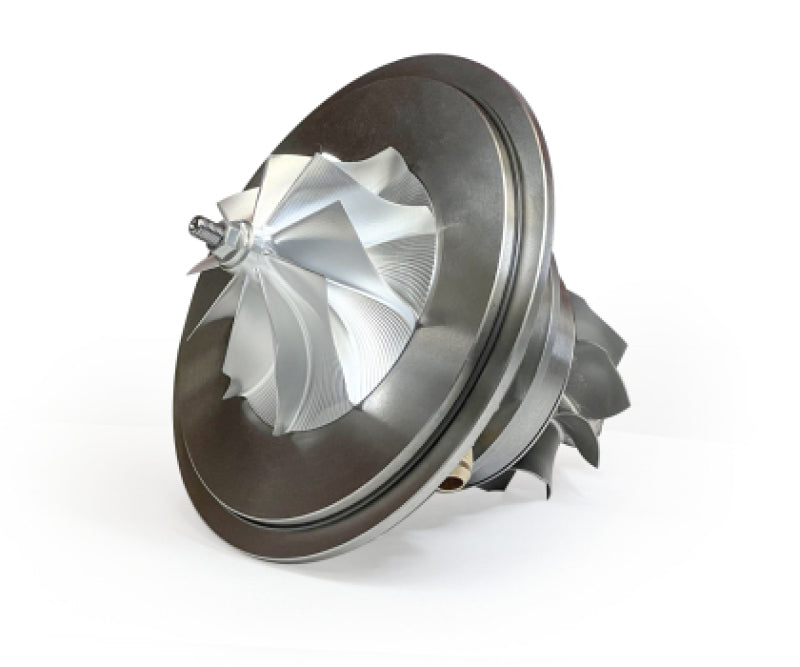

Garrett GT2860R CHRA – Centre Housing Rotating Assembly | Dual Ball Bearing | GT28 Series | 835998-5006S

⚠️ This is a CHRA (Centre Housing Rotating Assembly) — not a complete turbocharger. The CHRA is the rotating core of the turbocharger — comprising the compressor wheel, turbine wheel, shaft, and centre housing with bearings — sold without a turbine housing or compressor cover. It is used to rebuild an existing GT28-series turbocharger or to upgrade the rotating assembly inside a compatible GT28 housing. If you are looking for a complete, ready-to-install turbocharger, see our Garrett GT2860RS or GT2871R complete turbo listings.

What Is a CHRA?

The CHRA (Centre Housing Rotating Assembly) is the heart of a turbocharger — the precision-engineered rotating core that contains the compressor wheel, turbine wheel, shaft, and centre housing with its bearing system. The CHRA is the component responsible for compressing intake air and is the primary determinant of a turbo’s performance characteristics, spool speed, and power capacity.

CHRAs are purchased separately from turbine housings and compressor covers for two primary purposes:

• Turbo Rebuild: Replacing a worn, damaged, or failed CHRA in an existing GT28-series turbocharger shell — restoring the turbo to factory or upgraded performance without replacing the complete unit. A cost-effective alternative to purchasing a complete replacement turbo when the housing is in good condition
• Performance Upgrade: Upgrading the rotating assembly inside an existing GT28-series housing to the GT2860R’s dual ball bearing, higher-trim specification — improving spool response, thrust capacity, and power potential over a stock or journal bearing CHRA

GT2860R CHRA – Key Specifications & Features

• Garrett Dual Ball Bearing Design: The GT2860R CHRA uses Garrett’s genuine dual ball bearing system — precision ball bearings on both the compressor and turbine sides of the shaft, replacing the conventional journal bearing design. Dual ball bearings deliver significantly faster spool response, reduced turbo lag, superior thrust capacity under sustained boost, and improved durability compared to journal bearing CHRAs. Ball bearing CHRAs also require less oil pressure to operate correctly and are more tolerant of oil supply interruptions than journal bearing designs
• GT28 Series – 60mm Compressor Trim: The GT2860R sits in Garrett’s GT28 compressor family with a 60mm compressor wheel trim — sized for 2.0L–2.5L engine applications in the 250–400 HP range depending on configuration, boost pressure, and tune. The “R” designation in the GT2860R denotes the dual ball bearing (Rolling element) CHRA specification
• Housing Compatibility: The GT2860R CHRA is designed to fit GT28-series turbine housings and compressor covers. Verify compatibility with your existing housing before ordering — not all GT28 housings are compatible with all GT28 CHRAs. Consult your turbo builder or Garrett’s fitment documentation to confirm your housing accepts the GT2860R CHRA
• Water & Oil Cooled: The GT2860R CHRA requires both oil and water (coolant) connections — oil for bearing lubrication and water for thermal management of the centre housing. Both connections must be properly plumbed during installation
• Genuine Garrett Quality: Garrett Motion is the world’s leading turbocharger manufacturer with over 65 years of engineering experience. The GT2860R CHRA is a genuine Garrett product — not a clone or replica — manufactured to Garrett’s OEM-grade quality and precision standards

Common Applications

• Nissan SR20DET — S13 / S14 / S15 Silvia, 180SX, 240SX (GT28 series turbo rebuild or upgrade)
• Nissan CA18DET — S12 / S13 Silvia, 180SX (GT28 series turbo rebuild)
• Universal — any GT28-series turbocharger rebuild or upgrade application (verify housing compatibility)

Specifications

• Brand: Garrett Motion
• Model: GT2860R CHRA
• Part Number: 835998-5006S
• Component Type: CHRA (Centre Housing Rotating Assembly) — not a complete turbocharger
• Bearing Type: Dual Ball Bearing
• Compressor Family: GT28 Series (60mm trim)
• Cooling: Water & Oil Cooled
• Compatible Housing: GT28 Series (verify specific housing compatibility before ordering)

⚠️ Installation Notes: CHRA installation requires disassembly of the existing turbocharger and professional assembly by an experienced turbo builder — this is not a bolt-on installation. Incorrect assembly will result in turbo failure and potential engine damage. Verify housing compatibility before ordering. Oil feed line must be restricted to the correct flow rate for ball bearing CHRAs — consult Garrett’s installation guidelines for oil feed specifications. Prime the CHRA with oil before initial startup. Water cooling lines must be connected and free of air pockets before operation. An ECU retune may be required if this CHRA represents a significant upgrade over the previous specification.
