AMS Performance F-150 / Raptor EcoBoost Intercooler Pipes, 2021+ | AMS.55.09.0003-1
This product is currently out of stock at StraightSixImports and must be brought in from the manufacturer. If you're working under a specific timeline, please contact us before ordering to confirm lead time and availability.
AMS Performance Intercooler Pipes for 2021+ Ford F-150 and Raptor

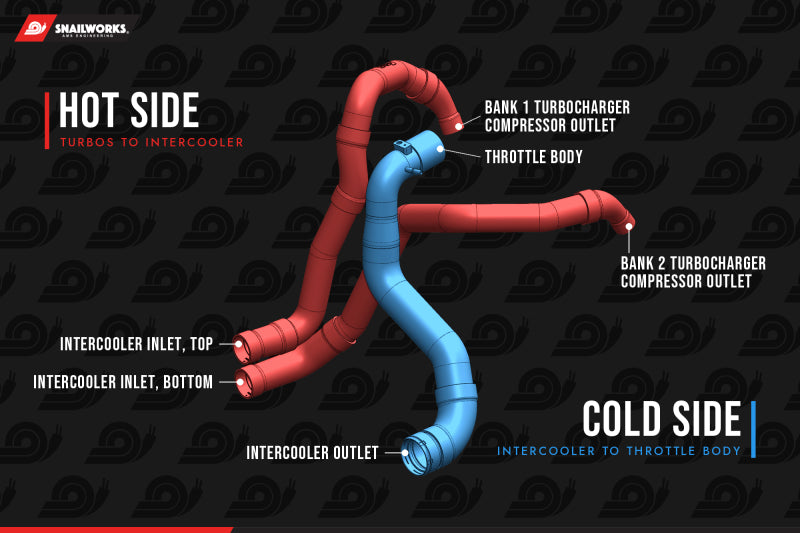

The AMS Performance AMS.55.09.0003-1 intercooler pipe kit replaces the factory plastic charge piping on listed 2021+ Ford F-150 EcoBoost, PowerBoost and 3.5L Raptor applications. Mandrel-bent 6061 aluminium tubing, stepped silicone couplers and a black powder-coated finish provide a matched charge-air path from the turbochargers through the intercooler connections to the throttle body. Ships fast across Canada and the US.
Features

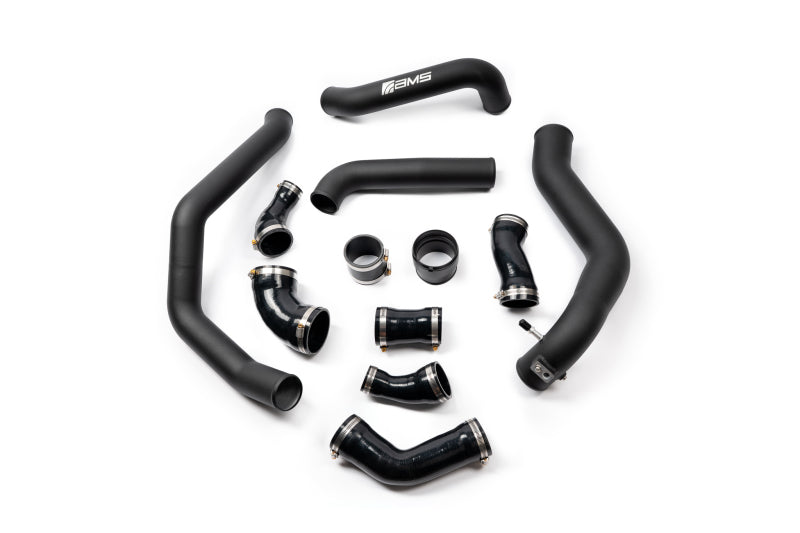

- Complete hot- and cold-side piping sold as one matched set.
- Mandrel-bent 6061 aluminium tubes replace factory moulded plastic charge pipes.

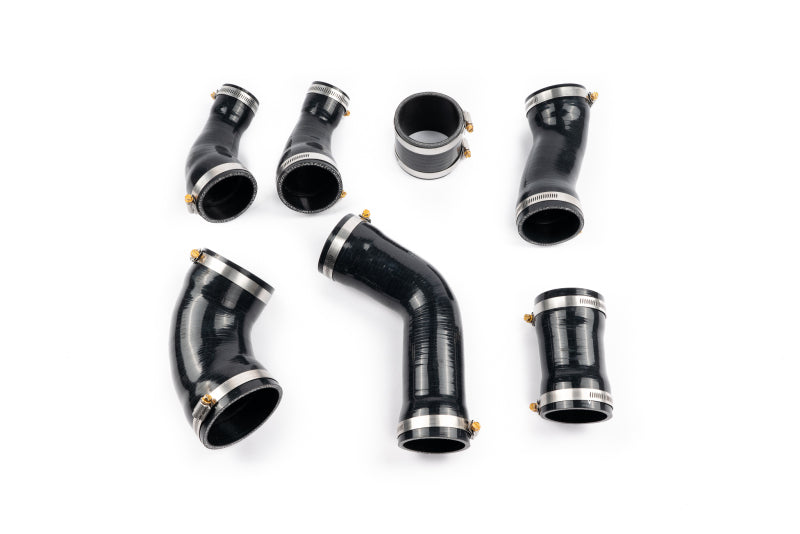

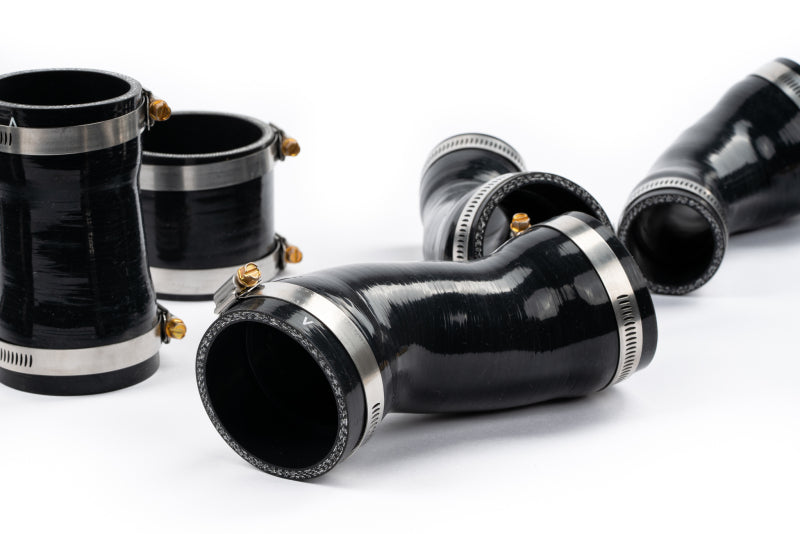

- Stepped five-ply silicone couplers designed to sit flush with the piping.
- Billet adapter for the factory quick-disconnect connection at the intercooler outlet.

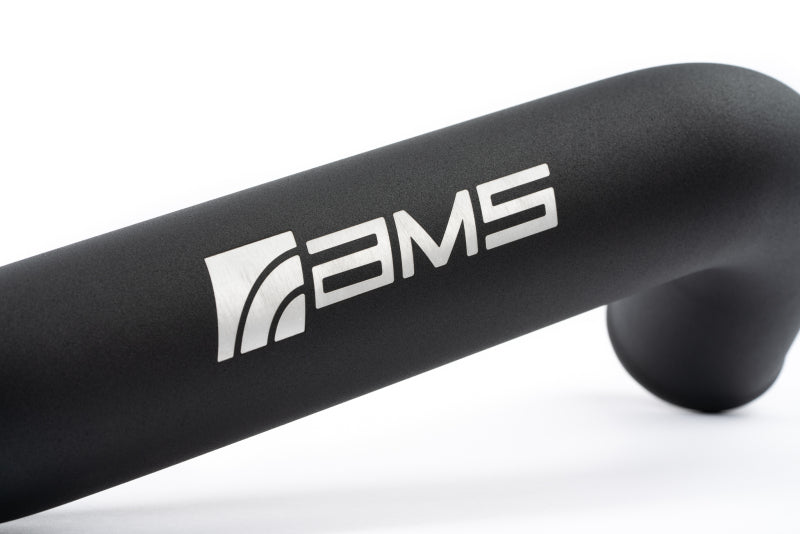

- Black powder-coated finish.

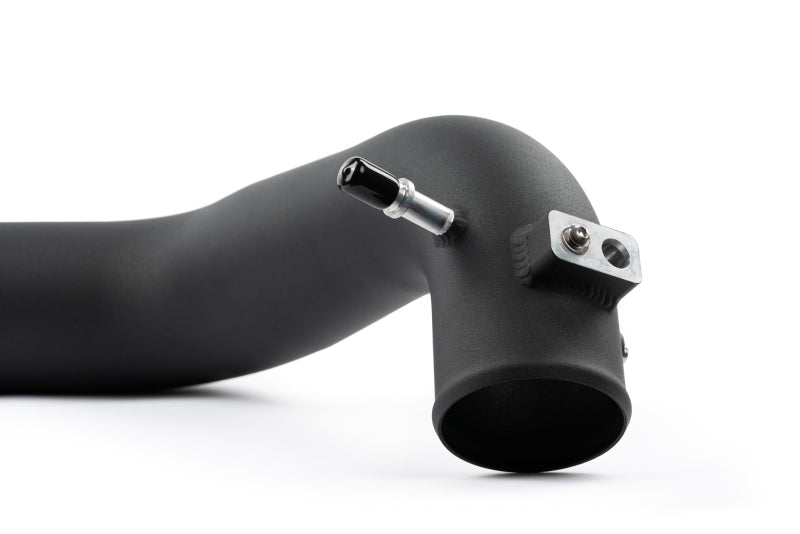

- 1/8-inch NPT port in the throttle-body inlet tube for a suitable boost-reference or auxiliary connection.
- Retains factory fittings and mounting points; AMS describes installation without cutting or trimming on the listed configuration.
Manufacturer-Listed Applications
- 2021+ Ford F-150 2.7L EcoBoost.
- 2021+ Ford F-150 3.5L EcoBoost.
- 2021+ Ford F-150 PowerBoost.
- 2021+ Ford F-150 Raptor 3.5L EcoBoost.
Confirm current model-year coverage with AMS before purchase, particularly for newly released vehicles. This listing does not establish compatibility with earlier trucks, naturally aspirated V6 or V8 engines, Raptor R, or other aftermarket intercooler layouts.
Package Scope and Compatibility
This listing is for the hot- and cold-side intercooler piping set, with the described couplers and outlet adapter. An intercooler, turbochargers, boost gauge, auxiliary sensor and injection equipment are not included in the described pipe kit. Compatibility with an existing aftermarket intercooler must be checked separately. Do not use this set with the AMS high-mount intercooler.
Specifications
- Brand: AMS Performance
- Part number: AMS.55.09.0003-1
- Product type: Intercooler / charge-pipe kit
- Coverage: Hot side and cold side
- Tube material: 6061 aluminium
- Finish: Black powder coat
- Couplers: Stepped five-ply silicone
- Auxiliary port: 1/8-inch NPT
Installation Notes
Follow the current AMS instructions, verify all joints and clearances, and secure any unused auxiliary port as directed before operation. Professional installation and a post-installation leak check are recommended. Additional equipment connected to the auxiliary port requires its own compatible hardware and appropriate setup.
No guaranteed horsepower increase, boost retention or charge-temperature reduction is claimed. Published pipe cross-sectional-area comparisons are not equivalent to measured airflow gains or engine power gains.
