Boundary Oil Pump Assembly – 1991.5–2005 Ford / Mazda BP I4 (All Types) | High-Performance Billet | Without Crank Seal | BP-S3

The Boundary Engineering oil pump assembly for the Ford/Mazda BP inline-four is the definitive high-performance oil pump upgrade for serious BP engine builds — from high-power naturally aspirated Miata builds to turbocharged and race applications where oil pressure reliability is non-negotiable. Boundary Engineering is the leading manufacturer of high-performance billet oil pumps for the performance aftermarket, with a reputation built on precision machining, superior materials, and engineering that goes far beyond what the factory pump was designed to deliver. Sold without crank seal — crank seal sold separately or reuse your existing seal if in good condition.

Why Upgrade the BP Engine’s Oil Pump?

The factory BP oil pump is adequate for a stock engine operating within its original design parameters — but it has well-documented limitations in high-performance applications. At elevated RPM, high oil temperatures, and increased bearing clearances common in built engines, the factory pump can struggle to maintain adequate oil pressure — particularly at the top of the RPM range where oil demand is highest. On a turbocharged BP build, the turbocharger’s oil feed adds additional demand to the lubrication system. On a high-revving naturally aspirated build, sustained high-RPM operation pushes the factory pump to its limits. The Boundary pump addresses these limitations with a precision-machined billet assembly engineered to deliver consistent, reliable oil pressure across the full operating range of a built BP engine.

Key Features

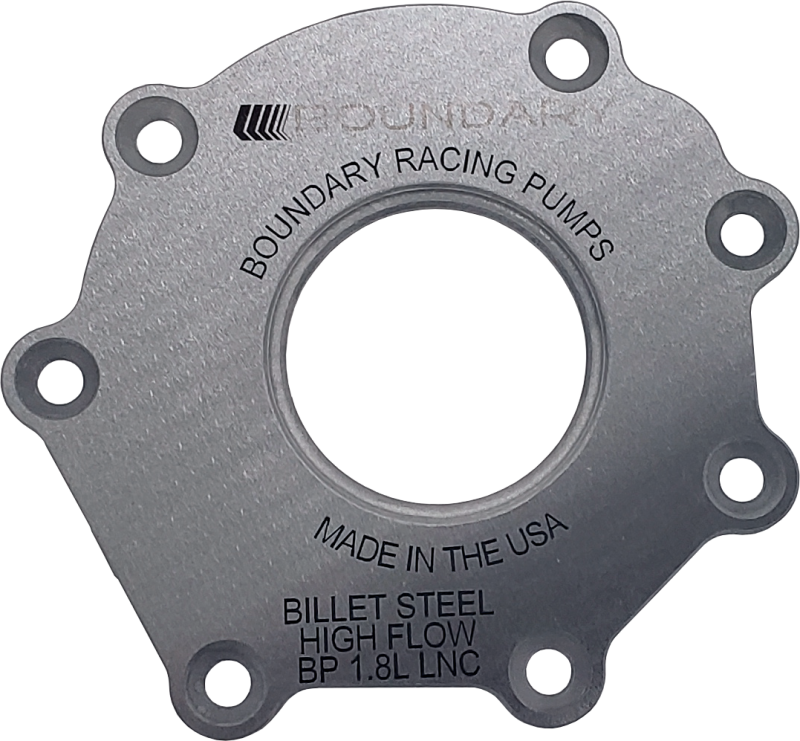

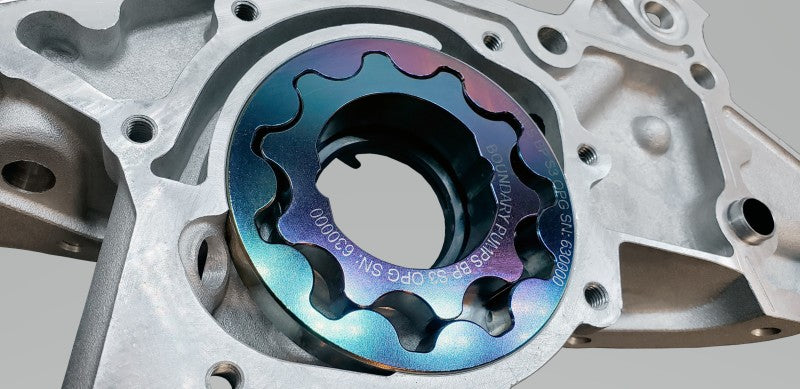

• Boundary Engineering Billet Construction: Boundary’s oil pumps are precision CNC-machined from billet material — delivering tighter tolerances, superior surface finish, and greater dimensional stability than the factory cast pump. Tighter internal clearances mean less internal leakage and more efficient oil delivery at all RPM levels, particularly at high RPM where the factory pump’s efficiency drops off
• High-Volume / High-Pressure Performance: Engineered to deliver increased oil volume and sustained oil pressure across the full RPM range of a built BP engine — ensuring adequate lubrication at the main and rod bearings, camshaft journals, and turbocharger oil feed under all operating conditions including sustained high-RPM and high-load use
• All BP Variants Covered: The BP-S3 fits all BP engine variants — BP-ZE, BP-4W, BP-6D, BP-8W — covering the full production run of the Ford/Mazda BP inline-four from 1991.5 through 2005. Verify your specific BP variant before ordering if unsure
• Direct OEM Replacement Fitment: Engineered as a direct replacement for the factory oil pump — installs in the factory location using the factory mounting hardware. No block modifications required
• Without Crank Seal: This assembly is supplied without the front crankshaft seal — allowing you to reuse your existing seal if it is in good condition, or source the correct seal separately. Always inspect the crank seal and replace it if there is any sign of leakage, hardening, or damage when the oil pump is removed
• Boundary Engineering Quality: Boundary Engineering is the benchmark for high-performance oil pumps in the domestic and import performance aftermarket — trusted by professional engine builders and race teams for applications where oil pressure reliability is critical

Recommended Applications

• High-revving naturally aspirated BP builds (cams, head work, high compression)
• Turbocharged BP engine builds — where turbo oil feed adds additional lubrication system demand
• Any built BP engine with increased bearing clearances
• Race and track-day Miata builds requiring oil pressure reliability at sustained high RPM
• Any BP engine rebuild where the factory pump is worn or has exceeded its service life

Fitment

• Mazda MX-5 Miata NA — 1.8L BP (1993–1997)
• Mazda MX-5 Miata NB — 1.8L BP (1999–2005)
• Mazda 323 / Familia — 1.8L BP (1989–2003)
• Ford Escort / Mercury Tracer — 1.8L BP (1991–1996)
• All BP engine variants: BP-ZE, BP-4W, BP-6D, BP-8W

Specifications

• Brand: Boundary Engineering
• Part Number: BP-S3
• Barcode: BP-S3
• Engine: Ford / Mazda BP I4 1.8L (All Types)
• Fitment Years: 1991.5–2005
• Construction: Billet
• Crank Seal: Not Included — sold separately
• Installation: Direct OEM Replacement

Note: Always replace the oil pump during any engine rebuild — the oil pump is the heart of the engine’s lubrication system and is inexpensive insurance relative to the cost of a bearing failure. Inspect and replace the crank seal when the pump is removed — it is not included with this assembly. Prime the oil pump before initial startup after installation to prevent dry-start bearing damage. Verify oil pressure with a mechanical gauge after installation before sustained high-RPM operation. Professional engine builder installation strongly recommended.
