EBC Racing Apollo-4 Front Big Brake Kit – 1993–2002 Toyota Supra JZA80 | Black | 330mm | BBK066BLK-1

Front axle only — rear brakes are not included. Verify wheel inner barrel clearance before ordering — 330mm calipers require sufficient wheel clearance; minimum 17” wheels recommended but caliper fitment must be confirmed for your specific wheel design.

EBC Racing BBK066BLK-1 Apollo-4 front big brake kit for the 1993–2002 Toyota Supra (JZA80). Black anodised 4-piston monoblock aluminium calipers, 330mm slotted rotors, direct-fit brackets, and EBC brake pads included. 68 lbs. Ships fast across Canada and the US.

Apollo-4 4-Piston Monoblock Calipers

EBC’s Apollo-4 calipers are fixed 4-piston monoblock units — machined from a single billet of aluminium rather than assembled from two bolted halves. Monoblock construction eliminates the flex point at the caliper split line, producing a stiffer caliper body that maintains consistent pad-to-rotor contact geometry under hard braking loads. Four pistons — two per side of the rotor — apply clamping force evenly across the full pad face, improving braking modulation and reducing the pad taper wear common with OEM sliding single-piston calipers. The result is more progressive, consistent brake feel at the pedal and more even pad wear across the service life of the pad.

330mm Slotted Rotors

The 330mm rotor diameter is a significant step up from the JZA80 Supra’s factory front rotor size. The larger diameter increases the mechanical advantage (torque per unit of clamping force) for improved stopping power, adds rotor mass for greater heat absorption capacity during extended braking events, and increases the swept area available for heat dissipation. EBC’s rotors feature slots machined into the rotor face — slots evacuate hot gases, brake dust, and debris from the pad-to-rotor interface, maintaining consistent bite and preventing pad glazing under sustained hard braking.

Wheel Clearance

The Apollo-4 caliper and 330mm rotor combination requires sufficient wheel inner barrel clearance. Before ordering, verify that your wheels provide adequate clearance for the caliper body — minimum 17” diameter is a general baseline, but clearance is specific to the wheel’s spoke design and inner barrel depth. EBC provides a caliper dimension drawing on request — compare against your wheel’s inner barrel measurement or use a clearance template before committing to the kit.

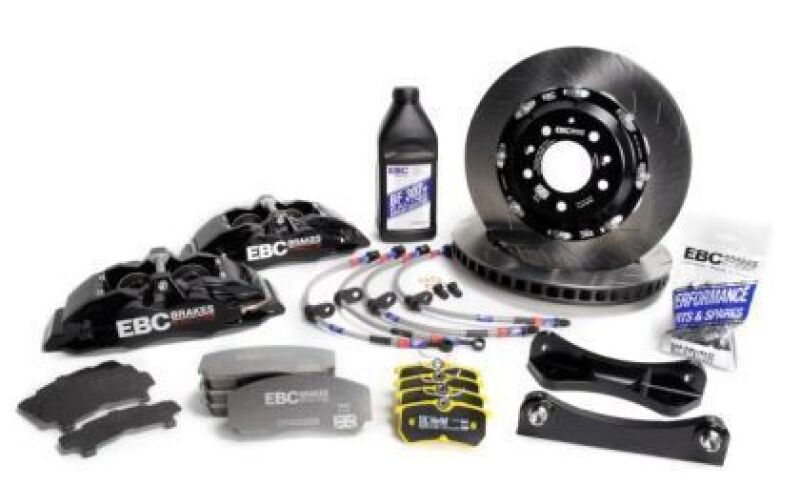

Kit Contents

• EBC Apollo-4 4-piston monoblock calipers — black anodised (pair, front)
• 330mm slotted rotors (pair, front)
• Direct-fit caliper mounting brackets
• EBC brake pads
• Hardware and fitting kit

Fitment

• 1993–2002 Toyota Supra — JZA80
• Applicable to both 2JZ-GTE (3.0TT) and 2JZ-GE variants — confirm with EBC if running the NA variant
• Front axle only

Front axle only — rear brakes not included. Verify wheel clearance before ordering. Bed new brake pads and rotors per EBC’s bedding procedure before hard use — skipping bedding on a BBK will glaze pads and significantly reduce initial braking performance. Brake fluid upgrade to at least DOT 4 or racing-spec fluid recommended for track use. Professional installation required.

Specifications

• Brand: EBC Racing
• Part Number: BBK066BLK-1
• Caliper: Apollo-4 — 4-piston monoblock aluminium
• Caliper Finish: Black anodised
• Rotor Diameter: 330mm
• Rotor Type: Slotted
• Axle: Front only
• Weight: 68 lbs
• Application: 1993–2002 Toyota Supra JZA80
