GrimmSpeed Top Mount Intercooler, 2015–2021 Subaru WRX, Thermal Dispersant Coating | GRM090071

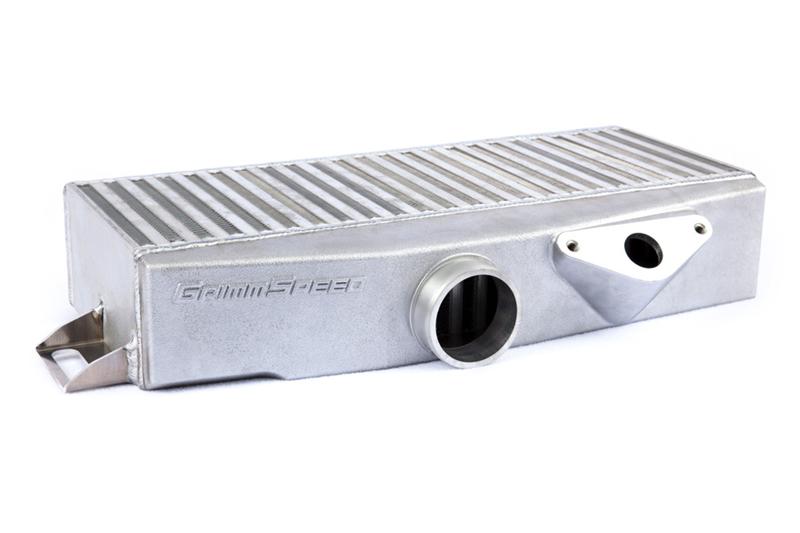

GrimmSpeed Thermal Dispersant Coated Top Mount Intercooler for Subaru WRX
The GrimmSpeed GRM090071 top mount intercooler combines a black thermal dispersant coating with a cross-flow bar-and-plate core, cast aluminum end tanks and TIG-welded construction. Its integrated two-piece splitter directs air from across the factory hood scoop into the core, pairing the larger heat exchanger with a dedicated airflow path. Ships fast across Canada and the US.
Features
- Black thermal dispersant coated version, distinct from the raw aluminum kit.
- 13.1 × 10 × 3.75-inch cross-flow bar-and-plate core.
- Cast aluminum end tanks with machined splitter mounting features.
- TIG-welded construction.
- Reinforced five-ply silicone coupler connection.
- Integrated two-piece splitter designed to feed hood-scoop air through the intercooler.
- Plugged 1/8 NPT port in the outlet end tank for a future water/methanol installation.
- Reuses factory vibration-isolating mounts.
Specifications
- Brand: GrimmSpeed
- Part number: GRM090071
- Product type: Top mount intercooler kit
- Application: 2015–2021 Subaru WRX
- Chassis: VA
- Engine: FA20DIT
- Core dimensions: 13.1 × 10 × 3.75 inches
- Core construction: Cross-flow bar-and-plate
- End tanks: Cast aluminum
- Finish: Black thermal dispersant coating
Kit Contents and Compatibility
The kit includes the intercooler, two-piece hood-scoop splitter, throttle-body silicone coupler and clamps. An upgraded GrimmSpeed charge pipe is not required as part of the kit and is sold separately. This is not a front-mount conversion or a water/methanol injection kit.
Installation Notes
Follow GrimmSpeed's installation instructions, including splitter installation and factory mount reuse. Check coupler seating, clamp positioning and clearance before tightening, then inspect the charge-air system for leaks. Keep the unused 1/8 NPT port sealed. Discuss calibration requirements with your tuner for the vehicle's complete modification package; no specific horsepower gain, temperature reduction or knock-prevention guarantee is made.
