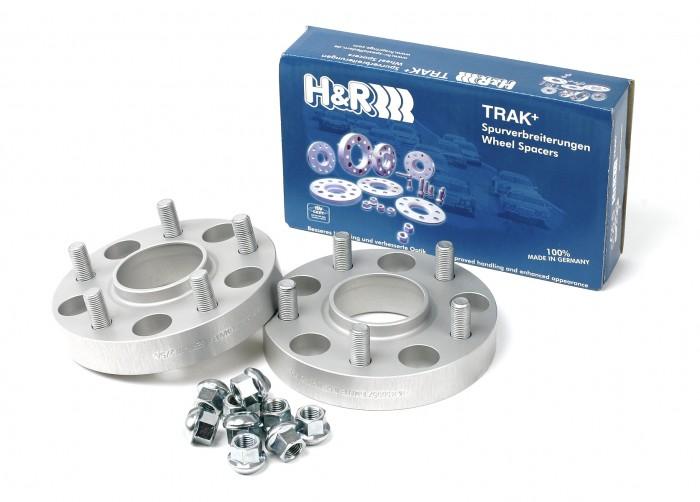

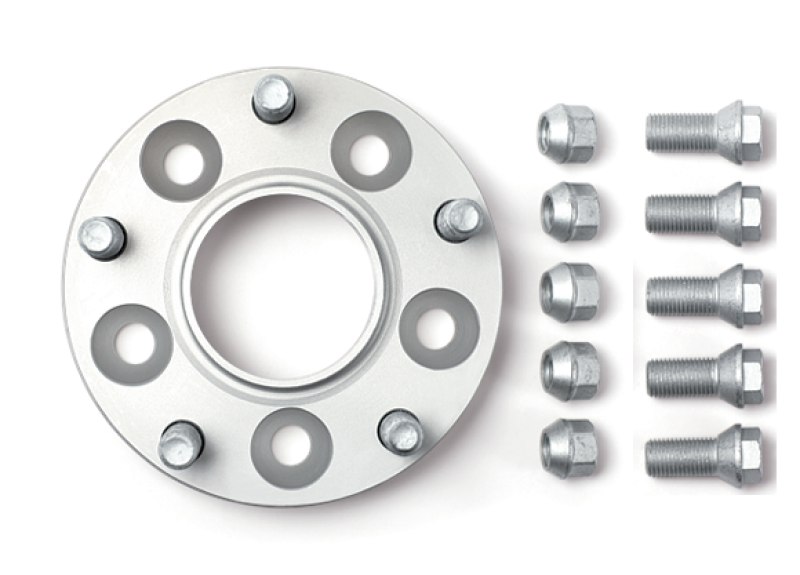

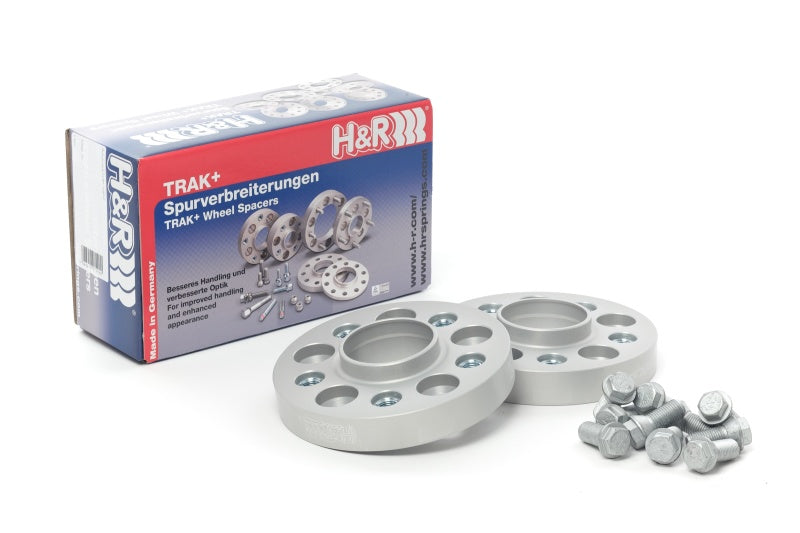

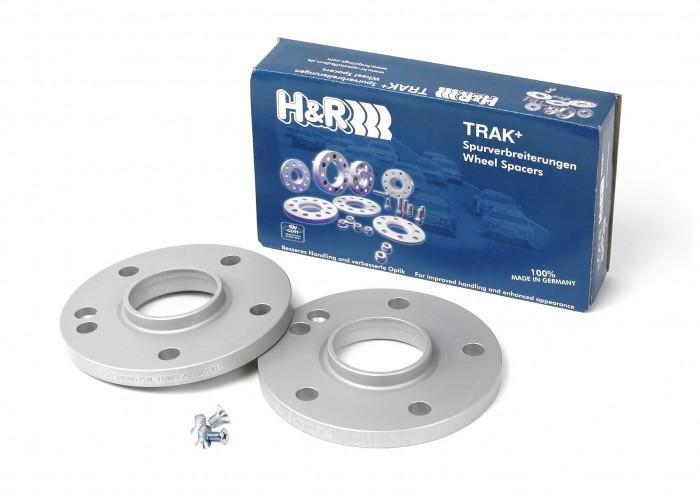

H&R Trak+ DRA Wheel Adapter – 30mm | 5x108 (63.3CB / 12x1.5) → 5x100 (57.1CB) | Hub-Centric | Set of 2

Run 5x100 wheels on a 5x108 vehicle hub with the H&R Trak+ DRA Wheel Adapter — H&R's precision hub-centric bolt pattern conversion adapter that allows you to fit wheels with a 5x100 bolt pattern and 57.1mm center bore onto vehicles with a 5x108 hub bolt pattern and 63.3mm center bore. At 30mm thick, this adapter also adds 30mm of additional wheel offset per side. Sold as a set of 2. H&R's Trak+ DRA (Dual Row Adapter) design is hub-centric on both the vehicle hub side and the wheel side for safe, vibration-free fitment.

⚠️ Safety-Critical Component – Verify Fitment Before Ordering: Wheel adapters are safety-critical components. Verify that this adapter is correct for your specific vehicle's hub bolt pattern (5x108), center bore (63.3mm), and stud thread pitch (12x1.5) before ordering. Incorrect fitment can result in wheel separation. Professional installation and torque verification are required.

Key Features

• Bolt Pattern Conversion – 5x108 to 5x100: Converts a 5x108 vehicle hub bolt pattern to a 5x100 wheel bolt pattern — allows fitting 5x100 wheels (common on Subaru, older Volkswagen/Audi, Toyota) onto 5x108 vehicle hubs (common on newer Volkswagen/Audi, Ford Focus/Fusion, Volvo, Jaguar, and others). Verify your specific vehicle's hub bolt pattern before ordering
• Hub-Centric on Both Sides – Vibration-Free Fitment: H&R's Trak+ DRA design is hub-centric on both the vehicle hub side (63.3mm CB) and the wheel side (57.1mm CB) — the adapter centers precisely on the vehicle hub and the wheel centers precisely on the adapter, eliminating vibration from wheel imbalance caused by non-hub-centric (lug-centric) adapters
• DRA (Dual Row Adapter) – H&R's Bolt Pattern Conversion Design: H&R's DRA (Dual Row Adapter) construction features two independent sets of studs — one row interfaces with the vehicle hub, the other row accepts the wheel — for a secure, engineered bolt pattern conversion solution
• 30mm Thickness – Adds Offset Per Side: 30mm adapter thickness adds 30mm of additional wheel offset per side — verify that 30mm of additional offset is appropriate for your specific vehicle and desired wheel fitment before ordering. Incorrect offset can cause clearance issues with brakes, suspension, and fenders
• 12x1.5 Vehicle-Side Stud Thread Pitch: Vehicle-side stud thread pitch of 12x1.5 — verify this matches your vehicle's lug nut thread pitch before ordering
• Set of 2: Sold as a set of 2 adapters — covers one axle (front or rear). A second set is required for a full 4-corner fitment
• H&R Quality: Manufactured by H&R — a leading German suspension and wheel fitment component manufacturer trusted by enthusiasts and OEMs worldwide for precision wheel spacers, adapters, and suspension components

Specifications

• Type: Wheel Adapter (Bolt Pattern Conversion)
• Series: Trak+ DRA (Dual Row Adapter)
• Thickness: 30mm
• Vehicle Hub: 5x108 / 63.3mm Center Bore / 12x1.5 Stud Pitch
• Wheel Side: 5x100 / 57.1mm Center Bore
• Construction: Hub-Centric (Both Sides)
• Quantity: Set of 2
• Part Number: 603256331

Note: Safety-critical component — verify vehicle hub bolt pattern (5x108), center bore (63.3mm), and stud thread pitch (12x1.5) before ordering. Verify wheel bolt pattern (5x100) and center bore (57.1mm) before ordering. Set of 2 covers one axle only — order two sets for full 4-corner fitment. A full alignment check is recommended after installation. Professional installation with proper torque specification and re-torque after initial driving is strongly recommended. Always check local regulations regarding wheel adapter use on street-driven vehicles.
