ISR Performance PRO Front Tension Rods – 2009–2016 Hyundai Genesis Coupe BK1 / BK2 | IS-EL-019-PRO

ISR Performance PRO front tension rods for the 2009–2016 Hyundai Genesis Coupe (BK1 and BK2). Adjustable length with pillow ball chassis mount. Corrects front caster on lowered and modified Genesis Coupes and provides a solid, deflection-free front geometry platform for track and drift use. Pair — left and right. 9.6 lbs.

What Tension Rods Do

The Genesis Coupe uses a front MacPherson strut suspension with a lower control arm. The tension rod (also called a compression rod or radius rod) connects the forward point of the lower control arm to the chassis, controlling the fore-aft position of the arm and the front wheel. Under hard braking, the tension rod resists the rearward force acting on the lower arm — preventing the wheel from moving rearward and toe-out under braking. The tension rod’s length also determines the front caster angle — changing the rod length moves the lower arm fore or aft, rotating the steering axis and adjusting caster.

Why Aftermarket Tension Rods

The factory Genesis Coupe tension rod is a fixed-length unit with a rubber bushing at the chassis mount point. On a lowered car, the factory geometry pushes the front wheels forward slightly, reducing caster from the OEM specification — resulting in reduced steering return-to-centre, less straight-line stability, and a vague front-end feel. Aftermarket adjustable tension rods allow caster to be dialled back in (or increased beyond stock) by adjusting the rod length to reposition the lower arm. This is a critical alignment correction for any significantly lowered Genesis Coupe.

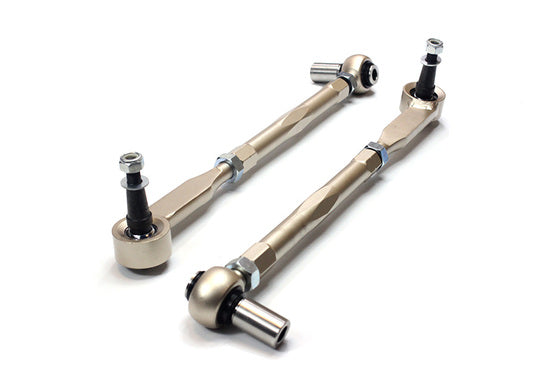

PRO Spec — Pillow Ball Chassis Mount

The PRO spec uses a pillow ball (spherical rod end) chassis mount rather than a polyurethane bushing. A pillow ball has zero compliance — it allows rotation in all planes without any deflection under load. Under hard braking or cornering inputs, the front geometry stays exactly where the alignment set it — the tension rod does not flex or deflect at the chassis mount point. This is the maximum-precision option and is the choice for track, time attack, and drift builds where geometry consistency under load is the priority. The trade-off is increased NVH transmission compared to rubber or polyurethane mount options.

Adjustable Length

ISR’s PRO tension rods are threaded and adjustable in length, allowing front caster to be set precisely during alignment. Adjustment range accommodates a wide range of ride heights and suspension setups — from mildly lowered street builds to aggressive track and drift configurations.

Fitment

• 2010–2012 Hyundai Genesis Coupe BK1 — all engines
• 2013–2016 Hyundai Genesis Coupe BK2 — all engines
• Pair — left and right front tension rods

Pillow ball mount — increased NVH expected. Full front wheel alignment required after installation. Torque all hardware to specification. Inspect tension rod hardware periodically for wear and secure fastening. Professional installation recommended.

Specifications

• Brand: ISR Performance
• Part Number: IS-EL-019-PRO
• Type: Front tension rods — PRO spec
• Chassis Mount: Pillow ball (spherical rod end)
• Length: Adjustable
• Quantity: Pair (left + right)
• Weight: 9.6 lbs (pair)
• Application: 2009–2016 Hyundai Genesis Coupe BK1 / BK2
