McLeod Ford Clutch Alignment Tool, 1-3/8-inch × 10 Spline

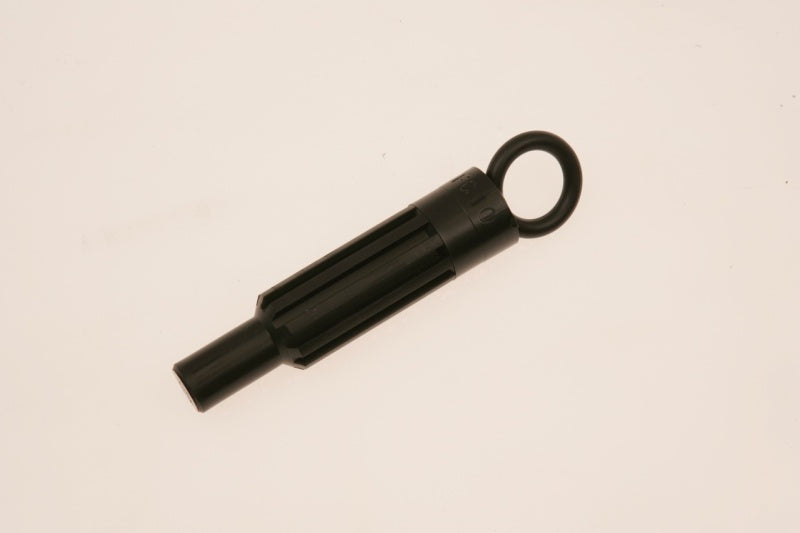

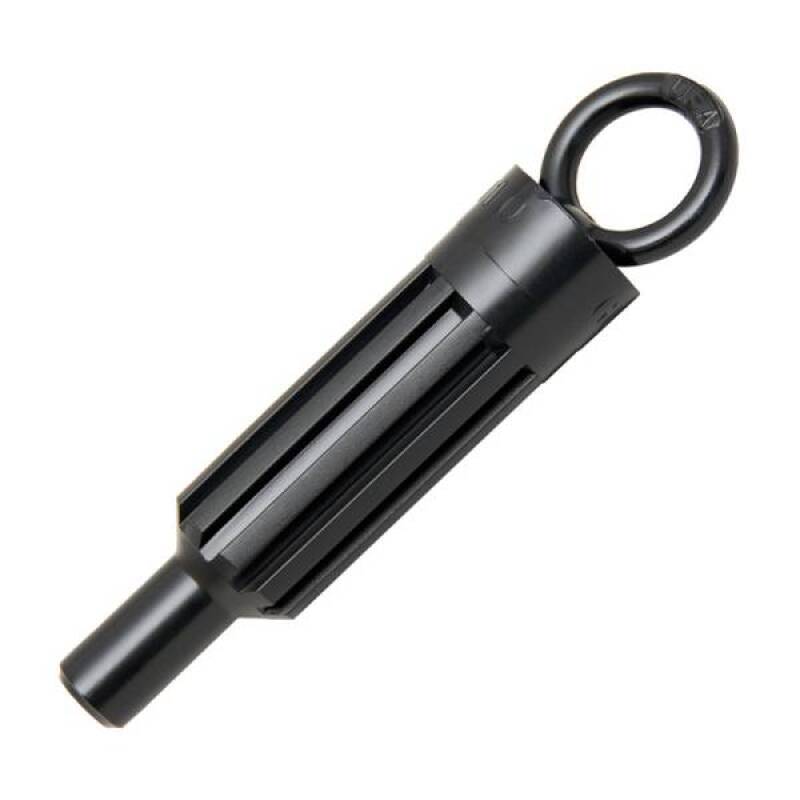

The McLeod 105325 plastic clutch alignment tool helps centre a compatible clutch disc relative to the pilot bearing or bushing during clutch installation. Its application-specific spline and pilot profile supports disc positioning while the pressure plate is installed according to the clutch manufacturer's procedure. Ships fast across Canada and the US.

Features

• Plastic alignment tool for compatible Ford-type clutch applications.
• 1-3/8-inch / 1.375-inch spline diameter.
• 10-spline profile.
• 0.670-inch pilot diameter.
• Sold individually.

Specifications

• Brand: McLeod Racing
• Part number: 105325
• Product type: Clutch alignment tool
• Material: Plastic
• Spline diameter: 1-3/8 inches
• Spline count: 10
• Pilot diameter: 0.670 inches
• Quantity: One tool

Compatibility

Select this tool by the clutch disc's hub spline and the pilot bearing or bushing bore, not by clutch friction diameter or vehicle make alone. A 10-spline clutch with a different spline diameter or pilot size is not established as compatible. No specific Ford model, model year or gearbox fitment is guaranteed by this listing.

Installation Notes

Follow the clutch manufacturer's installation sequence and torque specifications. Check that the tool engages without force, supports the disc in the correct orientation and can be withdrawn after the pressure plate is secured. Do not force mismatched splines or use transmission mounting bolts to pull a misaligned transmission into place.

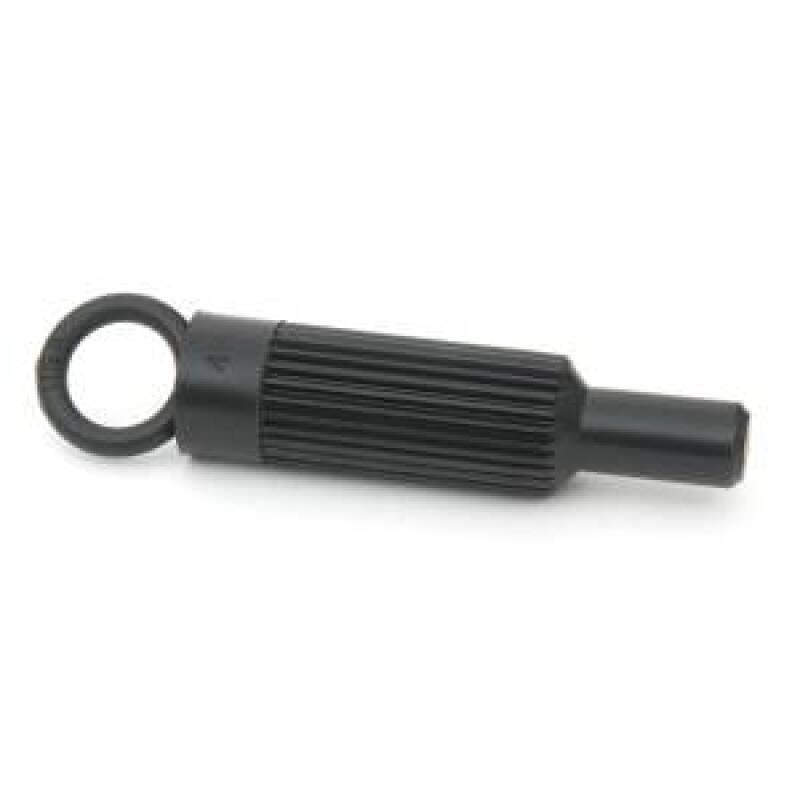

This listing is for the alignment tool only. A clutch disc, pressure plate, pilot bearing/bushing and other installation hardware are not included in the described item. McLeod also offers other tool materials and sizes; those range options do not make this plastic 105325 a billet-steel tool.
