McLeod Super Street Pro Ford 12-Inch Clutch Kit, 1⅛-Inch × 26 Spline | 75236
McLeod Super Street Pro Ford 12-Inch Clutch Kit | 75236

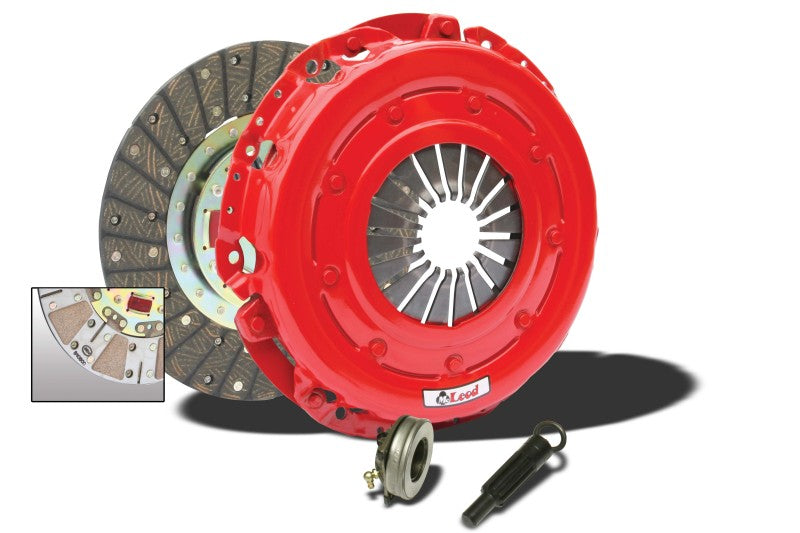

The McLeod 75236 Super Street Pro is a single-disc Ford clutch kit with a 12-inch disc and diaphragm-style pressure plate, configured for a 1⅛-inch, 26-spline transmission input shaft. It pairs a high-clamp-load pressure plate with a dual-faced organic/ceramic disc for a performance-oriented street clutch setup. Ships fast across Canada and the US.
Specifications
- Brand: McLeod Racing.
- Product line: Super Street Pro.
- Manufacturer part number: 75236.
- Configuration: Single-disc clutch kit.
- Disc diameter: 12 inches.
- Input shaft diameter: 1⅛ inches, also written 1.125 inches.
- Input spline count: 26.
- Pressure plate style: Diaphragm.

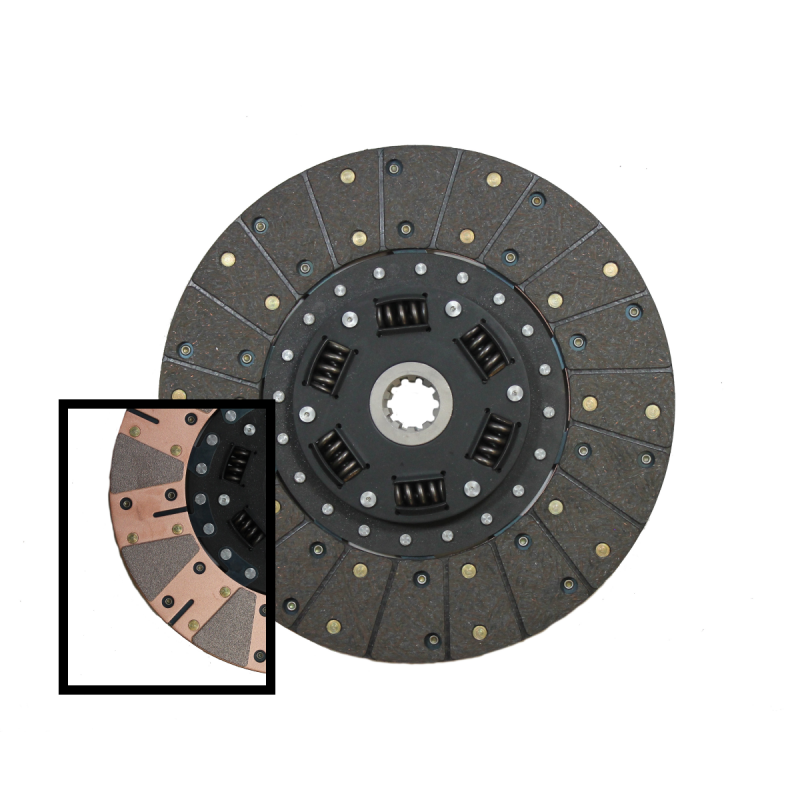

- Disc friction material: Dual-faced organic/ceramic.
- Catalog application family: Selected 1963–1980 Ford combinations with an aftermarket transmission.
Application Planning
The catalog cross-references include selected classic Ford passenger cars and trucks, but the transmission input specification remains essential. A listed Mustang, Fairlane, Galaxie, Torino, Ranchero or F-Series application is not a guarantee of compatibility with its original transmission or every engine/flywheel combination. Confirm the actual installed driveline with McLeod or a qualified installer.
Kit Components and Performance

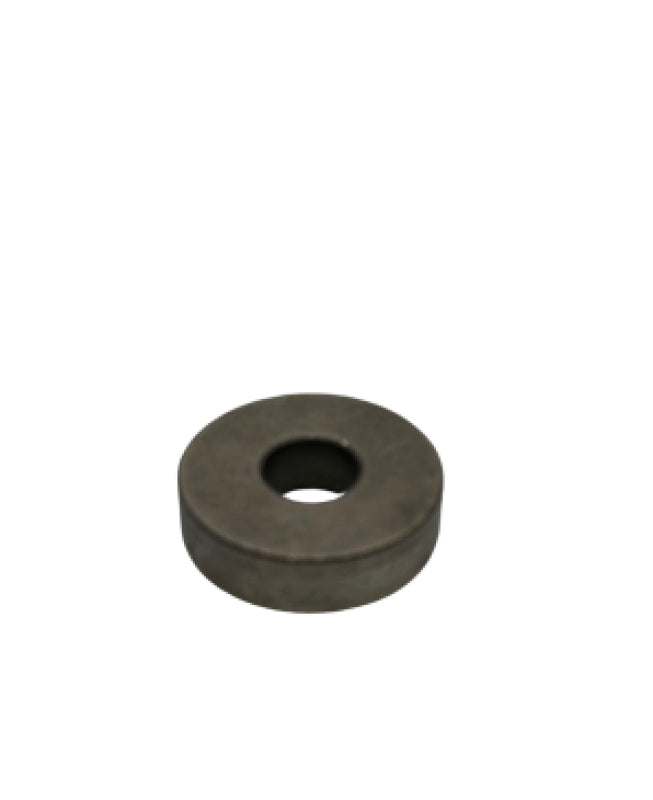

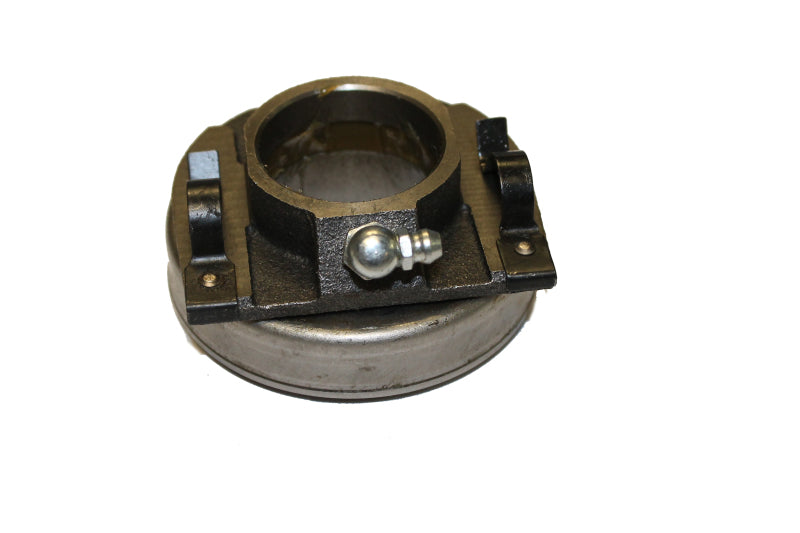

The kit is described with a pressure plate, dual-faced clutch disc and alignment tool. Release-bearing and pilot-bushing inclusion is application-dependent in the available kit descriptions, so confirm the supplied package and bearing requirements before scheduling installation. Do not assume a flywheel, mounting hardware or hydraulic release system is included.
The exact-kit reseller description advertises capability up to 550 horsepower. Treat that as a manufacturer-style application guideline, not a torque rating, wheel-horsepower guarantee or assurance for every vehicle weight, tire or launch condition. Discuss intended use and the complete driveline with your installer.
Installation Notes
Follow McLeod's instructions for flywheel preparation, fastener tightening, clutch alignment, release travel and break-in. Check the flywheel, pilot support and release components for suitability and wear before assembly. Verify disc orientation and clearances throughout operation. No blanket vehicle fitment or safety certification is asserted here.
