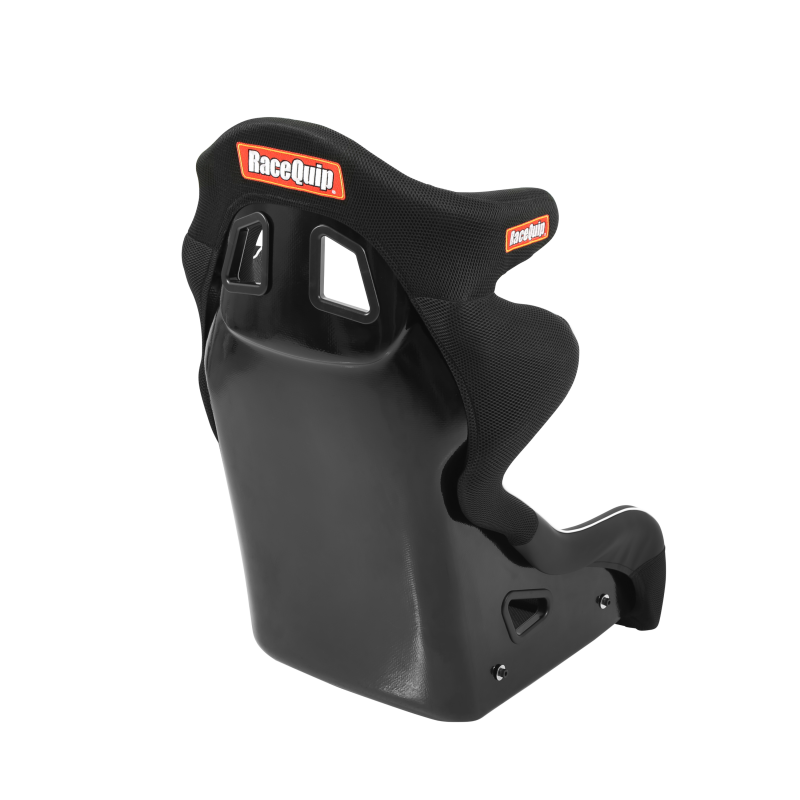

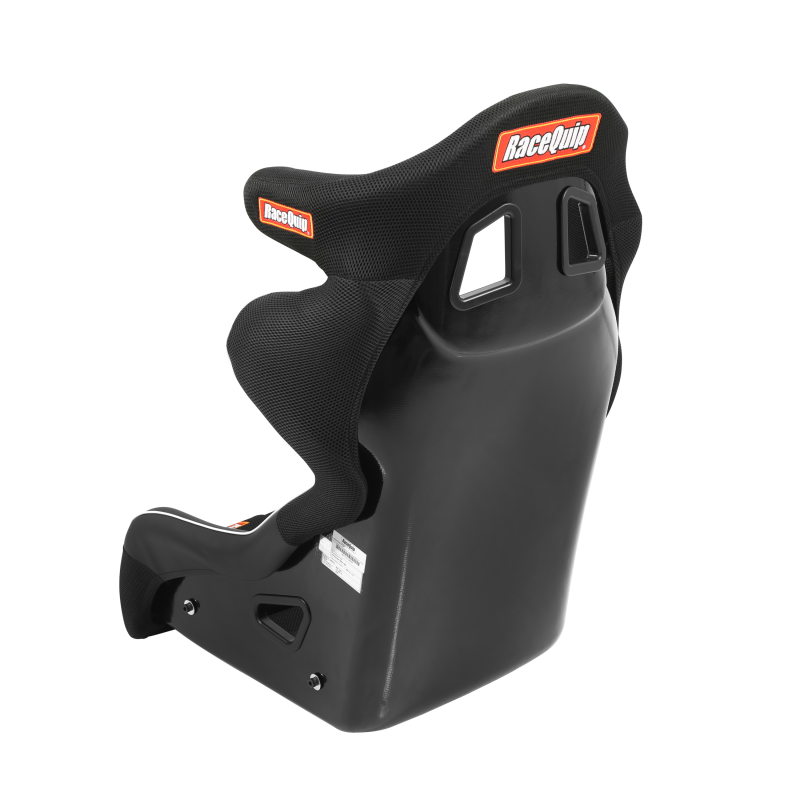

RaceQuip FIA Full Containment Racing Seat, Large 16-Inch, Black | 96995599RQP

$1,231.93 CAD $1,385.93 CAD
SKU: RQP96995599RQP
3 available


Free shipping on most orders over $150

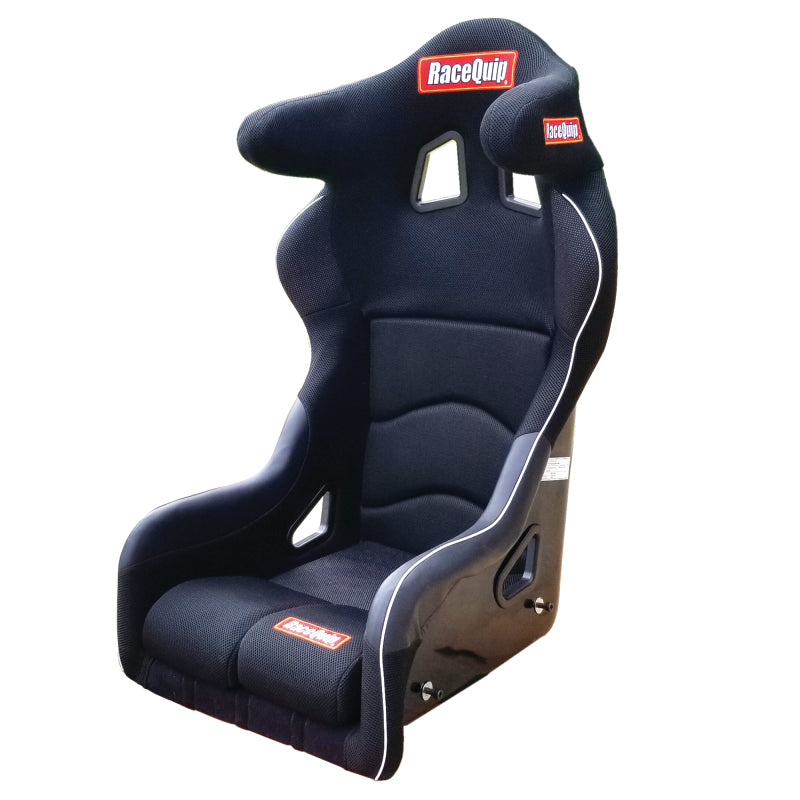

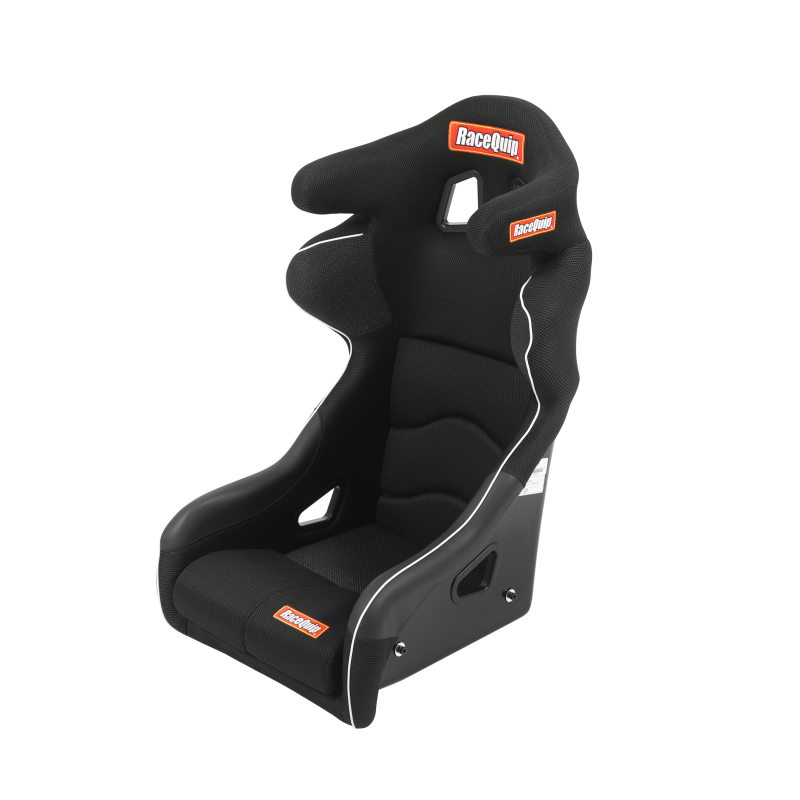

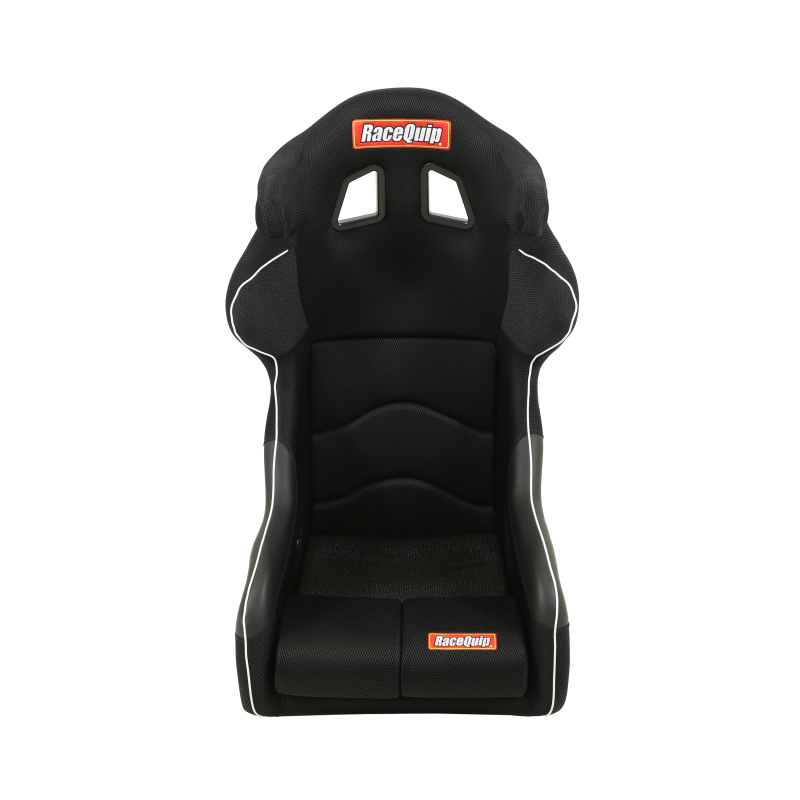

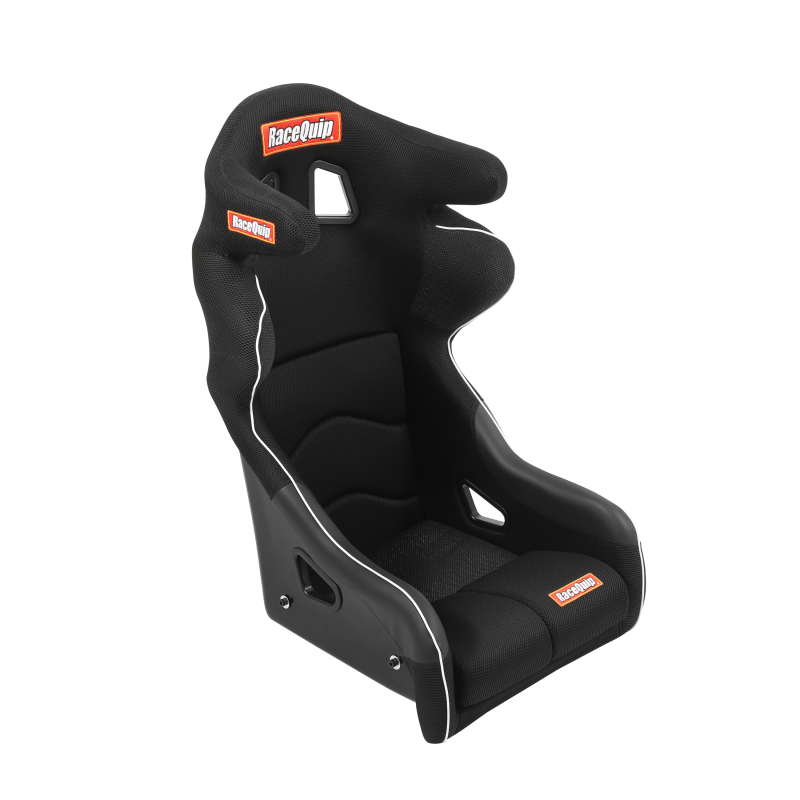

RaceQuip Large Full Containment Composite Racing Seat

Check driver fit, cockpit clearance and event eligibility: Large is the manufacturer's nominal 16-inch size, not the seat's overall external width. Confirm the full dimensional drawing, helmet/head-restraint clearance, harness routing and safe entry and exit before ordering. Mounting brackets are not included. The model is listed to FIA 8855-1999; verify the actual seat's homologation label, dates and your event's current rules before use. No particular expiry date or event acceptance is guaranteed.

The RaceQuip 96995599RQP Large full containment racing seat combines a one-piece FRP composite shell with extended shoulder, rib, hip and thigh support. Integrated halo sections provide additional lateral head support, while padded seat and back cushions help support the driver during a race session. Supplied in black in the manufacturer's 16-inch Large size. Ships fast across Canada and the US.

Design Features

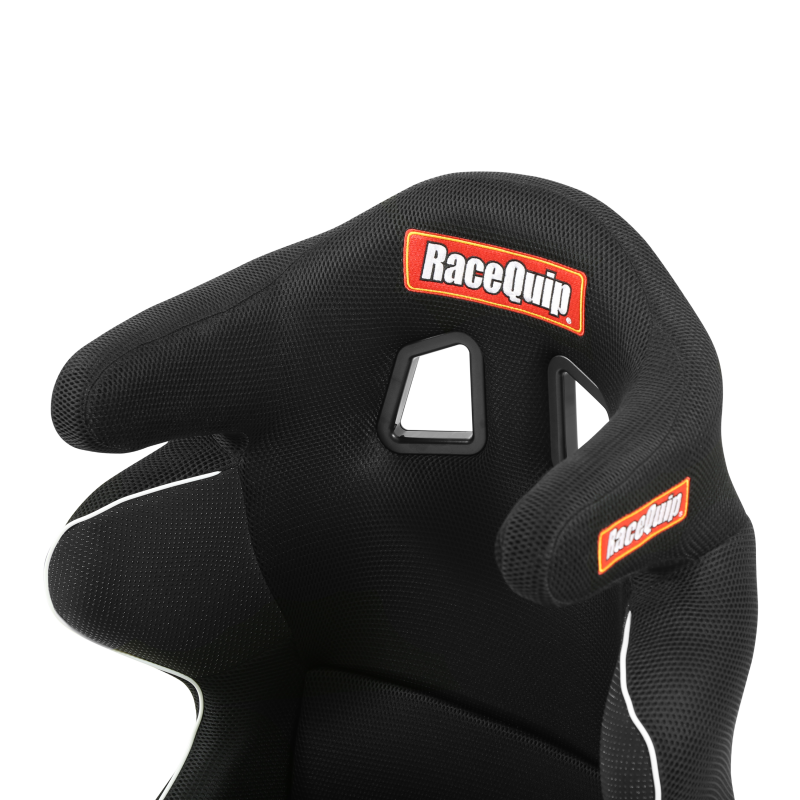

  • Full-containment design with integrated head-support halo sections.

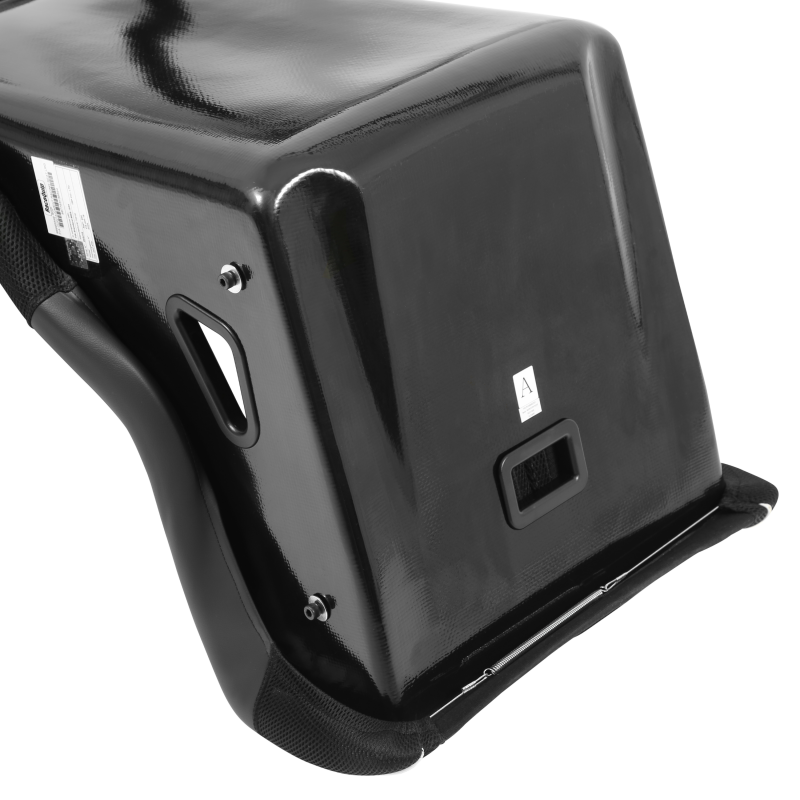

  • One-piece, hand-laid FRP composite shell.
  • Extended shoulder and rib bolsters with hip and thigh support.

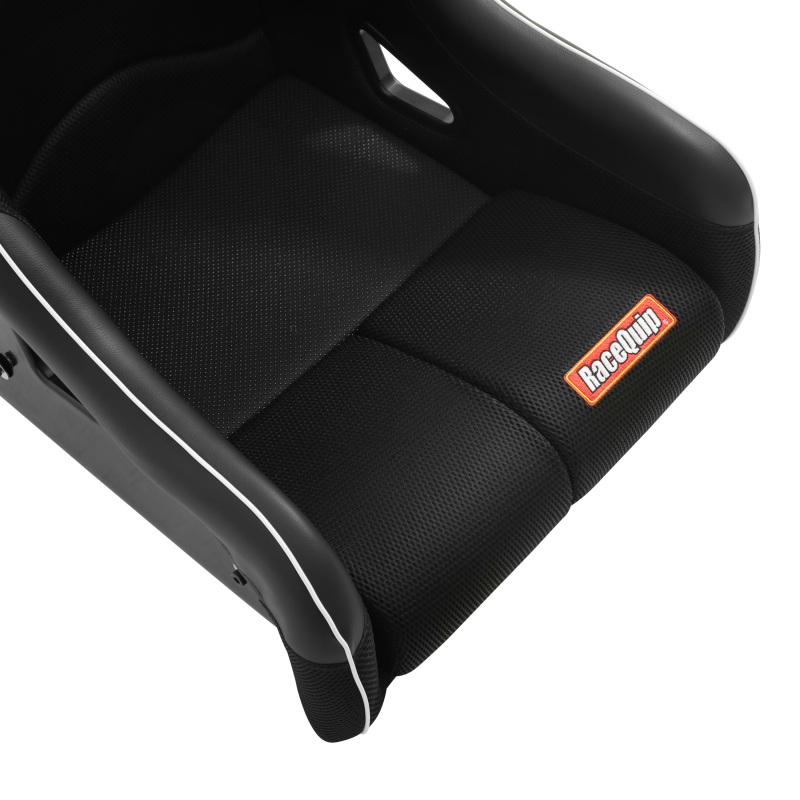

  • Memory-foam seat-bottom and back cushions.
  • Black mesh upholstery with smoother material in high-wear areas.
  • Black gelcoat finish on exposed shell areas.

Harness and Mounting Details

  • Five belt guides described for routing compatible 4-, 5- or 6-point harness systems.

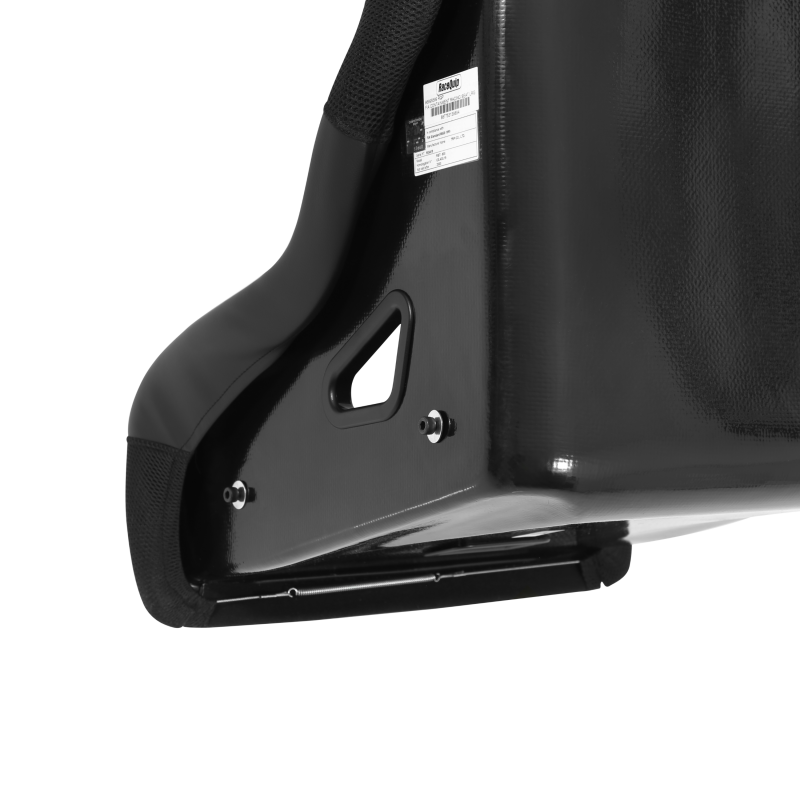

  • Four built-in 8 mm threaded side-mount attachment points.
  • Mounting brackets sold separately.
  • Manufacturer-listed approximate seat weight: 23 lb.

Harness guide availability does not establish approval for every harness configuration or event. Select and install the seat, mounts, harness and head-and-neck restraint as a compatible system using their manufacturers' instructions.

Specifications

  • Brand: RaceQuip
  • Part number: 96995599RQP
  • Size: Large, nominal 16-inch designation
  • Colour: Black
  • Construction: FRP composite
  • Design: Full containment
  • Published model certification: FIA 8855-1999
  • Mounting: Side mount; brackets not included

Fit and Installation Notes

This is not a vehicle-specific bolt-in seat. Measure the driver and cockpit, including the halo and shoulder areas, and check harness opening positions with the driver seated in their racing equipment. The 16-inch size designation alone is not enough to establish driver or vehicle fit.

Have a qualified motorsport installer confirm suitable brackets, structural mounting, fasteners and clearances using the current RaceQuip instructions. Inspect the supplied homologation label and seat condition before installation. Do not assume compatibility with every head-and-neck restraint or that the racing seat replaces a complete, properly configured safety system.
