Turbosmart TS-2-6262B Water-Cooled Mirror Twin Turbo Package, 0.82 A/R

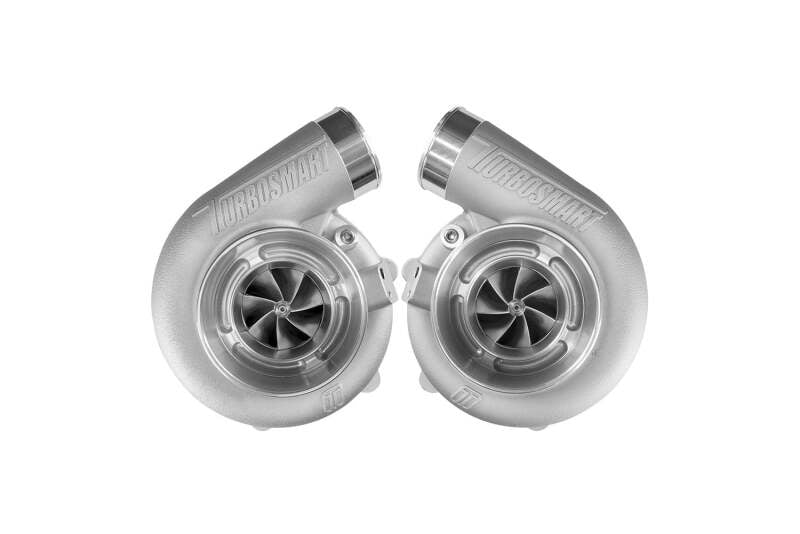

Build a symmetrical twin-turbo layout with the Turbosmart TS-2-6262B mirror package, pairing one regular-rotation turbocharger with one reverse-rotation turbocharger. This water-cooled TS-2 configuration uses V-band turbine connections and 0.82 A/R turbine housings. Ships fast across Canada and the US.
Mirror-Pair Configuration
- Two TS-2-6262B turbochargers: one regular rotation and one reverse rotation.
- Water-cooled TS-2 centre housings.
- 0.82 A/R turbine housings with V-band inlet and outlet connections.
- Proprietary dual ceramic bearing system.
- VSR speed-balanced rotating assemblies.
Construction
- 2618 aluminium compressor wheels with 7+7 splitter-blade design.
- Lightweight aluminium compressor covers.
- Investment-cast 310S stainless steel turbine housings.
- 713C Inconel turbine wheels.
- Integrated iron backplates on the centre housings.
Specifications
- Manufacturer part number: TS-2-6262B-VB082E-MT.
- Turbocharger model: TS-2-6262B.
- Package quantity: two turbochargers, in opposing rotation configurations.
- Turbine housing A/R: 0.82.
- Compressor inlet: 4 inches / 101.6 mm.
- Turbine inlet connection: 2.25-inch V-band.
- Turbine outlet connection: 3-inch V-band.
- Turbine exducer: 62 mm.
Included Components
The package includes the regular-rotation and reverse-rotation turbochargers. Turbosmart lists weld flanges, V-band clamps, gaskets, and oil feed and drain fittings with its turbochargers. Confirm the exact supplied fittings against your installation plan; supplied turbo hardware does not make this a complete vehicle conversion system.
Installation Planning
Plan compatible manifolds, exhaust and charge piping, boost control, oil supply and drainage, coolant plumbing and heat management for the specific build. Match each turbocharger to its intended rotation and housing orientation. Verify engine, fuel system and drivetrain suitability with your installer and tuner before choosing operating boost and power targets.
