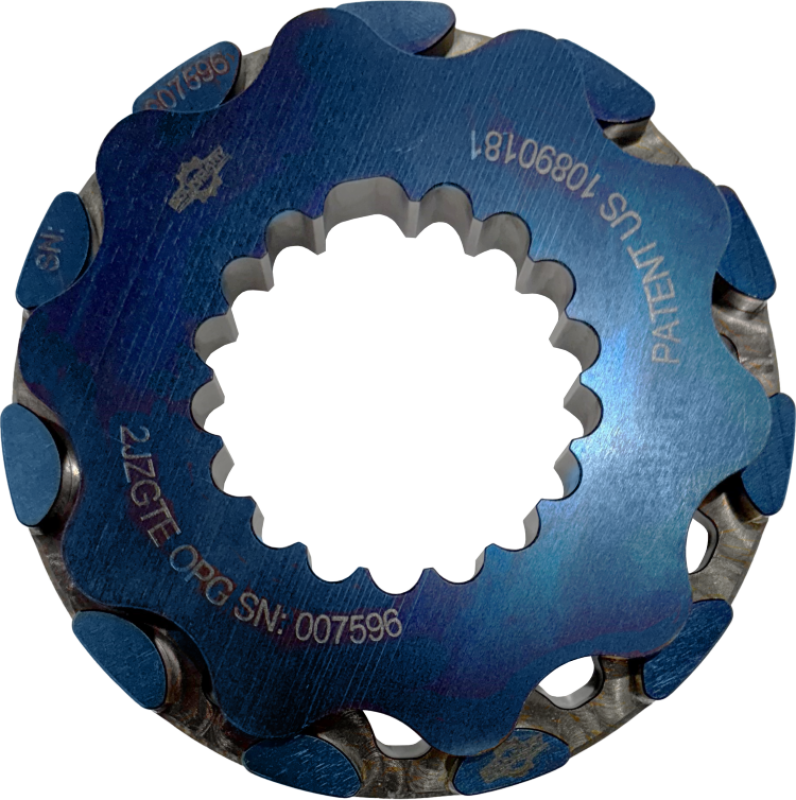

Boundary Dual Rotor Billet Oil Pump Gear – 1993-2002 Toyota 2JZ | MartenWear Treated

Protect your 2JZ’s oiling system at the highest level with the Boundary Dual Rotor Billet Oil Pump Gear — a precision-machined billet oil pump gear set engineered for the Toyota 2JZ engine, featuring Boundary’s proprietary MartenWear surface treatment for superior wear resistance and longevity. The dual rotor design and billet construction address the known limitations of the factory 2JZ oil pump gears under high-RPM, high-boost, and sustained performance operating conditions — delivering reliable, consistent oil pressure at the extreme demands of a built 2JZ engine. A critical oiling system upgrade for any serious 2JZ build.

Key Features:

• Dual rotor design — precision-machined dual rotor gear set for improved oil pump efficiency and flow consistency versus the factory gear set
• Billet construction — machined from high-strength billet steel for superior dimensional accuracy, surface finish, and fatigue resistance versus factory cast or sintered gears
• MartenWear surface treatment — Boundary’s proprietary martensitic surface hardening treatment that dramatically increases gear surface hardness and wear resistance for extended service life under high-load conditions
• 2JZ specific — engineered for the Toyota 2JZ-GE and 2JZ-GTE engine oil pump geometry
• Precision tolerances — machined to tighter tolerances than factory gears for reduced internal leakage and improved volumetric efficiency
• Boundary Engineering quality — engineered by the leading specialist in high-performance oil pump components for import performance platforms

Performance Benefits:

• MartenWear Surface Hardness: Boundary’s proprietary MartenWear treatment applies a martensitic surface hardening process to the gear contact surfaces — dramatically increasing surface hardness and wear resistance compared to untreated billet or factory sintered gears. Harder gear surfaces resist the micro-pitting and wear that degrades oil pump efficiency over time, maintaining consistent clearances and oil pressure throughout the gear set’s service life
• Billet Precision: Billet machining produces gears with superior dimensional accuracy and surface finish compared to the factory cast or sintered powder metal gears — tighter tolerances mean less internal leakage past the gear faces, improving volumetric efficiency and maintaining higher effective oil pressure at the pump outlet
• High-RPM Reliability: Factory 2JZ oil pump gears can cavitate and wear at the sustained high-RPM operation of a built, high-boost 2JZ — Boundary’s billet construction and MartenWear treatment ensure the gear set maintains consistent performance and clearances at the RPM levels that serious 2JZ builds operate at
• Consistent Oil Pressure: Tighter machining tolerances and superior surface finish reduce internal pump leakage, maintaining more consistent oil pressure across the full RPM range — critical for protecting the 2JZ’s main bearings, rod bearings, and VVT-i system (GE) or turbo oil feed (GTE) at high RPM
• Long-Term Durability: MartenWear-treated billet gears outlast factory sintered gears significantly under high-performance operating conditions — a one-time investment in oiling system reliability that protects a far more expensive engine build

Specifications:

• Brand: Boundary Engineering
• Part Number: 2JZ-OPG-DR
• Design: Dual rotor
• Material: Billet steel
• Surface Treatment: MartenWear (martensitic surface hardening)
• Application: Toyota 2JZ-GE / 2JZ-GTE — 1993–2002

Fitment Information:

• 1993–2002 Toyota Supra (A80) — 2JZ-GE (naturally aspirated) and 2JZ-GTE (twin-turbo)
• 1993–2005 Lexus GS300 — 2JZ-GE
• 2001–2005 Lexus IS300 — 2JZ-GE
• Other 2JZ-GE and 2JZ-GTE applications — verify fitment with Boundary Engineering for your specific application
• Note: Verify compatibility with your specific 2JZ variant and oil pump housing before ordering. Confirm fitment with Boundary Engineering for your exact application.
• Installation: Professional installation by an experienced engine builder strongly recommended — oil pump gear replacement requires engine disassembly

What’s Included:

• Boundary dual rotor billet oil pump gear set – MartenWear treated (2JZ-OPG-DR)
• Installation instructions

Installation Notes:

• Professional installation by an experienced engine builder strongly recommended
• Measure oil pump housing clearances before installation to verify correct gear-to-housing fit
• Inspect the oil pump housing for wear or scoring and replace if necessary
• Use fresh engine oil on all gear surfaces during assembly
• Prime the oil pump before initial engine startup after installation
• Verify oil pressure with a mechanical gauge after installation before returning the engine to full-load operation

MartenWear – Boundary’s Proprietary Surface Treatment:

MartenWear is Boundary Engineering’s proprietary martensitic surface hardening treatment — a precision heat treatment process that transforms the surface layer of the billet steel gear into a martensitic microstructure with dramatically increased hardness. Martensite is one of the hardest phases of steel, providing exceptional resistance to the micro-pitting, adhesive wear, and abrasive wear that degrades oil pump gear surfaces under high-load, high-speed operation. Unlike case hardening or nitriding processes that can introduce dimensional distortion, Boundary’s MartenWear treatment is applied after final machining to maintain the gear’s precise dimensional tolerances — delivering both the hardness of a treated surface and the dimensional accuracy of a precision-machined billet component. The result is a gear set that maintains its original clearances and efficiency far longer than untreated billet or factory sintered gears under the demanding conditions of a high-performance 2JZ build.

Why Upgrade the 2JZ Oil Pump Gears?

The Toyota 2JZ’s factory oil pump uses sintered powder metal gears — an adequate solution for a stock engine at stock operating conditions, but increasingly marginal as power output, RPM ceiling, and boost pressure increase with performance modifications. At the sustained high-RPM operation of a built 2JZ — particularly in high-boost GTE applications targeting 600+ horsepower — factory sintered gears can wear, cavitate, and lose volumetric efficiency, resulting in reduced oil pressure at the conditions where the engine needs it most. The consequences of inadequate oil pressure in a high-power 2JZ build are severe: bearing wear, spun bearings, and catastrophic engine failure. Boundary’s billet MartenWear-treated gear set addresses this failure mode directly — providing the precision, hardness, and durability that a serious 2JZ build demands from its oiling system.

The Toyota 2JZ Platform:

The Toyota 2JZ is one of the most celebrated and capable inline-six engines ever produced — a 3.0-litre unit available in naturally aspirated (2JZ-GE) and twin-turbocharged (2JZ-GTE) configurations, renowned for its robust bottom end, strong factory internals, and exceptional power potential. The 2JZ-GTE’s cast iron block, forged crankshaft, and conservative factory tune have made it the foundation for some of the most extreme turbocharged builds in motorsport history — with well-documented examples exceeding 1,000 horsepower on the factory block. At these power levels, every component of the oiling system must perform flawlessly — making Boundary’s precision billet MartenWear gear set a critical investment in the reliability of a serious 2JZ build.

Why Boundary Engineering?

Boundary Engineering is the leading specialist in high-performance oil pump components for import and domestic performance platforms — with a product lineup covering Honda B/K/H-series, Mitsubishi 4G63/4B11, Subaru EJ/FA/FB, Toyota 2JZ, and many others. Their engineering focus on the oiling system — one of the most critical and often overlooked areas of performance engine building — has made them the trusted choice for professional engine builders and serious enthusiasts who understand that reliable oil pressure is the foundation of any high-performance engine build.

Perfect For:

• High-power 2JZ-GTE builds targeting 500+ horsepower where factory oil pump gear reliability is a concern
• 2JZ engine rebuilds where the oil pump gears are being upgraded as part of a complete oiling system refresh
• Naturally aspirated 2JZ-GE builds running high-RPM camshaft profiles where sustained high-RPM oil pump reliability is critical
• Any serious 2JZ build where the cost of an oiling system failure — a spun bearing or seized engine — far exceeds the cost of a preventive upgrade
• Professional engine builders who want Boundary’s MartenWear-treated billet precision in their 2JZ builds

Pro Tip: Pair with a Boundary Engineering oil pump housing inspection or replacement for a complete oiling system upgrade. Worn or scored oil pump housing bores increase internal leakage regardless of gear quality — a new gear set in a worn housing will not deliver the full benefit of the upgrade. Measure housing clearances before installation and replace the housing if clearances are out of specification.

Note: Professional installation strongly recommended. Verify oil pump housing clearances before installation. Confirm fitment with Boundary Engineering for your specific 2JZ application before ordering.
