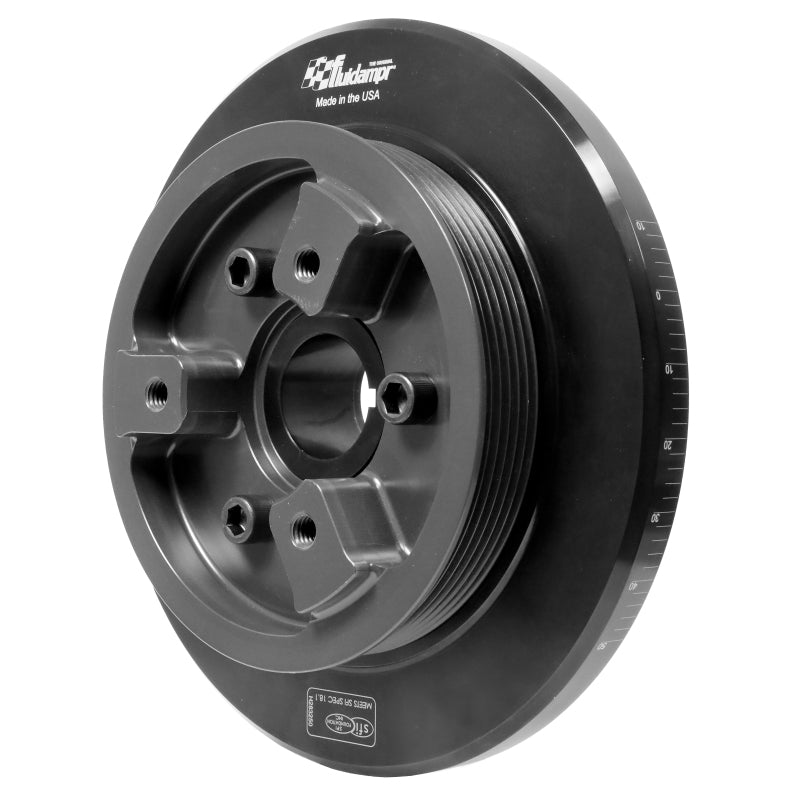

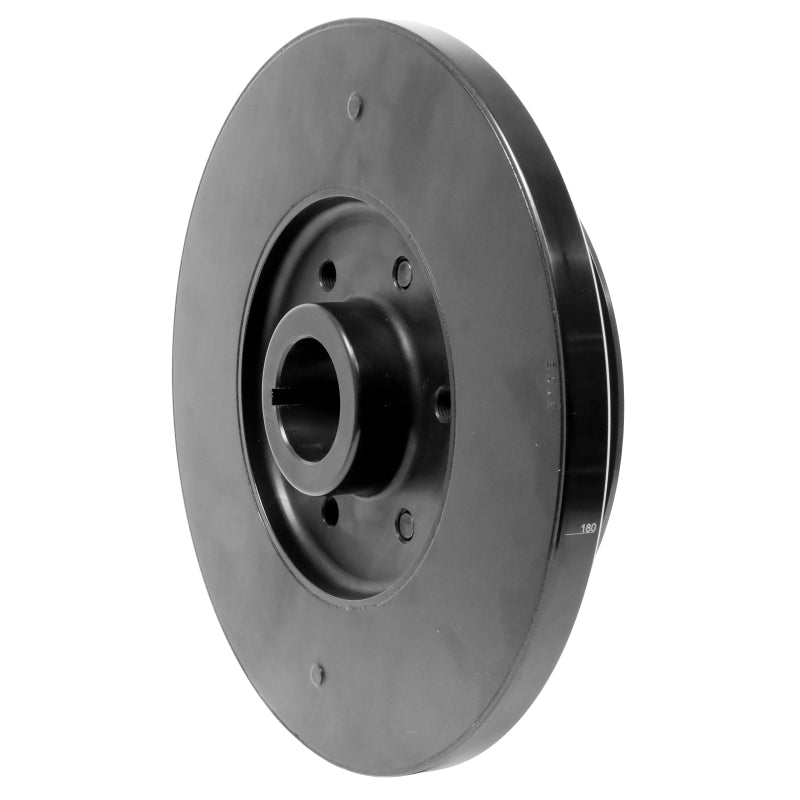

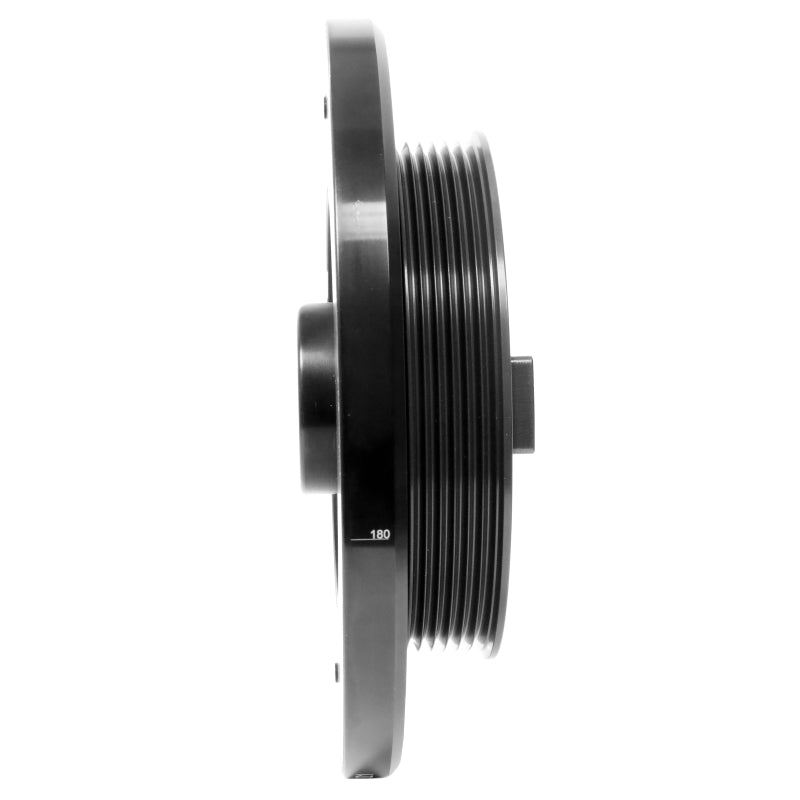

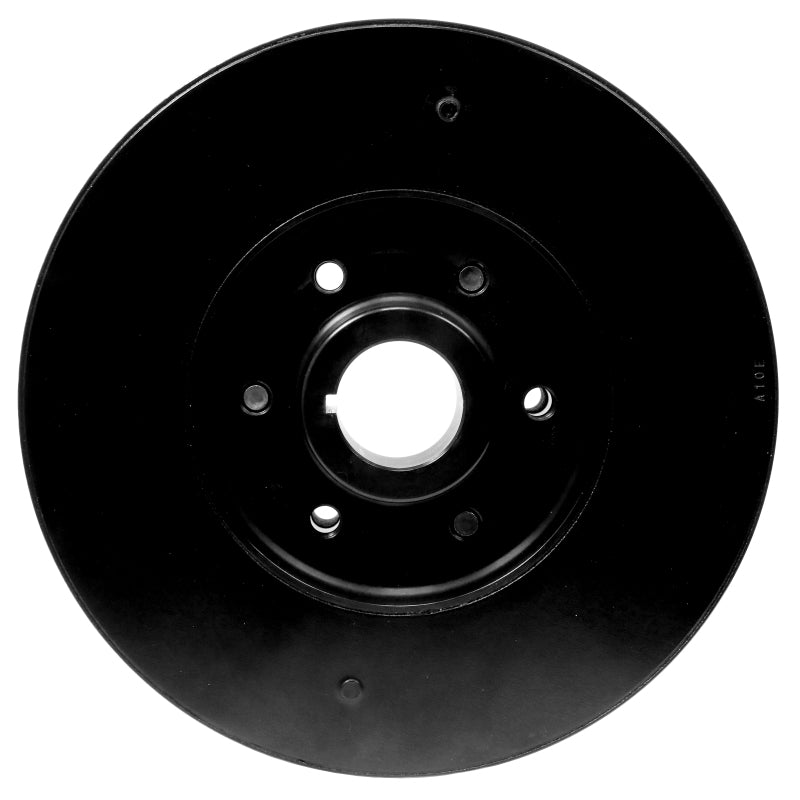

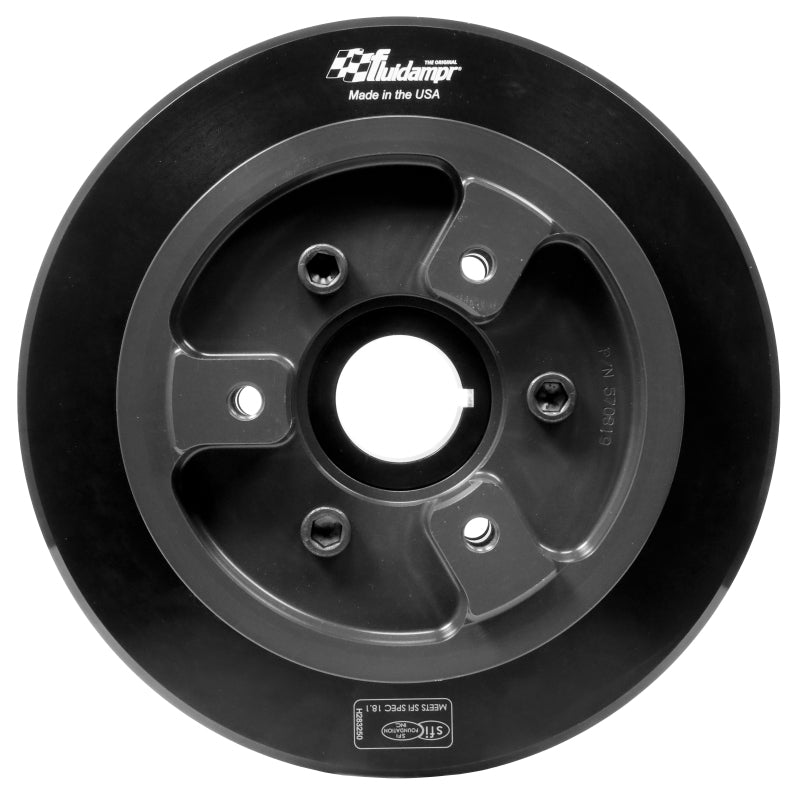

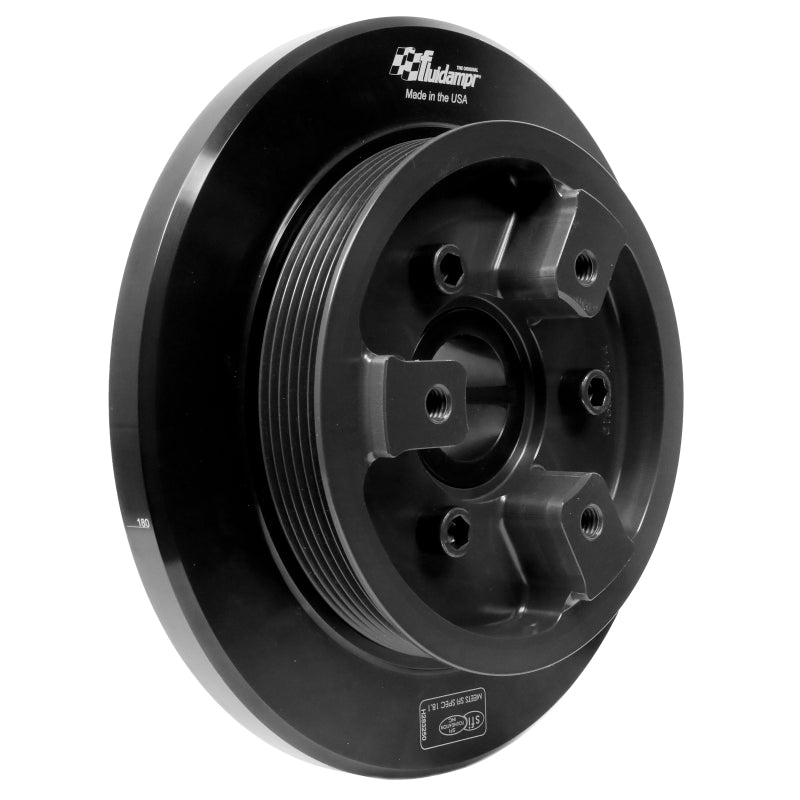

Fluidampr Steel Internally Balanced Viscous Damper – Toyota 1JZ / 2JZ I6 | 8.5" Diameter | Dry Sump Pulley | SFI 18.1 | 840821

The Fluidampr 840821 is the race-spec crankshaft damper for the Toyota 1JZ and 2JZ inline-six — built for high-performance street, circuit racing, drag racing, and any application where the 1JZ/2JZ is being pushed well beyond its factory operating envelope. The 840821 is the dry sump variant of Fluidampr’s 1JZ/2JZ damper, featuring an integrated pulley for driving a dry sump oil pump — making it the correct choice for any 1JZ/2JZ build running a dry sump lubrication system. At 8.5" in diameter, the larger inertia ring provides greater damping mass than a standard-diameter damper, delivering more effective torsional vibration control at the extreme RPM levels and power outputs that serious 1JZ/2JZ builds operate at. SFI 18.1 certified — sanctioned for competition use.

Why the 1JZ/2JZ Needs a Fluidampr at High Power Levels

The Toyota 1JZ-GTE and 2JZ-GTE are legendary for their strength and tunability — but every crankshaft, regardless of how robust, experiences torsional vibration from the firing pulses of the engine. At the power levels and RPM ceilings that serious 1JZ/2JZ builds operate at — 500, 700, 1,000+ horsepower on a built 2JZ — the torsional loads on the crankshaft are far beyond anything the factory damper was designed to manage. The factory elastomer damper is tuned for the stock engine’s resonant frequency and stock power output. Increase torque, raise the RPM ceiling, change the rotating assembly, or run a high-boost single turbo setup, and the factory damper’s effectiveness degrades rapidly — leaving the crankshaft, main bearings, rod bearings, and accessory drive exposed to uncontrolled harmonic vibration that accelerates wear and increases the risk of crankshaft fatigue failure.

Fluidampr’s viscous damping technology controls torsional vibration across the entire RPM range — not just the narrow frequency band the factory elastomer was tuned for. A sealed chamber of calibrated silicone fluid surrounds the inertia ring; the fluid’s viscous shear resistance absorbs torsional energy continuously, regardless of RPM, power output, or rotating assembly configuration. No tuning band, no rubber to degrade, no loss of effectiveness as the build evolves.

Key Features

• Dry Sump Pulley Integrated: The 840821 is the dry sump variant — it includes an integrated pulley for driving a dry sump oil pump. This is the correct damper for any 1JZ/2JZ build running a dry sump lubrication system. If your build uses a wet sump, verify you need the dry sump variant before ordering
• 8.5" Diameter – Increased Inertia Mass: The larger 8.5" diameter inertia ring provides greater damping mass than a standard-diameter damper — delivering more effective torsional vibration control at the high RPM levels and extreme power outputs of serious 1JZ/2JZ builds. More inertia mass means more energy absorption capacity and more consistent damping under sustained high-load operation
• Viscous Damping – Full RPM Range Protection: Calibrated silicone fluid viscous damping technology controls crankshaft torsional vibration across the entire RPM range — from idle to redline. Effective regardless of changes to power output, boost level, or rotating assembly configuration. No narrow tuning band, no degradation over time
• Internally Balanced: Incorporates internal balance weights replicating the factory damper’s balance contribution — installs as a direct replacement without requiring rotating assembly rebalancing. Essential for builds where a full rotating assembly teardown for rebalancing is not practical
• SFI 18.1 Certified: Meets SFI Specification 18.1 for harmonic dampers — sanctioned for competition use in SFI-governed racing series. Required for many sanctioned drag racing and circuit racing classes. The SFI certification also confirms the damper meets rigorous structural integrity standards for high-RPM, high-power operation

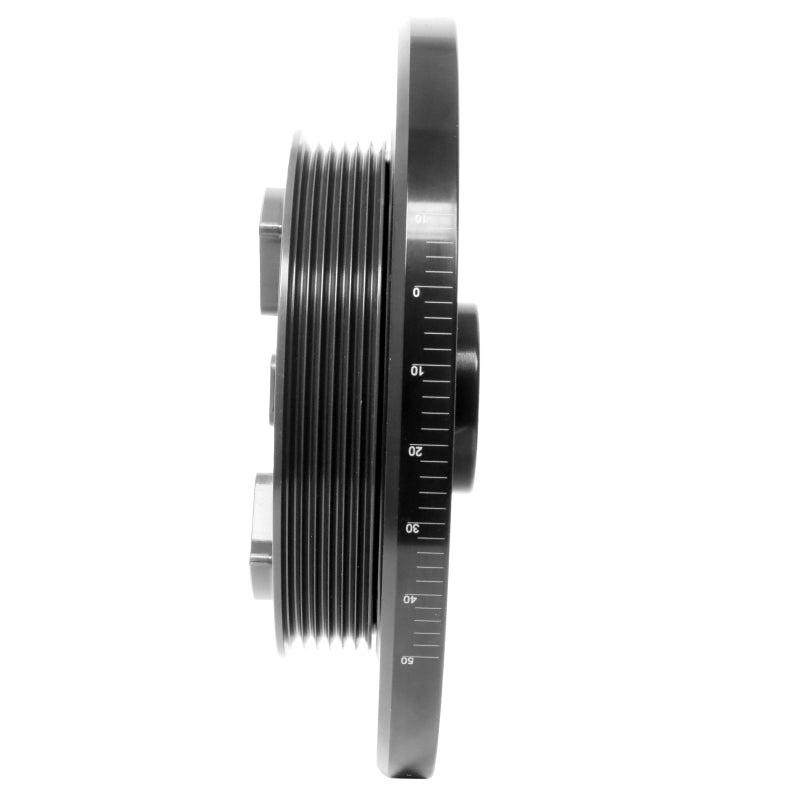

• Precision CNC Machined Steel: High-grade steel construction, precision CNC machined and balanced — maintaining accurate concentricity and dimensional stability under the thermal and mechanical loads of race-level operation. Corrosion-resistant black zinc finish with engraved timing marks for accurate ignition timing reference
• No Maintenance Required: The sealed viscous fluid chamber requires no servicing or fluid replacement over the life of the damper — unlike some elastomer dampers that require periodic inspection and replacement as the rubber degrades
• Made in USA: Designed and manufactured in the United States. Trusted by leading professional engine builders and race teams worldwide for 1JZ/2JZ applications at the highest levels of competition

Fitment

• Toyota 1JZ-GTE — Twin Turbo I6 (1990–2005)
• Toyota 1JZ-GE — Naturally Aspirated I6 (1990–2005)
• Toyota 2JZ-GTE — Twin Turbo I6 (1991–2002)
• Toyota 2JZ-GE — Naturally Aspirated I6 (1991–2005)

This is the dry sump pulley variant — designed for builds running a dry sump lubrication system. Verify your build requires the dry sump variant before ordering. Confirm the 840821 is the correct part number for your specific application and engine configuration using Fluidampr’s fitment guide before purchasing.

Specifications

• Brand: Fluidampr
• Part Number: 840821
• Type: Viscous Crankshaft Damper
• Construction: Steel
• Diameter: 8.5"
• Balance: Internally Balanced
• Pulley: Dry Sump Pulley Integrated
• Damping Technology: Calibrated Silicone Fluid Viscous
• Finish: Black Zinc with Engraved Timing Marks
• Certification: SFI 18.1
• Maintenance: None Required
• Origin: Made in USA

Installation Note: Use a proper harmonic damper installation tool — never drive the damper onto the crankshaft snout with a hammer or impact, as this will damage the crankshaft thrust bearing. Torque the crankshaft bolt to the manufacturer’s specification. Verify dry sump pulley alignment with your dry sump pump drive before finalising installation. Professional installation by an experienced engine builder is strongly recommended for this application.
