GReddy Front Mount Intercooler Kit – Toyota Crown JZS171

Unlock the full potential of your JZS171 Toyota Crown’s 2JZ with the GReddy Front Mount Intercooler Kit. Engineered specifically for the JZS171 Crown chassis, this complete FMIC kit replaces the factory top-mount intercooler with a larger, more efficient front-mount core — reducing intake air temperatures, increasing charge density, and giving your 2JZ the cooler, denser air it needs to make more power safely. A rare, application-specific kit from one of Japan’s most trusted performance brands.

Key Features:

• Front mount intercooler (FMIC) upgrade — replaces the factory top-mount for superior cooling efficiency
• Application-specific engineering — designed specifically for the Toyota Crown JZS171 chassis
• Complete kit — includes intercooler core, all piping, couplers, clamps, and mounting hardware
• Larger core volume than OEM — significantly increased cooling capacity for modified 2JZ builds
• GReddy quality construction — engineered and manufactured to GReddy’s motorsport-grade standards
• Bolt-on fitment — designed to install without cutting or major fabrication

Performance Benefits:

• Reduced Intake Air Temperatures: Front mount positioning exposes the intercooler core to maximum ambient airflow, dramatically reducing charge temperatures versus the factory top-mount
• Increased Charge Density: Cooler air is denser air — more oxygen per volume means more fuel can be burned for increased power output
• Heat Soak Resistance: FMIC placement away from the engine bay eliminates the heat soak that plagues top-mount intercoolers during sustained hard driving
• Tuning Headroom: Lower, more consistent intake temperatures allow your tuner to run more aggressive timing and boost maps safely
• Complete Solution: Full kit eliminates the need to source individual components — everything required for installation is included

Specifications:

• Brand: GReddy
• Part Number: GRE12010467
• Type: Front Mount Intercooler Kit (FMIC)
• Application: Toyota Crown JZS171
• Engine: 2JZ-GTE (twin-turbo inline-six)
• Kit Contents: Intercooler core, charge piping, couplers, clamps, mounting hardware
• Origin: Japan

Fitment Information:

• Toyota Crown JZS171 — 2JZ-GTE engine
• Note: Verify your specific Crown variant and engine configuration before ordering
• Installation: Professional installation strongly recommended
• Tuning: ECU retune strongly recommended after installation to take full advantage of reduced intake temperatures

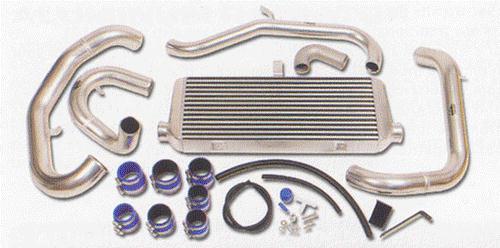

What’s Included:

• GReddy front mount intercooler core
• Charge piping (all sections)
• Silicone couplers
• Clamps and mounting hardware
• Installation instructions

Installation Notes:

• Professional installation strongly recommended
• ECU retune recommended after installation for optimal performance
• Inspect all couplers and clamps for leaks after installation
• Allow system to reach operating temperature and re-inspect all connections
• Boost leak test recommended before tuning

Front Mount vs. Top Mount Intercooler:

The factory JZS171 Crown uses a top-mount intercooler positioned directly above the engine — a compact solution that works adequately at stock power levels but suffers from heat soak during sustained hard driving. As the engine bay heats up, the top-mount intercooler absorbs radiant heat from the engine, reducing its cooling efficiency precisely when you need it most. A front mount intercooler relocates the core to the front of the vehicle where it receives a constant supply of cool ambient air, maintaining consistent charge temperatures regardless of how hard you drive. The result is more consistent power, better heat soak resistance, and significantly more tuning headroom.

The JZS171 Crown Platform:

The Toyota Crown JZS171 (1999–2003) is one of the most underrated 2JZ platforms in the JDM performance world. Powered by the same 2JZ-GTE twin-turbo inline-six found in the legendary Supra JZA80, the Crown Athlete V packages that engine in a full-size luxury sedan body — making it a sleeper build platform with enormous power potential. The 2JZ-GTE’s legendary strength and tunability mean the JZS171 can support massive power levels with the right supporting modifications, and a proper front mount intercooler is one of the most important steps in that build.

Why GReddy?

GReddy (Trust Co., Ltd.) has been engineering performance parts for Japanese platforms since 1977. Their intercooler kits are application-specific — not universal cores with adapted piping — meaning every component is designed to fit and function correctly on the target vehicle. For a niche platform like the JZS171 Crown, GReddy’s application-specific engineering is particularly valuable, as aftermarket support for this chassis is limited.

Perfect For:

• Toyota Crown JZS171 owners building a high-power 2JZ-GTE setup
• JZS171 builds seeking consistent intake temperatures for reliable power gains
• Enthusiasts upgrading from the factory top-mount intercooler for improved heat soak resistance
• 2JZ builds targeting higher boost levels where charge cooling becomes critical
• JDM sleeper builds leveraging the Crown’s 2JZ-GTE for serious performance

Pro Tip: Boost leak test the entire charge piping system before tuning. A single loose coupler can mask the true performance gains of the intercooler upgrade and cause dangerous lean conditions under boost.

Note: ECU retune strongly recommended after installation. Running factory maps with significantly reduced intake temperatures leaves power on the table and may not be optimally safe for your specific build.
