GKTech In-Line E-Brake Braided Brake Line Kit – Budget Hydraulic Handbrake | BUDG-ILNE

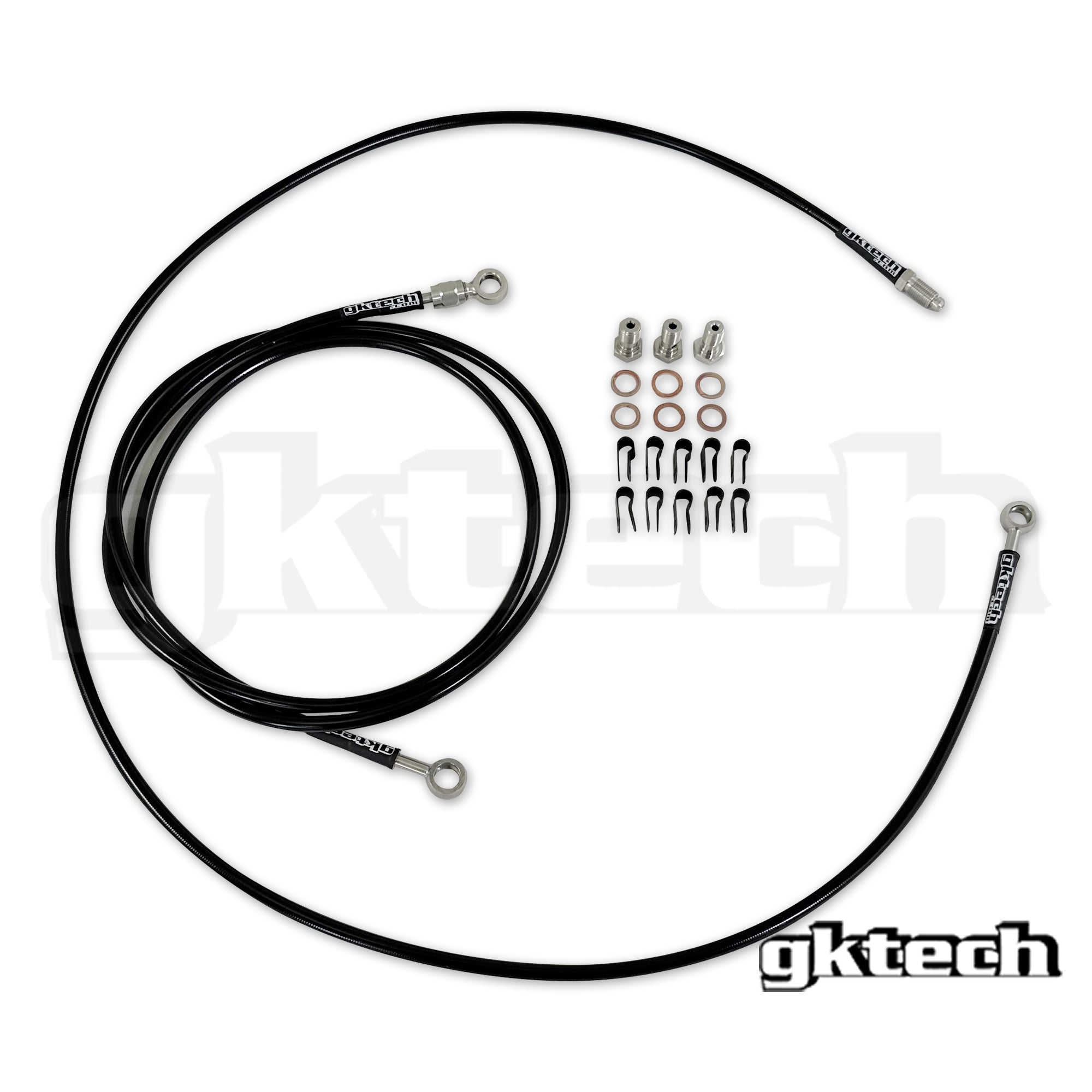

GKTech’s in-line e-brake braided brake line kit — designed for use with GKTech’s budget hydraulic handbrake system and compatible in-line e-brake setups. Stainless steel braided lines with PTFE inner liner and PVC outer protection, assembled in-house by GKTech in Australia using stainless steel fittings. For race and performance use only. Cannot be installed on vehicles with ABS still fitted — compatible with GKTech’s ABS delete kit (sold separately). No permanent modifications required for installation.

Fitment & Configuration Options

Four configuration variants are available — select the correct one for your handbrake mount position and steering configuration:

• In Front of Shifter — LHD: Handbrake lever mounted in front of the shifter (shorter lines required), left-hand drive vehicle
• In Front of Shifter — RHD: Handbrake lever mounted in front of the shifter (shorter lines required), right-hand drive vehicle
• Behind Shifter — LHD: Handbrake lever mounted behind the shifter (e.g. GKTech hidden handbrake or budget hydraulic handbrake with lever mounted horizontally), left-hand drive vehicle
• Behind Shifter — RHD: Handbrake lever mounted behind the shifter (e.g. GKTech hidden handbrake or budget hydraulic handbrake with lever mounted horizontally), right-hand drive vehicle

If your handbrake is mounted in front of the shifter, select the “in front” variant. If mounted behind the shifter or horizontally (hidden handbrake), select the “behind shifter” variant. LHD/RHD is self-explanatory based on your vehicle’s market.

Technical Specifications

• Master Cylinder Compatibility: Designed for master cylinders with a 3/8‒24 threaded outlet and a 7/16‒20 outlet — as used in GKTech’s budget e-brake kit. Confirm your master cylinder thread specifications before ordering
• Construction: Stainless steel braided outer sleeve with PTFE (Teflon) inner liner and PVC outer protective jacket. Stainless steel end fittings. Assembled in-house by GKTech in Australia
• Compatibility: Designed for use with your existing brake calipers — these are hydraulic e-brake feed lines, not replacement brake lines for the main brake circuit
• ABS: Cannot be installed on vehicles with ABS still fitted. Compatible with GKTech ABS delete kit (sold separately)
• Permanent Modifications: None required for installation

Key Features

• Stainless Braided / PTFE Construction: Dimensionally rigid under hydraulic pressure — consistent, predictable e-brake engagement with no line expansion or spongy feel. PTFE liner is chemically resistant to brake fluid and does not degrade over time
• GKTech In-House Assembly: Assembled by GKTech in Australia using stainless steel fittings and quality braided line — not sourced from generic off-the-shelf fittings
• LHD and RHD Options: Correct routing for both left-hand and right-hand drive vehicles
• In-Front and Behind-Shifter Options: Correct line length for both handbrake mount positions — no trimming or modification required
• GKTech Ecosystem: Designed as a direct complement to GKTech’s budget hydraulic handbrake and hidden handbrake systems

Compatible Vehicles

• Nissan 240SX S13 — KA24 Coupe and Hatch
• Nissan Silvia S13 — SR20
• Nissan 240SX S14 / Silvia S14
• Nissan Silvia S15
• Nissan Skyline R32 — GTR and GTS-T
• Nissan Skyline R33 — GTR and GTS-T
• Nissan Skyline R34 — GT-T and GTR
• Nissan Laurel C33 / C34 / C35
• Nissan Cefiro A31

For race and performance use only. Cannot be installed on vehicles with ABS still fitted — ABS must be deleted before installation (GKTech ABS delete kit sold separately). Verify your master cylinder thread specification (3/8‒24 and 7/16‒20) before ordering. Select the correct configuration (in-front vs. behind shifter, LHD vs. RHD) for your specific handbrake mount position and vehicle. Professional installation recommended. Bleed the hydraulic handbrake circuit after installation and check all fittings for leaks before use.

Specifications

• Brand: GKTech
• Part Number: BUDG-ILNE
• Construction: Stainless Steel Braided / PTFE Inner Liner / PVC Outer
• Fittings: Stainless Steel
• Master Cylinder Thread: 3/8‒24 inlet, 7/16‒20 outlet
• Application: Nissan S13 / S14 / S15 / R32 / R33 / R34 / Laurel C33-C35 / Cefiro A31
• Assembly: GKTech, Australia
