GrimmSpeed Downpipe-to-Catback Gasket | 3" | 2-Bolt | 2X Thick | Universal | 076001
GrimmSpeed Downpipe-to-Catback Gasket – 3" | 2-Bolt | 2X Thick | Universal | 076001
Universal fitment — not vehicle-specific. Fits any aftermarket exhaust system with a 3-inch bore, 2-bolt flange downpipe-to-catback connection. Confirm your downpipe and catback both use a 3-inch 2-bolt flange before ordering. 2X thick specification — see below for when to choose 2X thick vs standard thickness.

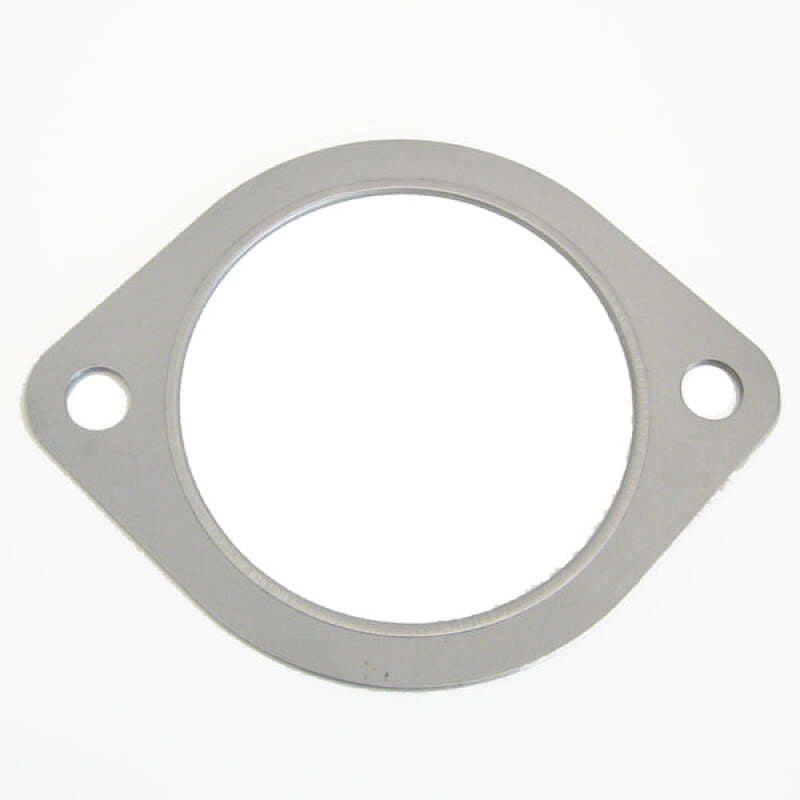

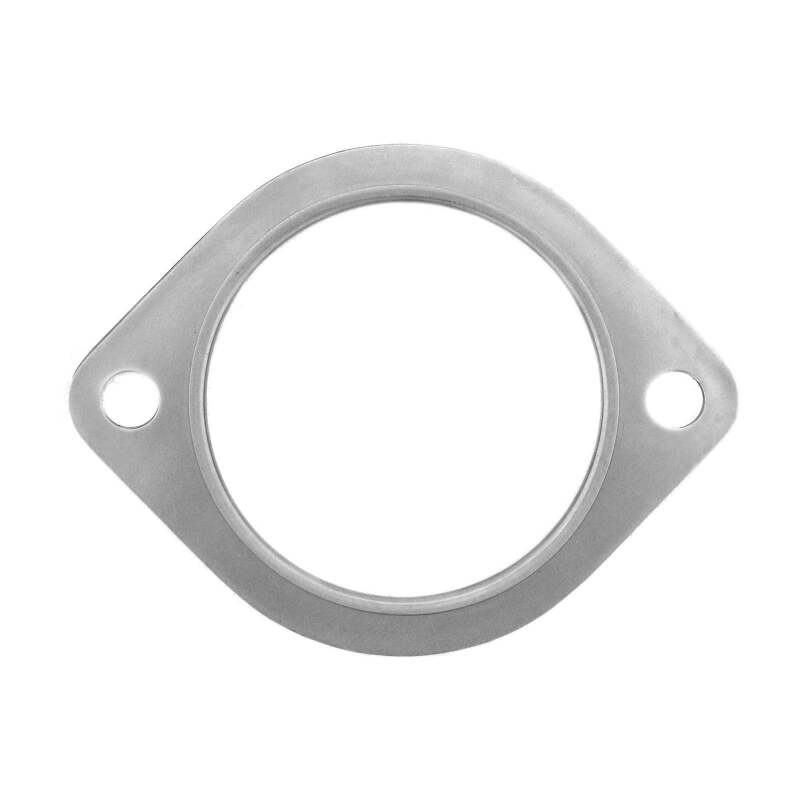

GrimmSpeed 076001 downpipe-to-catback gasket, 3-inch bore, 2-bolt flange, double (2X) thickness. A universal exhaust gasket for the most common aftermarket downpipe-to-catback flange interface in the performance exhaust market. Suitable for any vehicle running a 3-inch 2-bolt downpipe and catback combination — most commonly Subaru WRX, STI, and similar JDM-platform builds running aftermarket exhaust systems. 0.2 lbs. Ships fast across Canada and the US.
3-Inch 2-Bolt Flange — The Aftermarket Standard
The 3-inch 2-bolt downpipe-to-catback flange is the most prevalent connection spec in the aftermarket performance exhaust space for Subaru and JDM-adjacent builds. Most aftermarket downpipes from GrimmSpeed, Invidia, Agency Power, Perrin, and similar brands terminate in a 3-inch 2-bolt outlet flange. Most aftermarket catback systems in the same ecosystem use a matching 3-inch 2-bolt inlet flange. This gasket seals that junction. Before ordering, confirm both your downpipe outlet and catback inlet are 3-inch 2-bolt — some catback systems use a 3-bolt or V-band connection instead.
When to Choose 2X Thick
The 2X thick gasket provides twice the compressed thickness of a standard-thickness downpipe-to-catback gasket. The standard thickness is appropriate for flange faces in good condition on a first or routine installation. The 2X thick 076001 is the correct choice when:
- Flange warping or surface damage: The downpipe outlet or catback inlet flange has developed a warp or surface irregularity from heat cycling, over-torquing, or mechanical damage that a standard gasket cannot bridge reliably.
- Repeat failure: A standard-thickness gasket has been installed and failed at the same location — an indicator that flange condition warrants the additional thickness.
- High-cycle applications: The downpipe-to-catback joint is disturbed frequently (catback swaps, downpipe removal for track preparation) and the additional material provides a higher-confidence seal through more reassembly cycles.
Common Applications
Most commonly used with Subaru WRX (EJ205/EJ255/FA20DIT), WRX STI (EJ257), and similar 3-inch 2-bolt aftermarket exhaust systems. Also applicable to Mitsubishi Evo, Mazdaspeed, and any other platform running a 3-inch 2-bolt aftermarket downpipe-to-catback configuration. Confirm flange spec for your specific combination.
Universal fitment — confirm 3-inch bore and 2-bolt flange on both downpipe and catback before ordering. Single gasket. Do not reuse after flange separation.
Specifications
- Brand: GrimmSpeed
- Part Number: 076001
- Type: Downpipe-to-catback gasket
- Bore: 3 inches
- Flange: 2-bolt
- Thickness: 2X (double thickness)
- Fitment: Universal — 3-inch 2-bolt flange
- Sold as: Single gasket
- Weight: 0.2 lbs
