Radium Engineering 52 mm Fuel Level Gauge, 0–90 Ohm | 20-1847

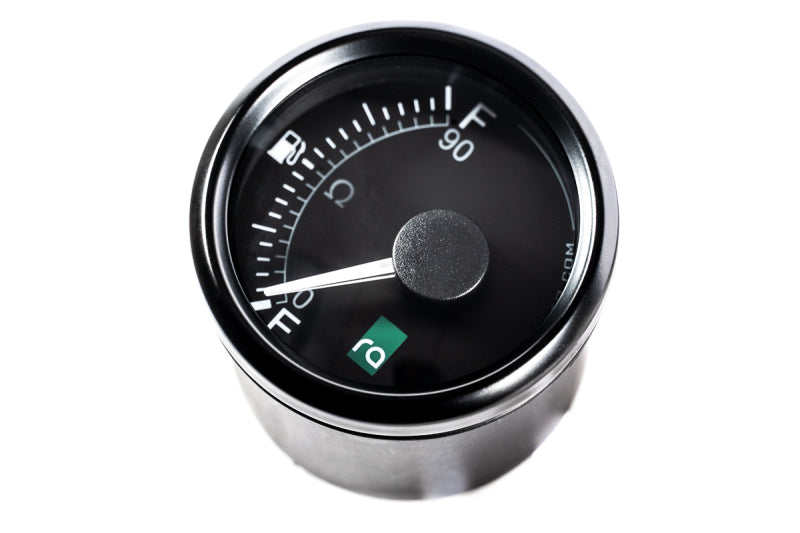

The Radium Engineering 20-1847 fuel level gauge displays EMPTY to FULL and the corresponding 0–90 ohm measurement from a compatible fuel level sender. It mounts in a 52 mm hole and combines a black face and bezel with eight selectable illumination colours. Ships fast across Canada and the US.

Display and Lighting

• Displays fuel level from EMPTY to FULL.
• Displays the corresponding 0–90 ohm measurement.
• LED backlighting with eight selectable colours: white, amber, yellow, rust, purple, red, green and blue.
• Change illumination colour using the gauge button.
• Black bezel and black face.

Specifications

• Brand: Radium Engineering.
• Manufacturer part number: 20-1847.
• Gauge type: fuel level.
• Mounting-hole diameter: 52 mm.
• Sender range: 0–90 ohms.
• Signal direction: 0 ohms empty, 90 ohms full.
• Connection: removable four-pin connector.

Compatibility and Mounting

Compatible with Radium fuel level senders and other senders using the required 0–90 ohm output. Electrical compatibility depends on the sender rather than the vehicle make or model. This gauge does not provide a universal conversion for other resistance ranges.

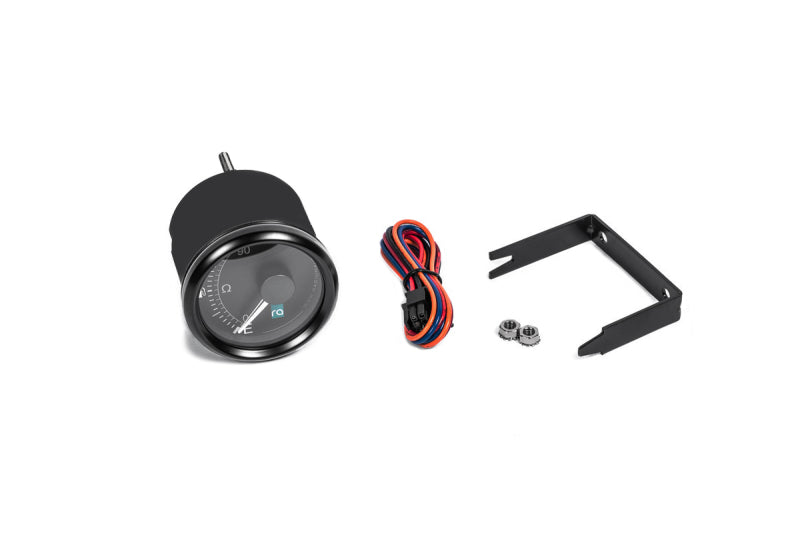

The removable four-pin connector simplifies connection and servicing. Check the mounting location, gauge retention and wiring clearance before installation. Radium offers the separate 20-2585 bracket for mounting a gauge at the perimeter of a compatible Radium fuel cell; that bracket is not included in this gauge listing.

Installation Notes

Follow Radium's wiring instructions for the exact gauge and sender combination. Verify the sender's empty and full readings and correct gauge operation before relying on the fuel indication. The gauge reports the sender signal; it does not correct an incorrectly sized, obstructed or incompatible sender.
