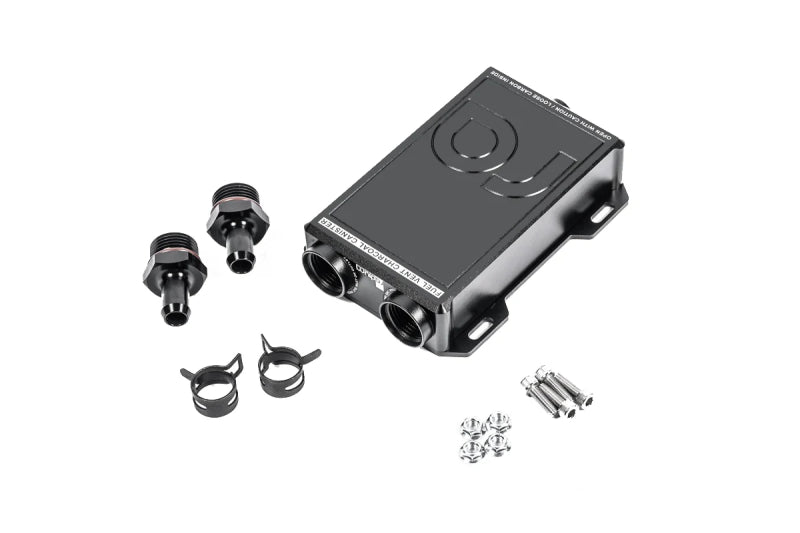

Radium Engineering Compact Fuel Vent Charcoal Canister – 8AN Vent Hose | Universal

Eliminate unwanted fuel vapors from your fuel tank or fuel cell with the Radium Engineering Compact Fuel Vent Charcoal Canister. This canister installs in-line with the fuel tank or fuel cell vent hose and uses activated carbon to effectively trap fuel vapors — preventing the fuel smell that builds up when a vehicle is stored in an enclosed garage or trailer — without impeding airflow through the vent system. Compact machined aluminum construction fits into tight spaces without sacrificing functionality, and the fully serviceable design allows the activated carbon to be replaced when needed.

Key Features

• Activated Carbon Vapor Trapping: Activated carbon media effectively captures fuel vapors from the tank or fuel cell vent — eliminates fuel smell in enclosed garages, trailers, and storage spaces without restricting vent airflow
• 8AN Vent Hose Compatible: Includes hose barb adapter fittings for connection to 8AN (1/2") vent hose — installs in-line with existing vent hose routing
• 10AN ORB Female Ports: Two 10AN ORB (O-Ring Boss) female ports for vent hose in/out connections — included 8AN hose barb adapters thread into these ports
• Compact Machined Aluminum: Compact machined aluminum construction fits into small spaces without losing functionality — approximately 5.25 x 3.25 x 1.28 inches
• Fully Serviceable: Designed for long-term use — activated carbon media can be replaced when saturated for continued vapor trapping performance
• Universal Fitment: Compatible with any fuel tank or fuel cell vent system using 8AN vent hose
• Radium Engineering Quality: Manufactured by Radium Engineering — a trusted name in precision fuel system components for performance and motorsport applications

Specifications

• Type: Fuel Vent Charcoal Canister (Compact)
• Media: Activated Carbon
• Ports: 2x 10AN ORB Female
• Vent Hose: 8AN (1/2") — hose barb adapters included
• Material: Machined Aluminum
• Dimensions: Approx. 5.25 x 3.25 x 1.28 inches
• Serviceable: Yes
• Fitment: Universal — any fuel tank or fuel cell vent system
• Part Number: 20-1827-08

Note: Installs in-line with the fuel tank or fuel cell vent hose — not a direct OEM replacement for factory evaporative emission (EVAP) canisters. For race and off-road use. Verify vent hose size and port compatibility before ordering. Replace activated carbon media when vapor trapping performance diminishes.
