Turbosmart Boost Reference Adapter | Ford Mustang EcoBoost 2015+ | Black | TS-0720-1004
Turbosmart Boost Reference Adapter – Ford Mustang EcoBoost 2015+ | Black | TS-0720-1004
Fits 2015+ Ford Mustang EcoBoost 2.3T (S550 generation). Provides a secondary boost reference port without modifying or compromising OEM boost sensor connections or diverter valve reference lines. Required for aftermarket BOV, blow-off valve, boost gauge, or boost controller installations on the EcoBoost Mustang. Black anodised finish.

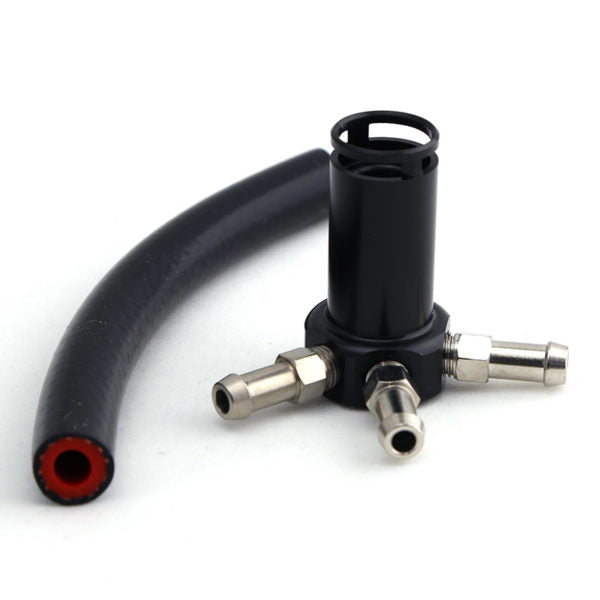

Turbosmart TS-0720-1004 Boost Reference Adapter (BRA) for the 2015+ Ford Mustang EcoBoost 2.3T (S550). A vehicle-specific adapter fitting engineered to provide a clean, reliable secondary boost reference port on the EcoBoost Mustang’s charge system — without cutting into factory boost lines, interfering with OEM sensor signals, or causing boost leaks. 0.25 lbs. Ships fast across Canada and the US.
Why You Need a Boost Reference Adapter
The 2015+ EcoBoost Mustang’s factory boost reference circuit is used by the OEM diverter valve and boost/MAP sensing system. The factory boost reference ports are not designed with a secondary outlet for aftermarket accessories. Installing an aftermarket BOV, external boost gauge, boost controller, or any component requiring a boost reference signal on the EcoBoost Mustang requires tapping into the boost reference circuit. Doing this incorrectly — by cutting into factory boost lines, using generic T-fittings on OEM hoses, or disturbing the factory sensor reference ports — can cause boost leaks at the junction, alter the boost reference signal reaching the factory sensors (causing incorrect ECU readings, boost control instability, or fault codes), or create a leak point in the charge system that results in lost boost pressure under load.
Turbosmart’s BRA solves this with a vehicle-specific adapter machined to fit the exact factory boost reference location on the EcoBoost Mustang, providing a secondary port while leaving the factory sensor reference path completely intact and unaffected.
Preserves OEM Sensor and Control System Operation
The TS-0720-1004 is designed to maintain the factory boost reference signal path in full. The OEM MAP sensor, boost sensor, or diverter valve reference connection remains unchanged — the BRA adds a secondary port to the circuit rather than replacing or splitting the factory connection. The factory ECU continues to read accurate boost data, and OEM diverter valve operation is unaffected. No fault codes from sensor signal disruption.
Common Applications
The Turbosmart BRA is required or recommended for the following EcoBoost Mustang modifications:
- Aftermarket BOV/Blow-Off Valve: Turbosmart Kompact, Dual Port, or Plumb Back BOVs require a boost reference signal for the valve’s spring-loaded operation. The BRA provides the required reference port.
- Boost gauge installation: A boost gauge requires a boost reference source. The BRA provides a clean, reliable tap point.
- Boost controller: Electronic or manual boost controllers that reference boost pressure need a reference port. The BRA provides this without disturbing the factory signal.
- Any other boost-reference accessory requiring a secondary port on the EcoBoost Mustang charge system.
Vehicle-Specific Fit
Unlike generic T-fittings or universal boost reference taps, the Turbosmart BRA is machined specifically for the 2015+ S550 EcoBoost Mustang’s factory boost reference port geometry. Direct fit to the factory location — no fabrication, cutting, or improvised fittings required.
Fits 2015+ Ford Mustang EcoBoost 2.3T (S550). Black anodised finish. Confirm S650 (2024+) Mustang EcoBoost fitment separately before ordering.
Specifications
- Brand: Turbosmart
- Part Number: TS-0720-1004
- Type: Boost reference adapter (BRA)
- Finish: Black anodised
- Application: 2015+ Ford Mustang EcoBoost 2.3T — S550
- Weight: 0.25 lbs
