Turbosmart Kompact EM VR35 Blow Off Valve – Plumb Back | CF Moto Z-Force Z10 | TS-0223-1239

Fitment-specific BOV for the CF Moto Z-Force Z10 turbocharged UTV (963cc parallel-twin). Plumb-back configuration — vents recirculated air back into the intake. Confirm your Z10 model year and boost system configuration before ordering.

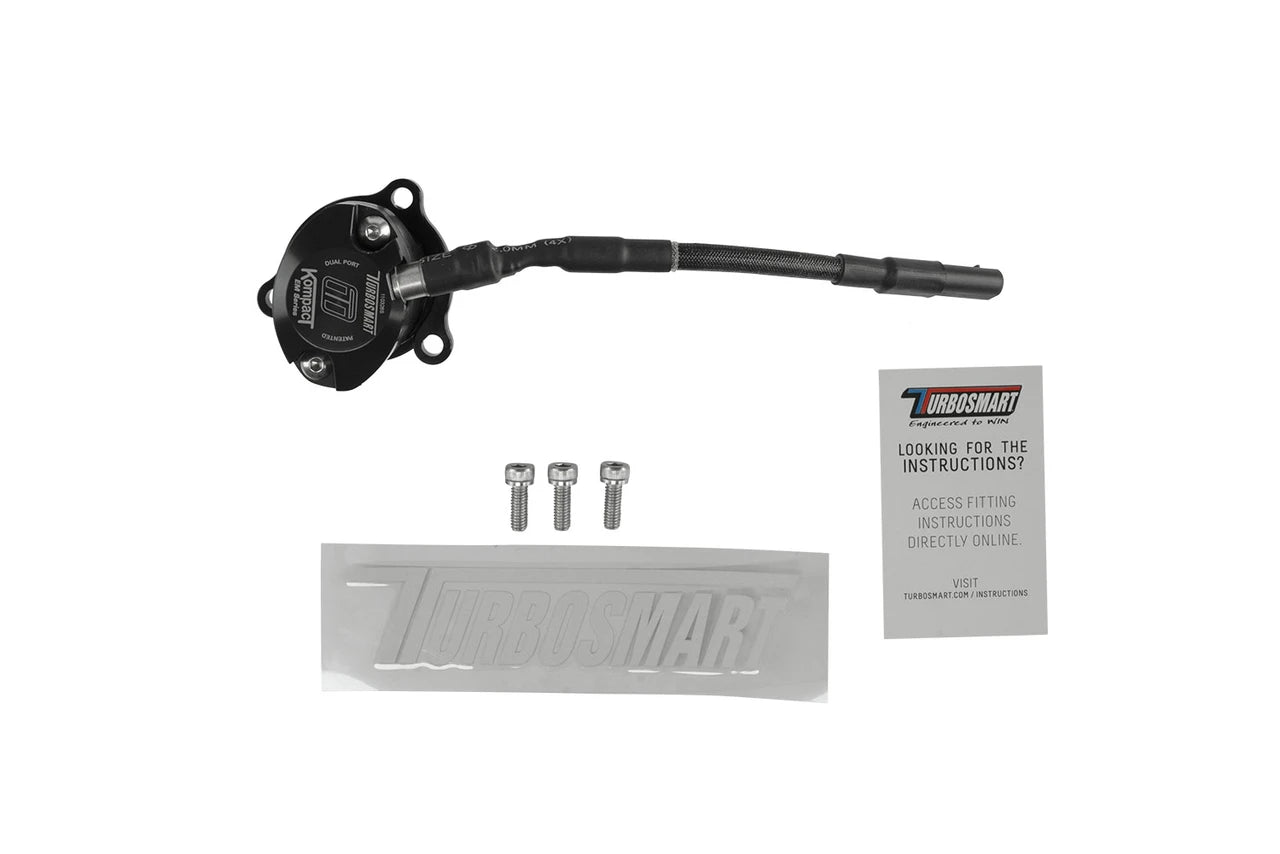

Turbosmart TS-0223-1239 Kompact EM VR35 blow off valve in plumb-back configuration, engineered specifically for the CF Moto Z-Force Z10 turbocharged side-by-side. Electronically managed solenoid actuation integrated with the Z10’s boost control system. Prevents compressor surge under throttle-lift events, protecting the turbocharger and improving boost response. 0.9 lbs. Ships fast across Canada and the US.

What a Blow Off Valve Does

On a turbocharged engine, closing the throttle rapidly under boost traps pressurised air between the throttle body and the turbo compressor outlet. This pressure spike forces air back through the compressor in reverse, causing the compressor wheel to stall — a condition known as compressor surge. Repeated surge events accelerate wear on the turbo’s thrust bearings and compressor wheel, and cause the characteristic flutter or chatter sound associated with an unprotected or improperly set-up turbo system. A blow off valve vents this trapped pressure when the throttle closes, allowing the compressor to continue spinning freely and spooling back up more quickly when the throttle reopens. On the CF Moto Z-Force Z10 — a high-output turbocharged UTV platform — a quality BOV is particularly important during aggressive trail riding and repeated throttle-on/off cycles where surge events would otherwise be frequent.

Kompact EM — Electronically Managed

The Kompact EM uses Turbosmart’s electronically managed solenoid actuation system (EM = Electronic Management). Unlike traditional BOVs that open and close purely in response to vacuum signal and spring pressure, the Kompact EM integrates with the Z10’s ECU boost control system via a solenoid, providing more precise and consistent actuation timing matched to the engine’s actual boost and throttle state. The result is more accurate surge protection across a wider range of operating conditions and boost levels without the tuning sensitivity of a purely mechanical setup.

VR35 Piston — Variable Response

The VR35 designation refers to Turbosmart’s Variable Response 35mm piston design used in this BOV. The 35mm piston provides appropriate flow capacity for the Z10’s 963cc turbo engine output, and the Variable Response design allows the piston to respond progressively to pressure differential rather than snapping fully open at a fixed threshold — providing smoother boost delivery and improved drivability at partial throttle.

Plumb Back — Closed Loop Recirculation

This BOV is configured for plumb-back (recirculation) operation — vented air is returned to the intake tract upstream of the turbo compressor inlet rather than being discharged to atmosphere. The CF Moto Z-Force Z10 uses mass airflow (MAF) sensor-based fuelling; venting to atmosphere on a MAF system discharges metered air that the ECU has already accounted for, causing a temporary rich condition and potential stalling or rough running on throttle reapplication. Plumb back maintains a closed system that keeps fuelling accurate. This is the correct BOV configuration for the Z10 and is required for stable street or trail operation.

Fits CF Moto Z-Force Z10 turbocharged UTV. Plumb-back configuration — not vent-to-atmosphere. Confirm Z10 model year and boost system compatibility before ordering. Professional installation recommended — boost system integrity must be verified after installation.

Specifications

• Brand: Turbosmart
• Part Number: TS-0223-1239
• Model: Kompact EM VR35
• Type: Blow off valve (BOV)
• Actuation: Electronically managed solenoid (EM)
• Piston: VR35 — Variable Response, 35mm
• Configuration: Plumb back (recirculation)
• Weight: 0.9 lbs
• Application: CF Moto Z-Force Z10 — 963cc parallel-twin turbo — UTV
